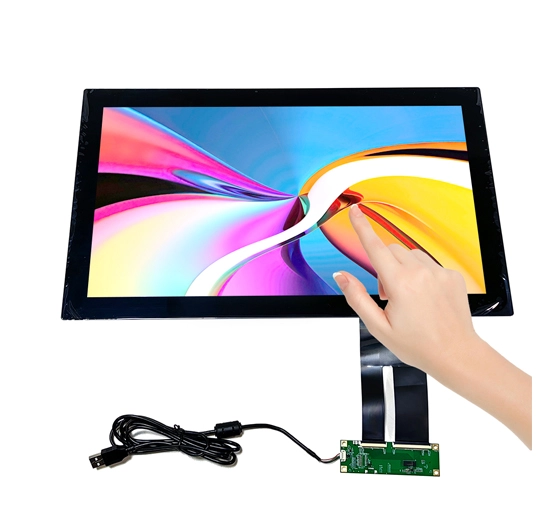

GGY18.5A-1.0 18.5 Inch Capacitive Touch Screen

ShenZhen Wu He Tian Cheng provides capacitive touch screens with G+G, G+F, G+F+F, G+P and other structures, supporting various customization requirements, including glass cover color LOGO silk screen, single point multi touch, cable shape, cover through-hole transparent hole IR hole, AG/AR/AF surface treatment, waterproof, glove style, etc. Suitable for various industrial control, medical, and facial recognition product fields.

Parameters of 18.5 Inch Capacitive Touch Screen

SizeModelOutline(mm)View Area(mm)Drive IC
18.5GGY18.5A-1.0456.7*277.2*4.35408.7*229



General Specifications of 18.5 Inch Capacitive Touch Screen

FeatureSpecificationsUnit
ModelGGY18.5A-1.0inch
Technology TypeG+G
Resolution4096 X4096
CTP (W x H x D) (mm)456.7*277.2*4.35mm
View Area(mm)408.7*229mm
Touch PanelCTP
Drive ICGT911nits
transmittance>80%
Surface hardness6Hg
InterfaceUSB
Operation Temperature-10~60
Storage Temperature-20~70
Module lifetime(Hours)50,000-100,000

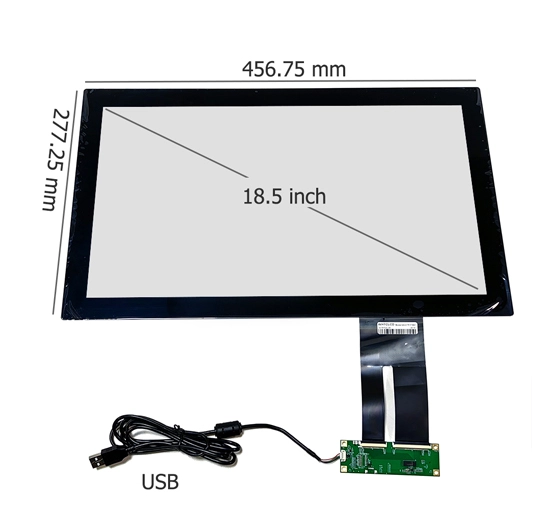

Structural Size of 18.5 Inch Capacitive Touch Screen

18.5 Inch Capacitive Touch Screen
