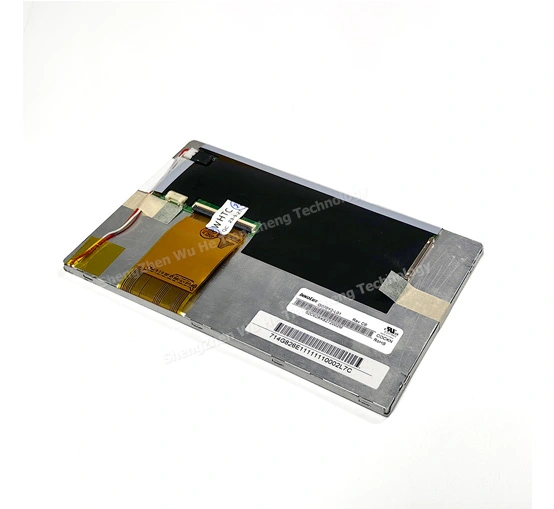

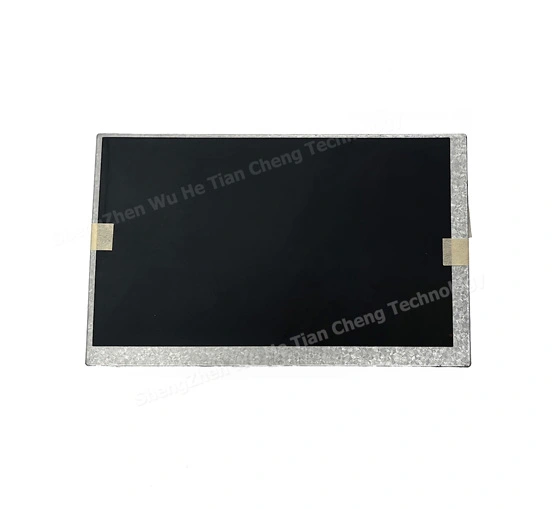

G070Y2-L01 7.0 Inch INNOLUX LCD Panel

Name: G070Y2-L01 7.0 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 7 inch tft lcd panel G070Y2-L01 with 800(RGB)x480 WVGA resolution, brightness 500 cd/m². This lcd display's working temperature is -30 ~ +85 (°C) and it's storage temperature is -40 ~ +95 (°C). Based on it's white LED backlight. This model is recommended for industrial use.

Industrial 7 inch 800x480 WVGA LCD Panel Original Innolux TFT LCD Display G070Y2-L01 With 500nits.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board and LVDS cables.

Products

Parameters of G070Y2-L01 7.0 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
7	800*480	G070Y2-L01	1651049.53	152.4*91.44	TN	LVDS	500	-30~85°C

General Specifications of G070Y2-L01 7.0 Inch INNOLUX LCD Panel

G070Y2-L01

Manufacturer	Innolux
Model Name	G070Y2-L01
Screen Size	7 inch
Pixel Number	800(RGB)×480, WVGA
Active Area(mm)	152.4 x 91.44 (H×V)
Outline(mm）	165 x 104 x 9.53 (H×V×D)
Pixel Pitch(mm)	0.1905 x 0.1905 (H×V)
Treatment	Anti-glare, Hard Coating ( 3H )
Luminance	500 cd/m² (Typ.)
Contrast Ratio	600 : 1 (Typ.) (TM)
Viewing Angle	70/70/60/60(CR≥10) Left / Right/UP /Down
Response time	5/11 (Typ.)(Tr/Td) ms
Display Mode	TN , Normally white , Transmissive
Color Depth	262K/16.7M , 72% NTSC
Backlight	WLED , 50K hours , with LED Driver
Net Weight	162g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit) , 20 pins
Voltage Supply	+3.3 V
Max. Ratings	Storage Temp.: -40 ~ +95 (°C)
Max. Ratings	Operating Temp.: -30 ~ +85 (°C)
Package	Innolux Original package;
	34 pcs/ctn;
	size : 465(L) x 362(W) x 314(H) mm
