MPI2411 2.4 Inch Raspberry Pi LCD

Name: MPI2411 2.4 Inch Raspberry Pi LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

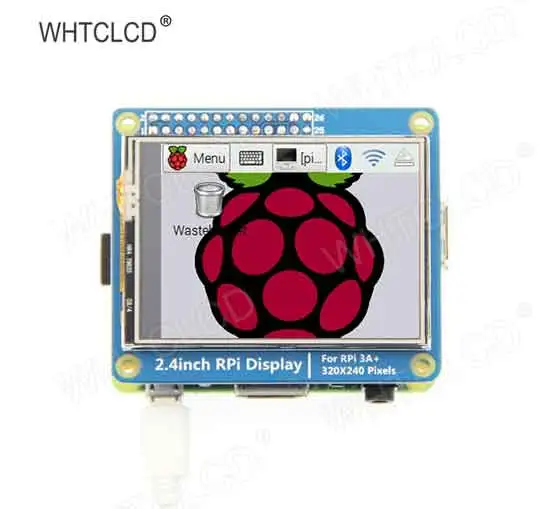

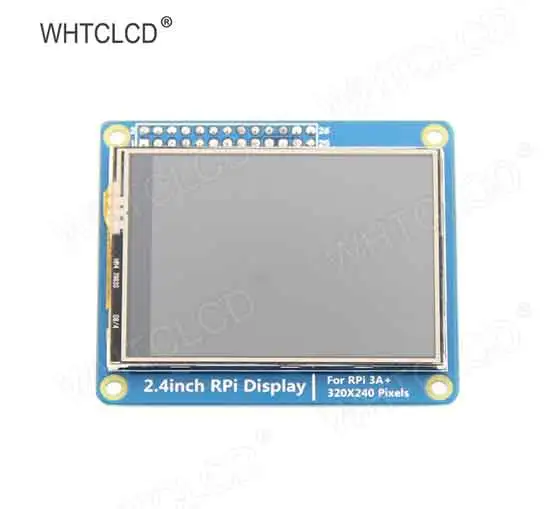

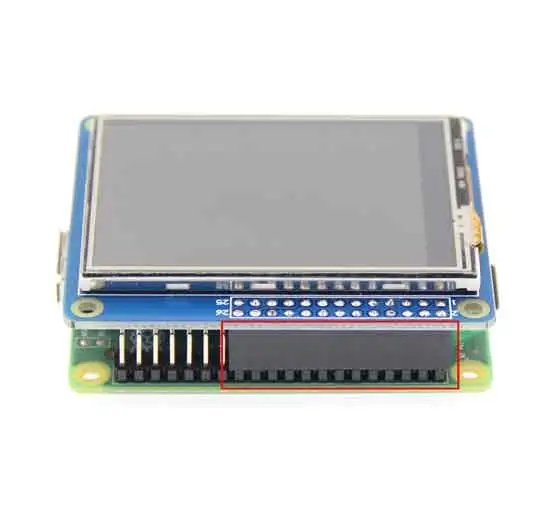

2.4inch standard display with physical resolution of 320×240. SPI interface with resistive touch screen for touch control. perfectly compatible and can be directly inserted into any version of the Raspberry Pi (Raspberry Pi ZeroW, A, A+, B, B+, 2B, 3B, 3B+). Support for Raspbian/Ubuntu/Kali systems, Provide driver, image, and online wiki guidance documents. This product has passed CE and RoHS certification.

Products

Parameters of 2.4 Inch Raspberry Pi LCD

Raspberry Pi GPIO Display
Remark: All Models Support Capacitive or Resistive Touch Panel.
Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
2.4	240*320	MPI2411	TN	SPI	56.0065.006	36.72*48.76	NC	NC	0.08A*5V	-20~60°C

Name	Description
SKU	MPI2411
Screen Size	2.4inch
LCD Type	TFT
Module Interface	SPI
Resolution	320*240 (Pixel)
Active Area	36.72x48.96(mm)
Touch Screen Controller	XPT2046
LCD Driver IC	ILI9341
Backlight	LED
Power Consumption	0.08A*5V
Operating Temperature（℃）	-20~60
Module PCB Size	56.00x65.00(mm)
Rough Weight(Package containing)(g)	37 (g)

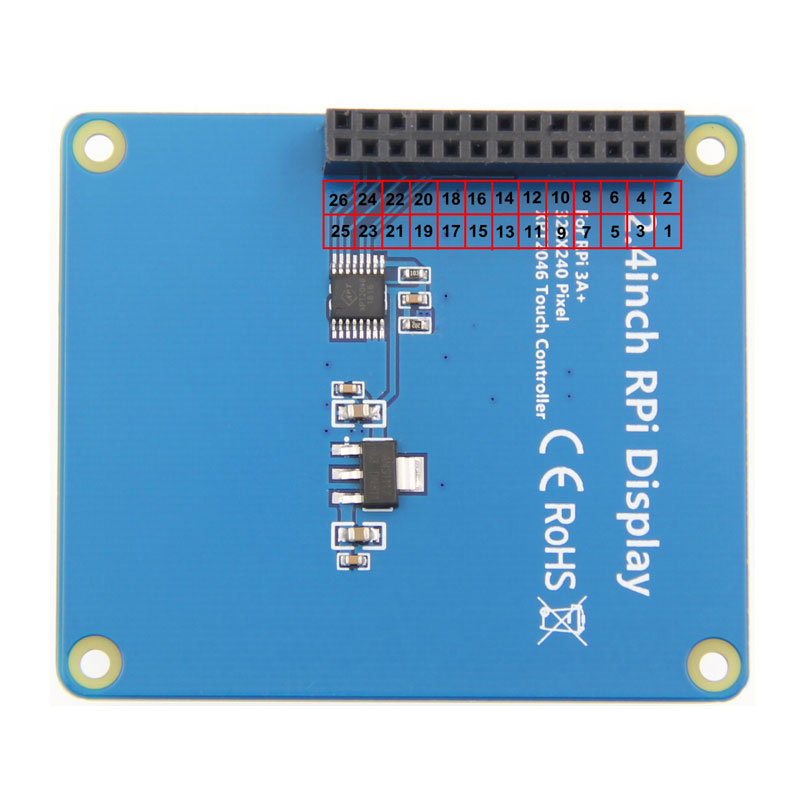

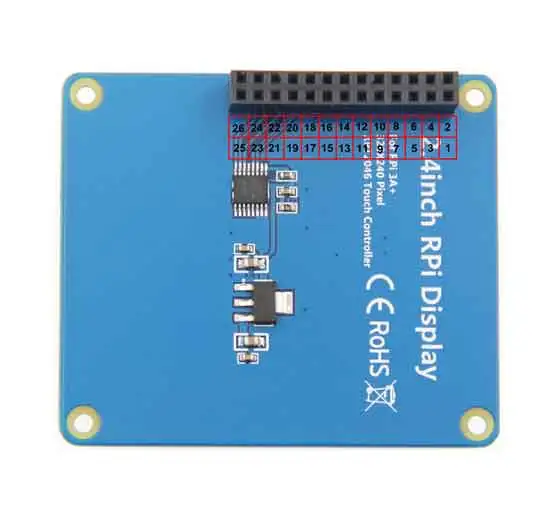

Hardware Description of 2.4 Inch Raspberry Pi LCD

stm32 demo board

Pin Number	Identification	Description
1, 17	3.3V	Power supply (3.3V power input)
2, 4	5V	Power supply (5V power input)
3, 5, 7, 8, 10, 12， 16，18，22	NC	Not connected
6, 9, 14, 20, 25	GND	Power ground
11	TP_IRQ	The touch panel is interrupted, and it is detected that the touch panel is pressed low.
15	LCD_RS	Instruction/data register selection, low level is instruction, high level is data
19	LCD_SI / TP_SI	LCD display/touch panel SPI data input
21	TP_SO	Touch panel SPI data output
13	RST	Reset signal, low reset
23	LCD_SCK / TP_SCK	LCD display/touch panel SPI clock signal
24	LCD_CS	LCD chip select signal, low level enable
26	TP_CS	Touch panel chip select signal, low level enable

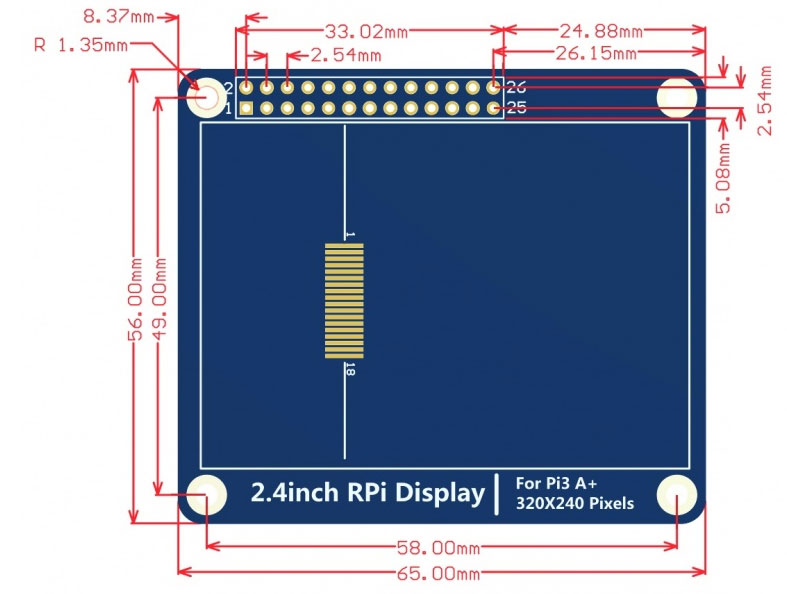

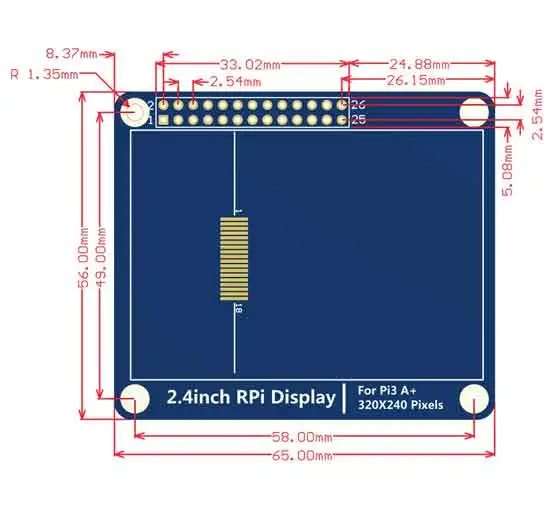

Product Size of 2.4 Inch Raspberry Pi LCD

stm32 dev
