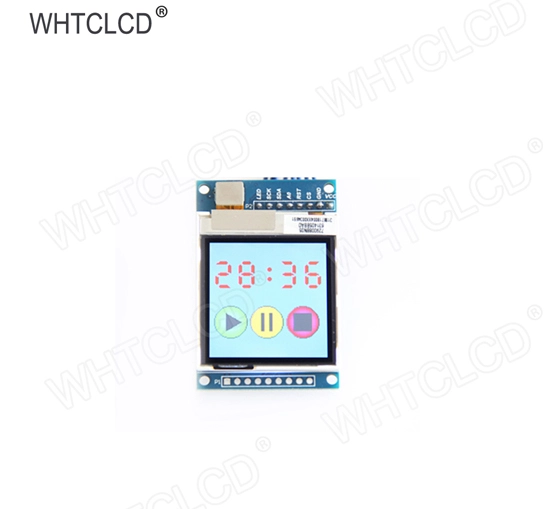

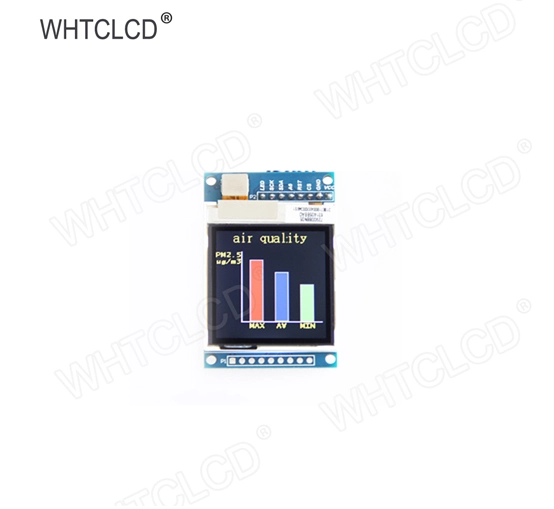

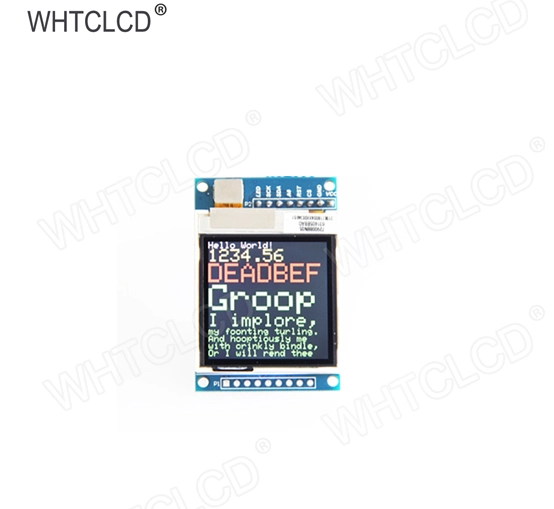

MSP1601 1.6 Inch SPI Disaply LCD Module

Name: MSP1601 1.6 Inch SPI Disaply LCD Module
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

1.6-inch color screen, support 65K color display, display rich colors. Semi-permeable trans-LCD, has superior performance and is clearly visible in strong light. Using the SPI serial bus, it only takes a few IOs to illuminate the display. On-board 3.3V/5V power conversion chip compatible with 3.3V and 5V voltage levels. The working temperature range is industrial grade (- 20 ℃ ~ 70 ℃). Military-grade process standards, long-term stable work. Provide a rich sample program. Provide underlying driver technical support. Support backlight control.

Products

Parameters of 1.6 Inch SPI Disaply LCD Module

Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
1.6	130*130	MSP1601	TN	SPI	35.4053.821.6	28.86*28.86	NC	NC	5V/3.3V	-20~60°C

Name	Parameter
Display Color	RGB 65K color
SKU	MSP1601
Screen Size	1.6(inch)
Type	TFT
Driver IC	SSD1283A
Resolution	130*130 (Pixel)
Module Interface	4-wire SPI interface
Active Area (AA area)	28.86x28.86(mm)
Module PCB Size	35.40X53.82X1.6(mm)
Angle of view	>60°
Operating Temperature	-10℃~60℃
Storage Temperature	-20℃~70℃
VCC power voltage	3.3V/5V
Power Consumption	TBD
Rough Weight(Package containing)	15(g)

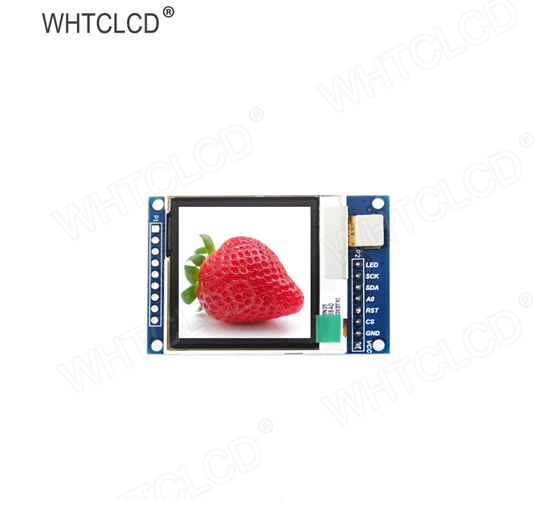

Hardware Description of 1.6 Inch SPI Disaply LCD Module

arduino small lcd display

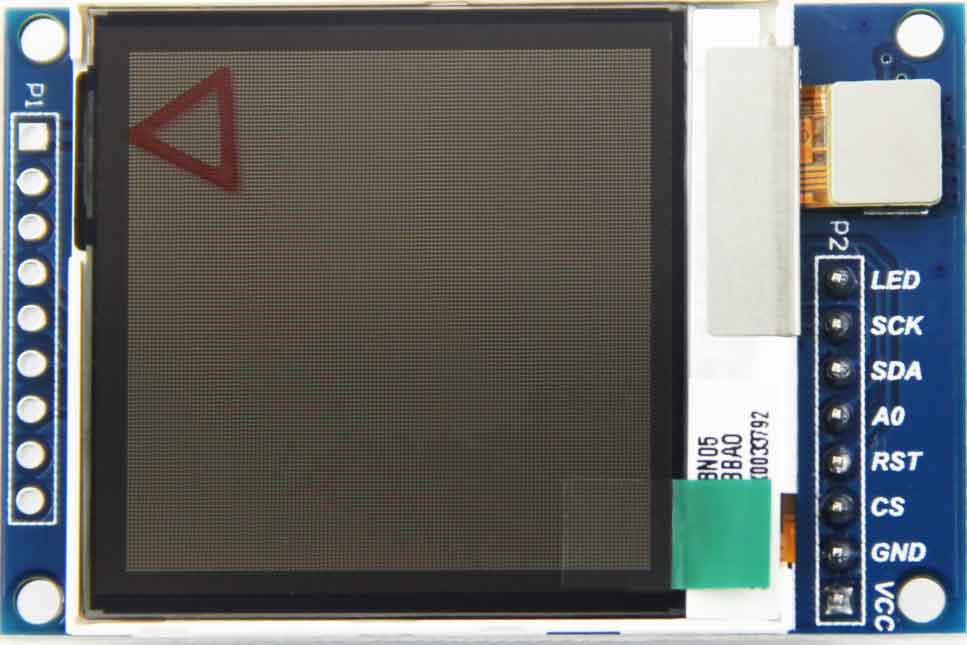

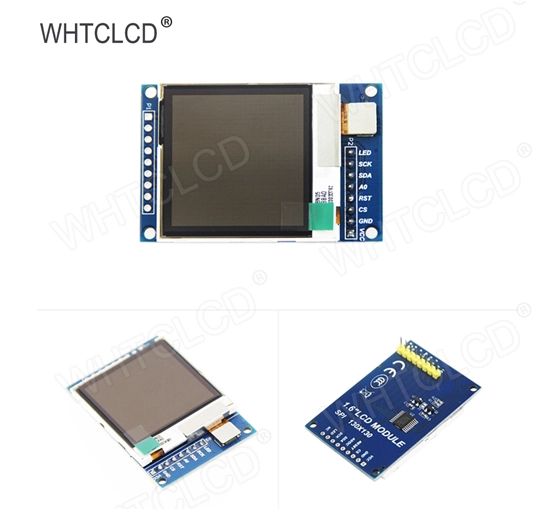

Number	Pin Label	Description
1	VCC	5V/3.3V power input
2	GND	Ground
3	CS	LCD chip select signal, low level enable
4	RST	LCD reset signal, low level reset
5	A0	LCD register/data selection signal, high level: register, low level: data
6	SDA	SPI bus write data signal
7	SCK	SPI bus clock signal
8	LED	Backlight control, high level lighting, if not controlled, connect 3.3V always bright

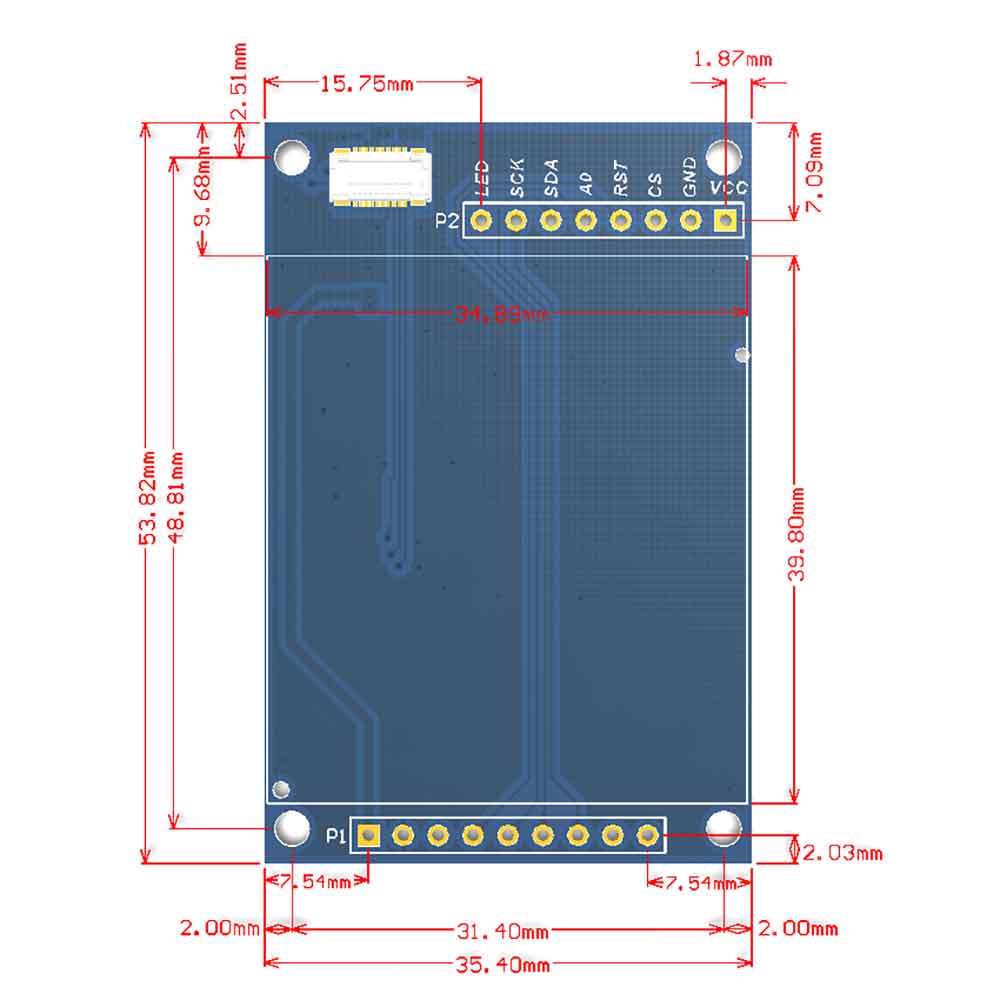

Product Size of 1.6 Inch SPI Disaply LCD Module
