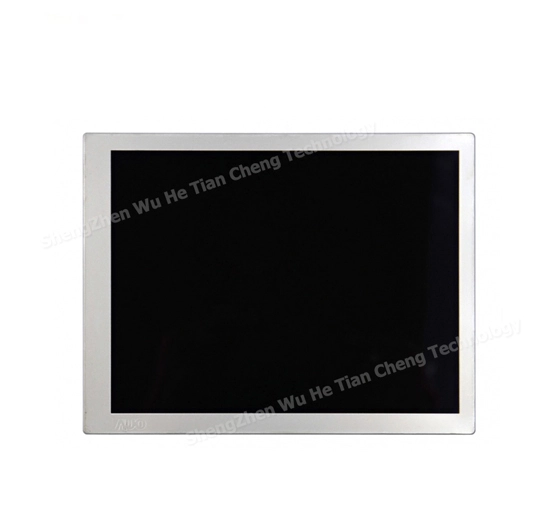

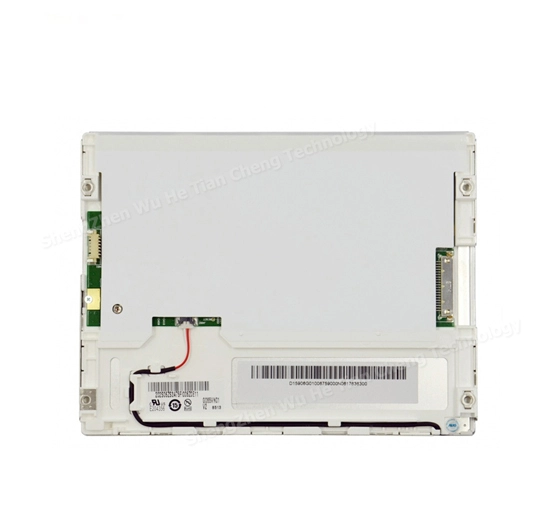

G065VN01 V2 6.5 AUO LCD Panel

Name: G065VN01 V2 6.5 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

AUO 6.5 inch tft lcd panel G065VN01 V2 with 640x480 VGA resolution, brightness 800 cd/m², LVDS 20pin. This lcd display's working temperature is -30 ~ +80 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial use and outdoor highlight.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G065VN01 V2 6.5 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
6.5	640*480	G065VN01 V2	15311811.2	132.48*99.36	TN	LVDS	800	-30~85°C

General Specifications of G065VN01 V2 6.5 AUO LCD Panel

Manufacturer	AUO
Model Name	G065VN01 V2
Screen Size	6.5 inch
Pixel Number	640(RGB)×480 , VGA
Active Area(mm)	132.48(H) × 99.36(V)
Outline(mm）	153(H) × 118(V) × 11.2(D)
Bezel Area(mm)	135.9(H) × 102.8(V)
Treatment	Anti-glare , Hard coating (3H)
Luminance	800 cd/m² (Typ.)
Contrast Ratio	600 : 1 (Typ.) (TM)
Viewing Angle	80/80/70/70 (CR≥10) Left / Right/UP /Down
Response	15/10 (Typ.)(Tr/Td) ms
Work Mode	TN , Normally white , Transmissive
Color Depth	262K/16.2M , 55% NTSC
Backlight	WLED , 50K hours , with LED Driver
Net Weight	170g (Typ.)
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit) , 20 pins
Voltage Supply	+3.3 V (Typ./Max.)
Max. Ratings	Storage Temp.: -30 ~ +80 (°C)
Max. Ratings	Operating Temp.: -30 ~ +80 (°C)
Package	AUO original package;
Package	80 pcs/carton
