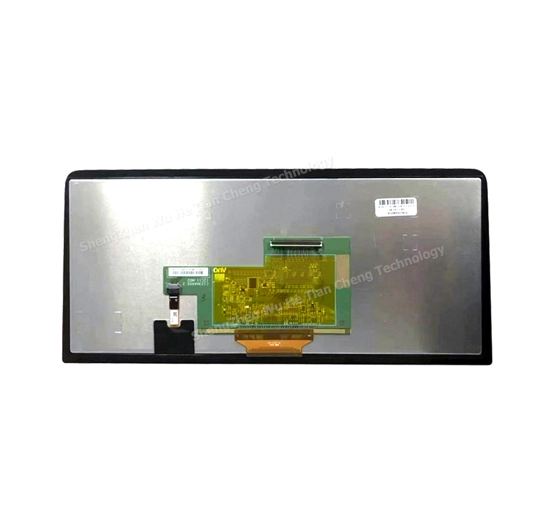

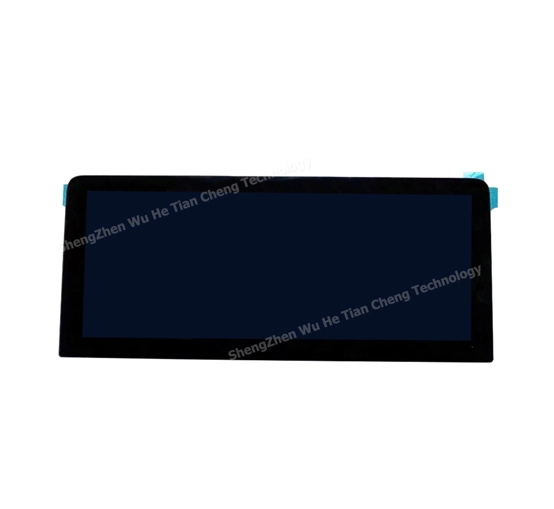

C123HAX02.2 12.3 AUO LCD Panel

Name: C123HAX02.2 12.3 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

AUO 12.3-inch TFT LCD panel C123AX022, resolution 1920 (RGB) x720, brightness 930 cd/m ², LVDS 70 pin. Equipped with Capacitive Touch Screen, the working temperature of this LCD display is -30~+85 (° C), and the storage temperature is -30~+85 (° C). Based on its white LED backlight. This model is recommended for industrial use and automotive (widely used).

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of C123HAX02.2 12.3 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
12.3	1920*720	C123HAX02.2	324.18139.2113.26	292.032*109.512	IPS	LVDS	930	-30~85°C

General Specifications of C123HAX02.2 12.3 AUO LCD Panel

Manufacturer	AUO
Model Name	C123HAX02.2
Screen Size	12.3 inch
Pixel Number	1920(RGB)×720
Active Area(mm)	292.032 × 109.512 (H×V)
Outline(mm）	324.18 ×139.21 ×13.26 (Wx Hx D)
Treatment	Hard coating (3H)
Luminance	930 cd/m² (Typ.)
Contrast Ratio	1200 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85
Viewing Angle	Left/Right/UP/Down
Response	20 (Typ.)(Tr+Td) ms
Work Mode	TN , Normally white , Transmissive
Color Depth	262K/16.2M , 85% NTSC
Backlight	WLED , 50K hours , with LED Driver
Net Weight	570g (Typ.)
Touchscreen	Capacitive Touch Screen
Signal Type/interface Type	LVDS (2 ch, 8bit) , 70 pins
Voltage Supply	+3.3 V (Typ./Max.)
Max. Ratings	Storage Temp.: -30 ~ +85 (°C)
Max. Ratings	Operating Temp.: -30 ~ +85 (°C)
