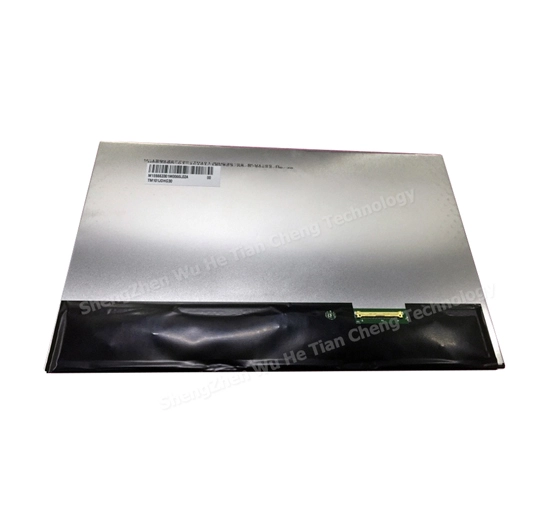

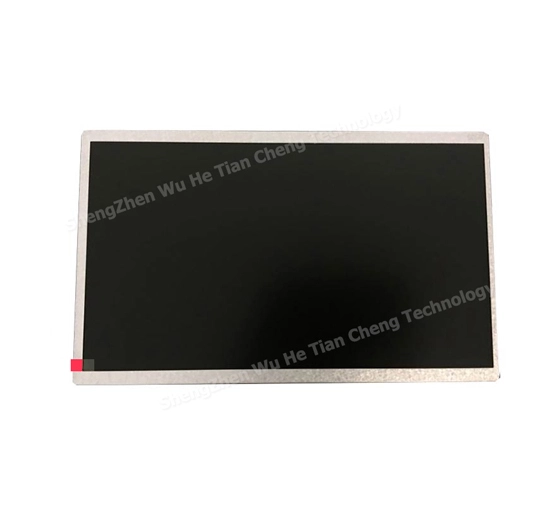

TM101JDHG30-00 10.1 Tianma LCD Panel

Name: TM101JDHG30-00 10.1 Tianma LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

TIANMA 10.1 inch tft lcd panel TM101JDHG30 with 1280(RGB)x800 WXGA resolution , brightness 500 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and its storage temperature is -30 ~ +80 (°C). Based on its white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of TM101JDHG30-00 10.1 Tianma LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
10.1	1280*800	TM101JDHG30-00	231.22150.66.6	216.96*135.6	IPS	LVDS	500	-20~70°C

General Specifications of TM101JDHG30-00 10.1 Tianma LCD Panel

TM101JDHG30-00

Manufacturer	TIANMA
Model Name	TM101JDHG30
Screen Size	10.1 inch
Pixel Number	1280(RGB)×800 , WXGA
Active Area(mm)	216.96 x 135.60 (H×V)
Outline(mm）	231.22 x 150.60 x 4.30 (H×V×D)
Pixel pitch(mm)	0.1695 x 0.1695 (H×V)
Treatment	HC
Luminance	500 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85(CR≥10) Left / Right/UP /Down
Response	10/15 (Typ.)(Tr/Td) ms
Work Mode	SFT , Normally black, Transmissive
Color Depth	262K/16.7M , 50% NTSC
Backlight	WLED , 50K hours,with LED Driver
Net Weight	280g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit) , 40 pins
Voltage Supply	3.3V
Max. Ratings	Storage Temp.: -30 ~ +80 (°C)
Max. Ratings	Operating Temp.: -20 ~ +70 (°C)
Package	TIANMA Original Package;
	19 pcs/ctn;
	weight : 8.37Kgs;
	size : 544(L)mm x 365(W)mm x 250(H)mm
