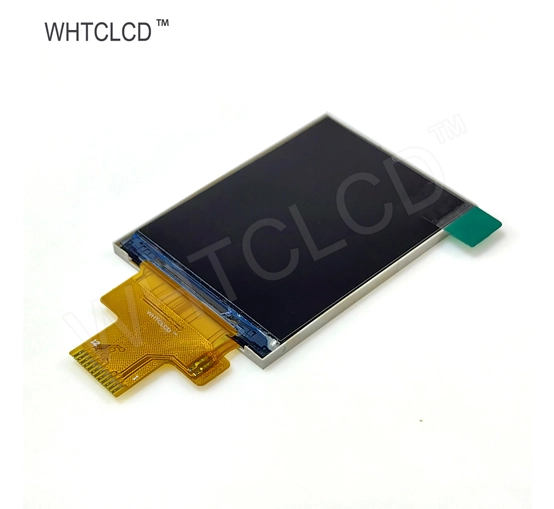

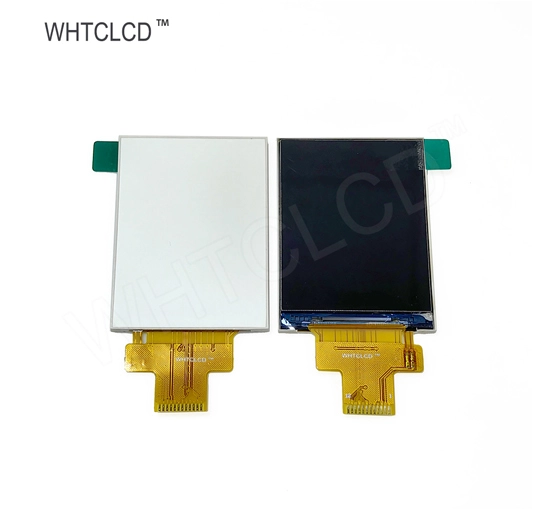

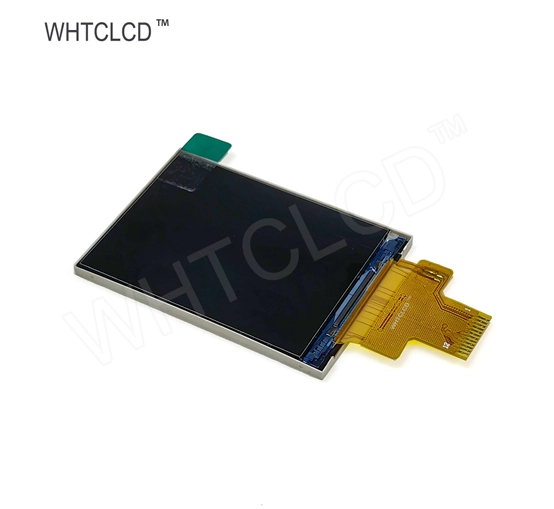

W020P12S1SI-A02B0 2.0 Inch IPS TFT LCD

Name: W020P12S1SI-A02B0 2.0 Inch IPS TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

2.0 Inch IPS TFT LCD is a transmissive type color active matrix liquid crystal display which uses amorphous thin film transistor as switching devices. this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 30.6*40.8 and the native resolution is 240*320, Applications: digital watches，wire tester，sphygmomanometer, ECG machine，Handheld devices.

Products

Parameters of 2.0 Inch IPS TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
2	240*320	W020P12S1SI-A02B0	34.647.82.1	30.82*40.8	IPS	SPI	300	-20~70°C

General Specifications of 2.0 Inch IPS TFT LCD

W020P12S1SI-A02B0

Feature	Specifications	Unit
Size	2	inch
Technology Type	a-si TFT
Resolution	240(RGB)x320
Pixel pitch	``	mm
Color Depth	262K
Display Mode	Normally BACK
Driver IC	ST7789
Surface Treatment	Clear Type
Viewing Direction	ALL
Gray Viewing Direction	`
LCM (W x H x D) (mm)	34.7047.952.2	mm
Active Area(mm)	30.6*40.8	mm
With /Without TSP	With RTP
Brightness	300	nits
Weight (g)	12	g
Interface	SPI 4 Wire ; FPC 12pin
Operation Temperature	-20~70	℃
Storage Temperature	-30~85	℃

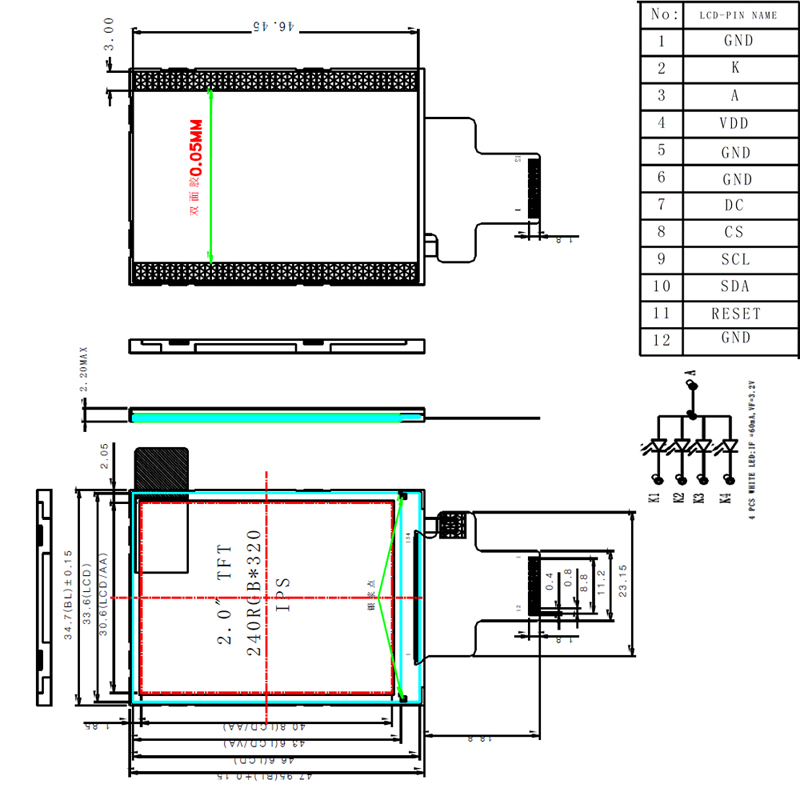

Structural Size of 2.0 Inch IPS TFT LCD

W020P12S1SI-A02B0

2.0 Inch IPS TFT LCD
