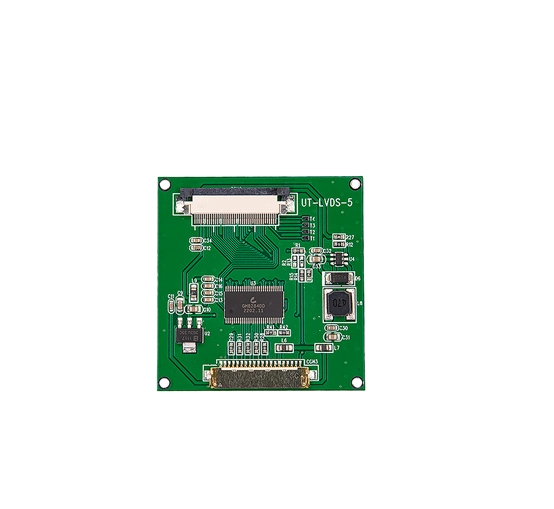

UT-LVDS-5 RGB TTL LCD Controller Board

Parameters of UT-LVDS-5 RGB TTL LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
18	UT-LVDS-5	LVDS to RGB 40pin	RGB TTL 40pin	NO	3.3 / 5V

General Specifications of UT-LVDS-5 RGB TTL LCD Controller Board

Model: UT-LVDS-5

LVDS to RGB

1. 18bit LVDS input to RGB 40pin

2. Single 6-bit LVDS signal to 40p-RGB signal driving TFT LCD screen(The LVDS outout resolution of the motherboard needs to be set according to the driver screen resolution)

3. Equipped with LCD backlight driver circuit

Application scope: Industrial control/instrumentation/human-machine interface/portable/handheld devices/car navigation systems/smart homes/medical displays

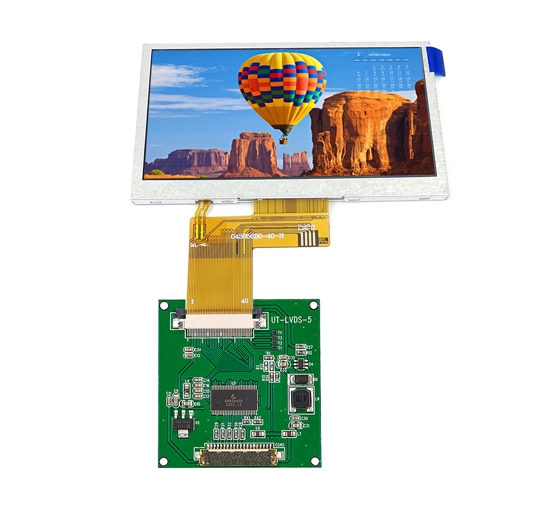

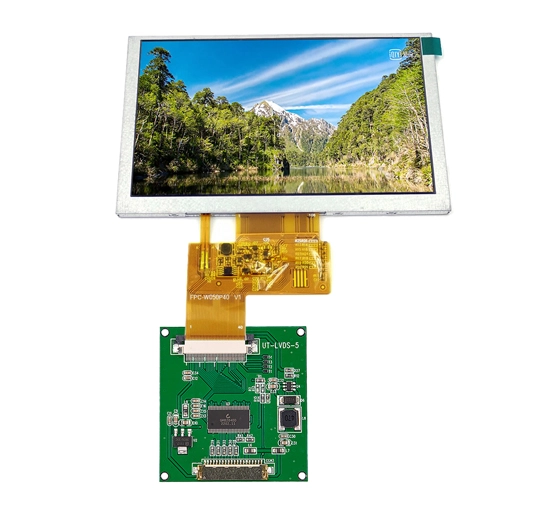

A screen that can be driven	4.3 inch	AT043TN25V.2	800*480	5 inch	AT050TN33	480*272
		CRD043TN01	800*480		AT050TN43V.1	800*480
		KD43G18	800*480		LW500AC9001	800*480
		W043P40S1RN	480*272		LW500AC9004	800*480
					HSD050EDW1-A20	800*480
					CRD050TN02	800*480

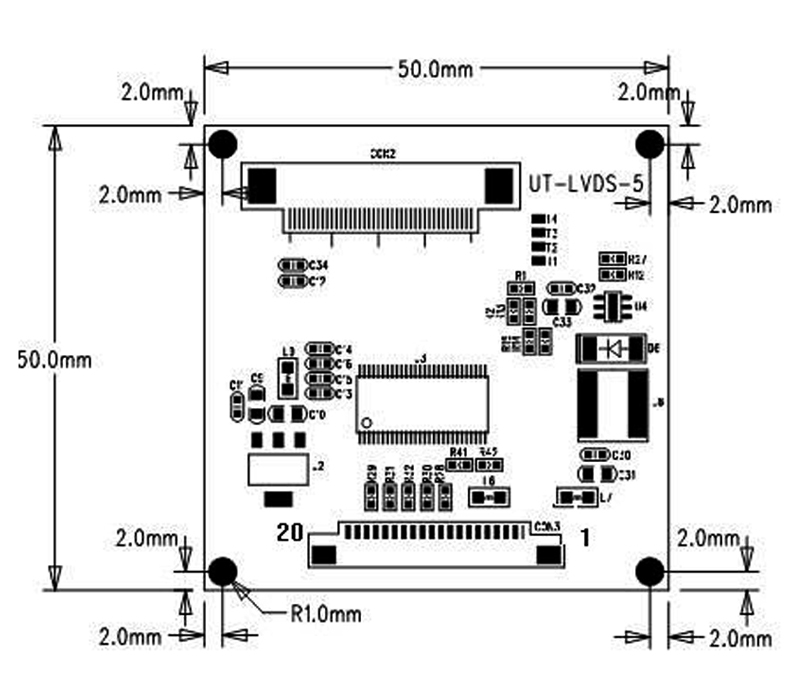

Structural Size of UT-LVDS-5 RGB TTL LCD Controller Board

UT-LVDS-5 RGB TTL LCD Controller Board
