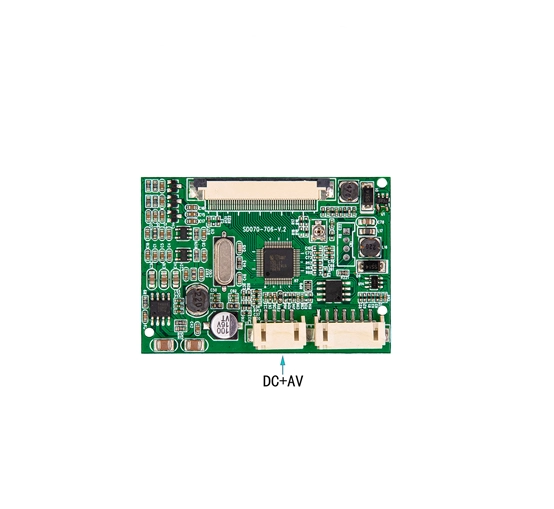

SD070-706-V.3 RGB TTL LCD Controller Board

Parameters of SD070-706-V.3 RGB TTL LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
10	SD070-706-V.3	AV(CVBS) Signal input; Supports multiple resolutions, Supports 4.3 / 5 / 7 inch LCD screen	RGB TTL 40pin	NO	DC12V

General Specifications of SD070-706-V.3 RGB TTL LCD Controller Board

Model: SD070-706

1 AV(Cvbs) (optional) video signal input

2 Signal output supports RGB 40pin interface LCD screen

3 Power input: DC+12V

4 Multi functional OSD Operations

5 With remote control function(optional)

Model	SD070-706
Signal source	AV(Cvbs）
output interface	RGB_40pin
MAX Resolution support	800*480（60~75Hz）
Power input	DC +12V
CVBS	1.0Vp-p75Ω
Operation Temperature	-10℃～+60℃
Working humidity	90%RH
Storage temperature	-20℃～+70℃
Save humidity	90%RH

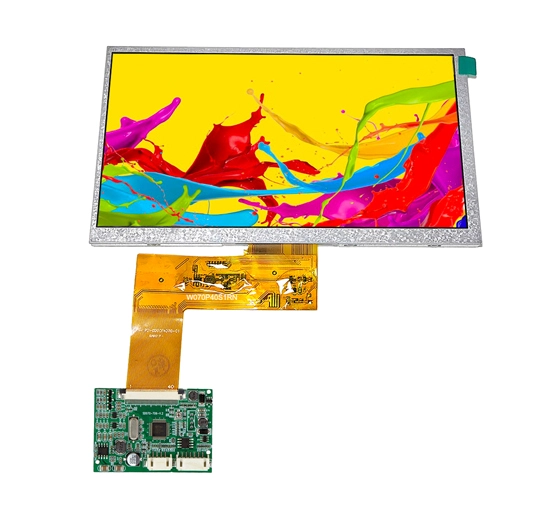

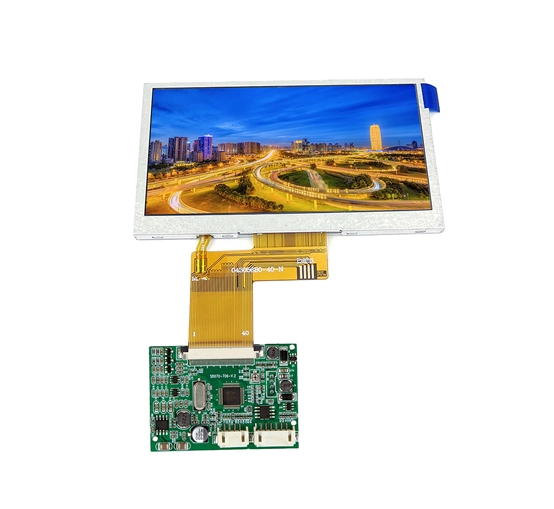

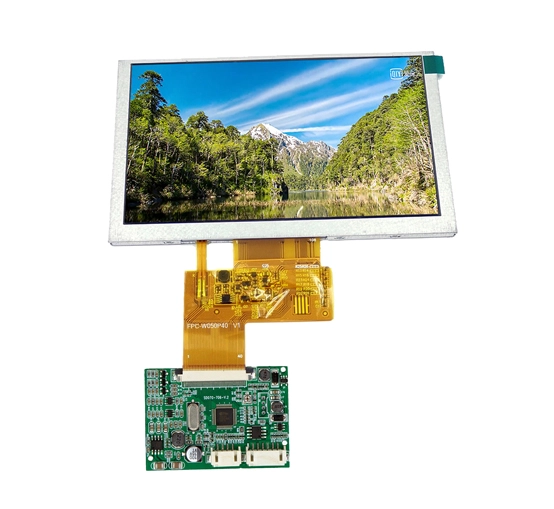

screen size	4.3 inch, 5 inch, 7 inch
A sxreen that Can be driven	4.3 inch	AT043TN25V.2	480*272	5 inch	AT050TN33		480*272
		TM043NDH02-40	480*272		AT050TN43V.1	800*480
		KD43G18	480*272		LW500AC9001	800*480
		W043P40S1RN	480*272		LW500AC9004	800*480
		W043P40S1RI	480*272		HSD050EDW1-A20	800*480
		W043P40H1RI	800*480		W050P40H1RI	800*480
	7 inch	W070P40S1RN	800*480		W050P40S1RN	480*272

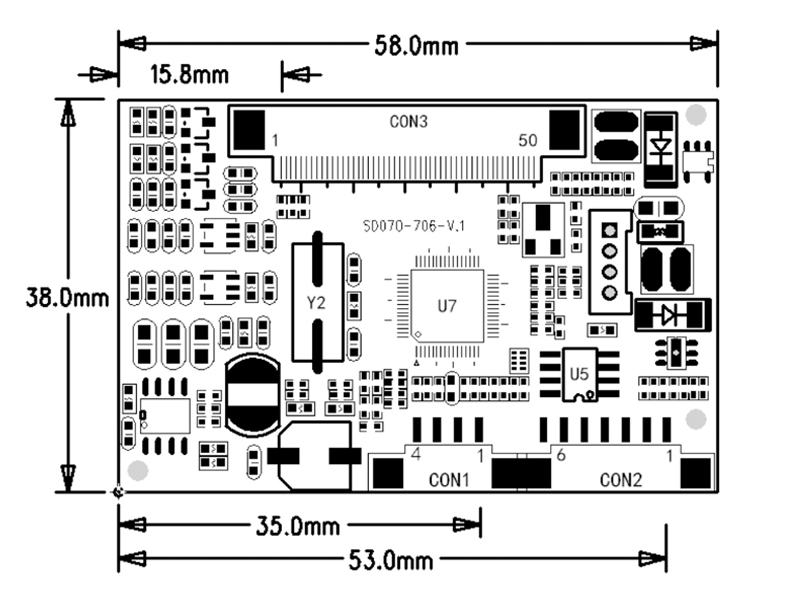

Structural Size of SD070-706-V.3 RGB TTL LCD Controller Board

SD070-706-V.3 RGB TTL LCD Controller Board
