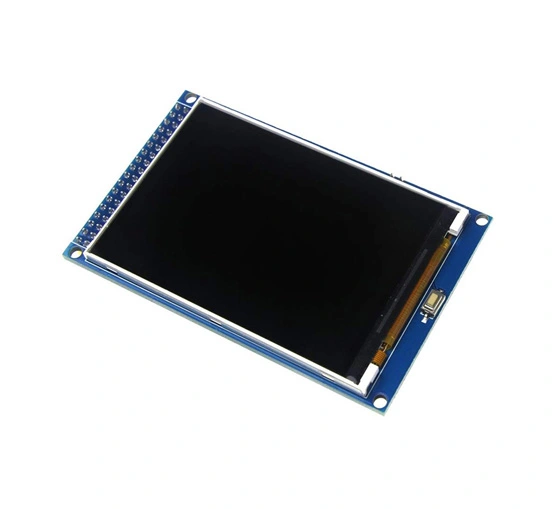

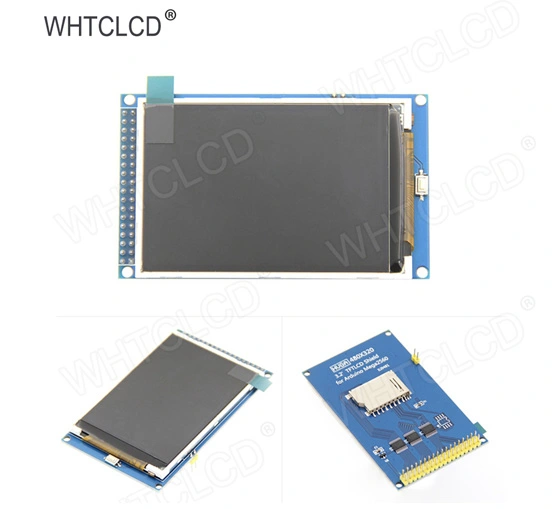

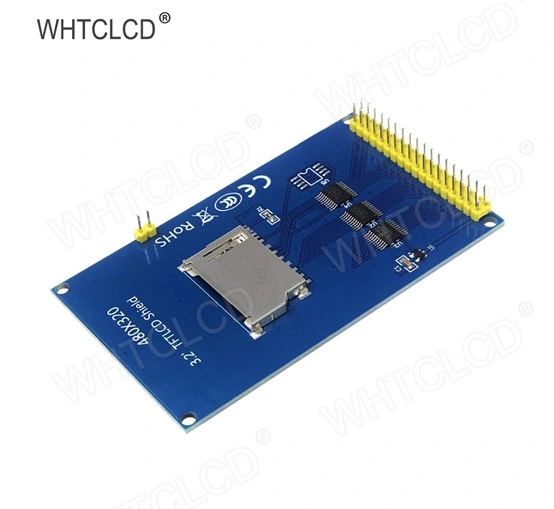

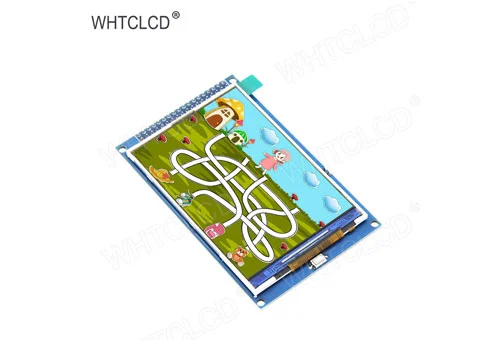

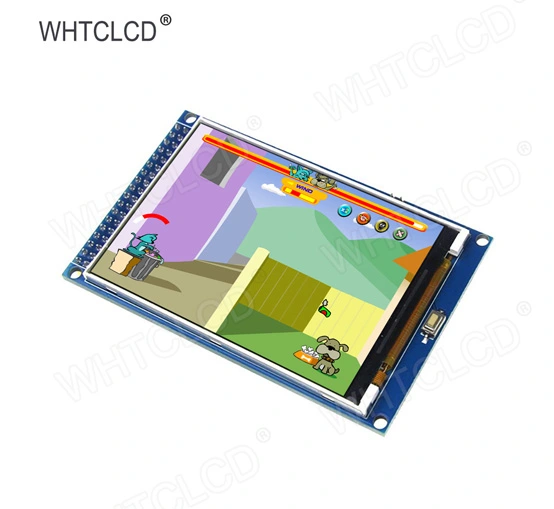

MAR3201 3.2 Inch Arduino LCD

Name: MAR3201 3.2 Inch Arduino LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

3.2-inch color screen, support 65K color display, display rich colors. 320x480 HD resolution for clear display. Fast transmission with 16-bit parallel bus. On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage. Support Arduino Mage2560 direct plug-in use. Provides an Arduino library with a rich sample program. Easy to expand the experiment with SD card slot. Military-grade process standards, long-term stable work. Provide underlying driver technical support.

Products

Parameters of 3.2 Inch Arduino LCD

Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
3.2	320*480	MAR3201	TN	8-bit parallel	89.9254.256	45.12x67.68	NC	RTP	5V/3.3V	-20~60°C

Name	Parameter
Display Color	RGB 65K color
SKU	MAR3201
Screen Size	3.2(inch)
Type	TFT
Driver IC	ILI9481
Resolution	480*320 (Pixel)
Module Interface	16-bit parallel interface
Active Area	45.12x67.68 (mm)
Module PCB Size	54.25x89.92 (mm)
back light	6 chip HighLight white LEDs
Operating Temperature	-20℃~60℃
Storage Temperature	-30℃~70℃
Operating Voltage	5V/3.3V
Power Consumption	TBD
Product Weight(Package containing)	About 42(g)

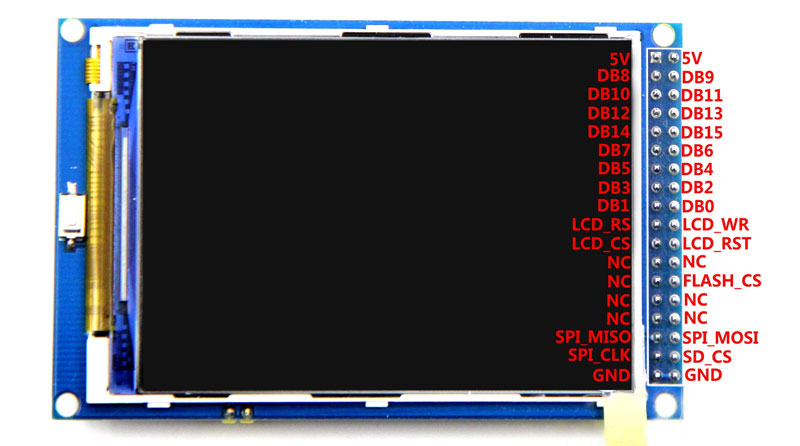

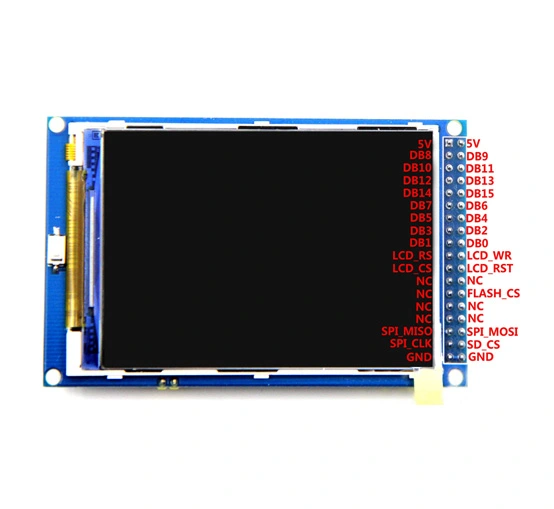

Hardware Description of 3.2 Inch Arduino LCD

stm32f411 nucleo board

Number	Module Pin	Pin Description	Number	Module Pin	Pin Description
1	5V	Positive power supply	2	5V	Positive power supply
3	DB8	8th bit of data bus	4	DB9	9th bit of data bus
5	DB10	10th bit of data bus	6	DB11	11th bit of data bus
7	DB12	12th bit of data bus	8	DB13	13th bit of data bus
9	DB14	14th bit of data bus	10	DB15	15th bit of data bus
11	DB7	7th bit of data bus	12	DB6	6th bit of data bus
13	DB5	5th bit of data bus	14	DB4	4th bit of data bus
15	DB3	third bit of data bus	16	DB2	2nd bit of data bus
17	DB1	1st bit of data bus	18	DB0	0 bit of data bus
19	LCD_RS	LCD register/data selection signal Low level: register, high level: command	20	LCD_WR	LCD write control signal
21	LCD_CS	LCD screen select control signal, low level enable	22	LCD_RST	LCD reset control signal, low reset
23	NC	Undefined, reserved	24	NC	Undefined, reserved
25	NC	Undefined, reserved	26	FLASH_CS	SPI flash chip select control signal
27	NC	Undefined, reserved	28	NC	Undefined, reserved
29	NC	Undefined, reserved	30	NC	Undefined, reserved
31	SPI_MISO	SPI bus input signal	32	SPI_MOSI	SPI bus output signal
33	SPI_CLK	SPI bus clock signal	34	SD_CS	SD card select control signal, low level enable
35	GND	Power ground	36	GND	Power ground

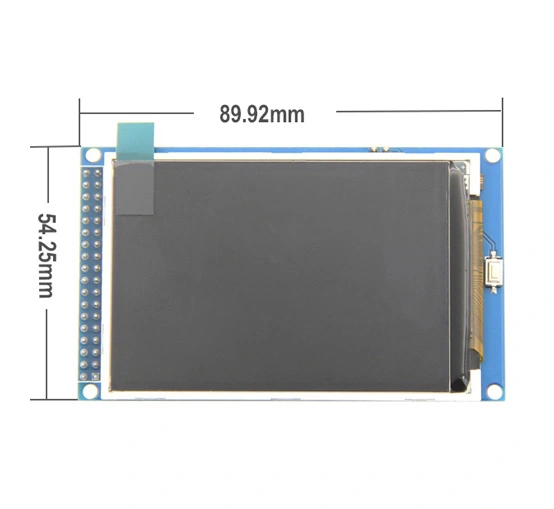

Product Size of 3.2 Inch Arduino LCD

stm32f411ceu6 board

Want to Get More Details About LCD Products?

We're waiting for your contact! Original LCD Display manufacturer, covering an area of over 2,000 square meters, with more than 10 years of industry experience. Professional R&D Team and sales team. We possess a variety of software copyrights and utility patents certificates, which can provide you with more customized solutions and SDK solutions.

The message you fill in is just to tell our sales engineers your requirements and the support you need, so that they can help you better, we will not disclose any of your information, please donot worry!



Tel:

0755-25695467


E-mail:

sales@cntftlcd.com


Address:

2F, Building C, Banwei Garden, No. 17, Yongxiang East Road, Bantian Street, Shenzhen, Guangdong, China

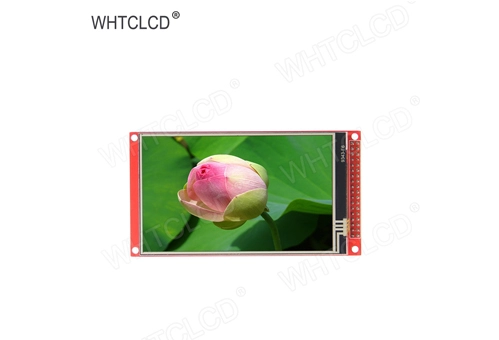

Other Arduino LCD Display Products
