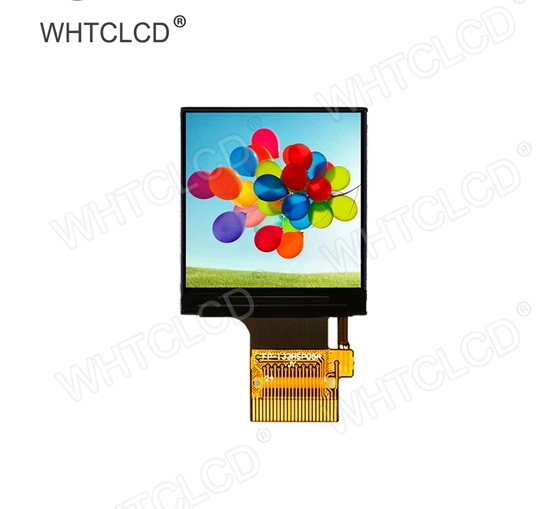

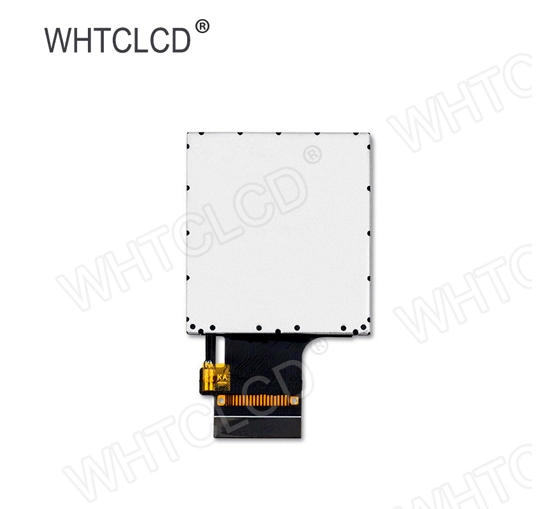

W0130S24S1CI 1.3 Inch Square TFT LCD Display

Name: W0130S24S1CI 1.3 Inch Square TFT LCD Display
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

JAX133TP-IF05 is a 240RGBX240 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel,driver ICs, FPC and a Backlight unit.

Products

Parameters of 1.3 Inch Square TFT LCD Display

Size (inch)	Resolution	Model	LCM Dimension (mm)	Active Area (mm)	View	Interface	Brightness (nits)	OP(℃)
1.3	240*240	W0130S24S1CI (Square)	26. 1729.221.53	23.40*23.40	IPS	MCU	300	-20~70°C

Features of 1.3 Inch Square TFT LCD Display

W0130S24S1CI

NO	ltem	Contents	Unit
1	LCD Size	1.3	inch
2	Display Mode	Normally black
3	Resolution	240(H)RGBx240(V)	pixels
4	Pixel pitch	0.0975(H)×0.0975(V)	mm
5	Active area	23.4(H)×23.4(V)	mm

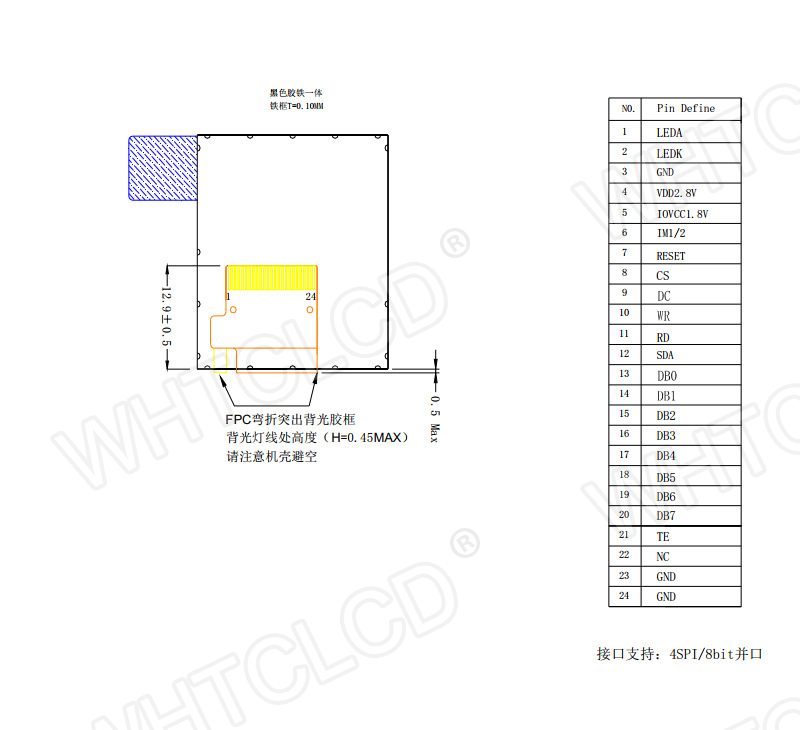

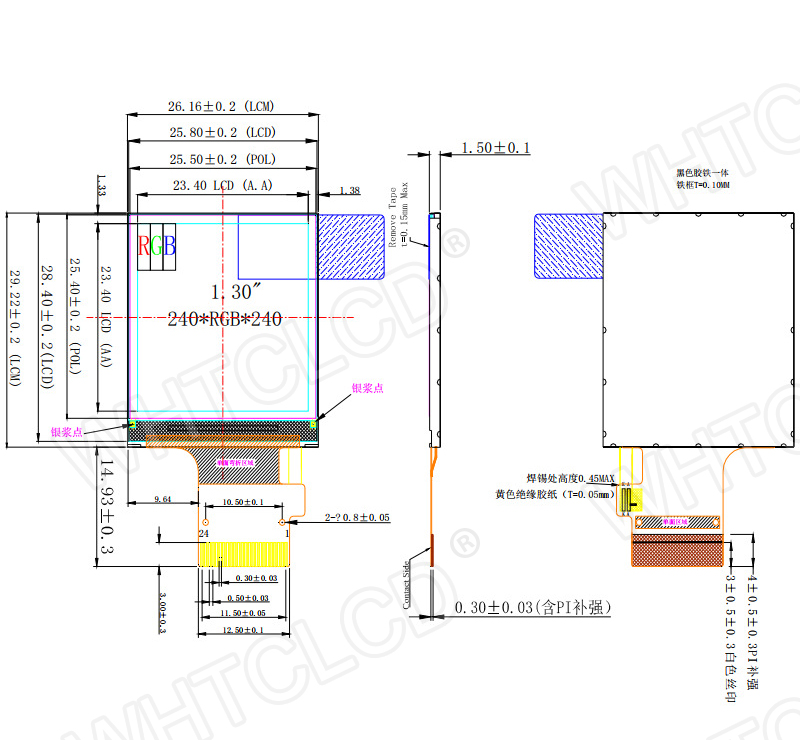

6	Module size	26.16(H)×29.22(V)×1.5(D)	mm
7	Pixel arrangement	RGB Vertical stripe	-
8	Interface	8Bit 8080 MCU &4 Line SPI
9	Display Colors	262K	colors
10	Drive IC	ST7789P3
11	Luminance(cd/m2)	350(TYP)	Cd/m2
12	Viewing Direction	AlI View	Best image
13	Backlight	2 White LED Parallel	-
14	Operating Temp.	-20℃~+70℃	℃
15	Storage Temp.	-30℃~+80℃	℃
16	Weight	2.4	g

Electrical Characteristics of 1.3 Inch Square TFT LCD Display

W0130S24S1CI

Absolute Maximum Ratings
Parameter		Symbol		Min		MAX		Unit		Notes
Supply Voltage (I/O)		VDD		-0.3		4.6		V
Analog Supply Voltage		VDDIO		-0.3		4.6		V
Logic Input Voltage		VIN		-0.3		VDDIO+0.5		V
Operation Temperature		Top		-20		70		℃
Storage Temperature		Tst		-30		80		℃
Operating Conditions
Parameter	Symbol		Min		TYP		MAX		Unit	Notes
System Voltage	VDD		2.5		2.8		3.3		V
Interface Operation Voltage	VDDIO		1.65		1.8		3.3		V
Gate Driver High Voltage	VGH		12.2		-		14.97		V
Gate Driver Low Voltage	VGL		-12.5		-		-7.16		V
Operating Current for VDD	lDD				8		10		mA
Sleep_In Mode VDD	ldd				15		30		uA
Sleep_In Mode VDDIO	lddio				5		10		uA
Backlight Unit
Parameter	Symbol		Min		TYP		MAX		Unit	Notes
Voltage for LED backlight	VLED		2.9		3.0		3.1		V
Current for LED backlight	LED				40		60		mA	2 LED

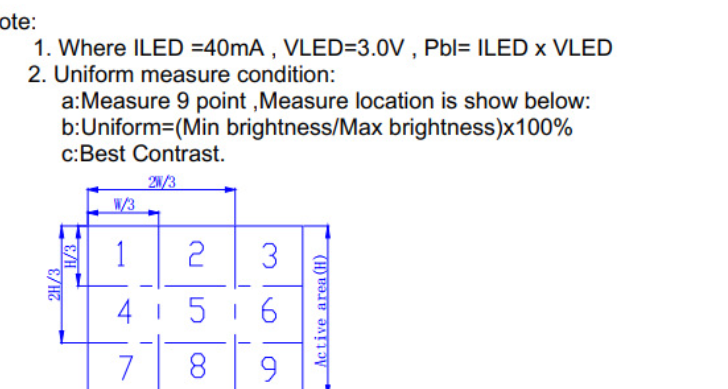

Power Consumption	Pbl		-		120		186		mW	1
Brightness	Lbr		300		350		-		cd/m²	2
LED Life time	-		20000				-		hr	3
