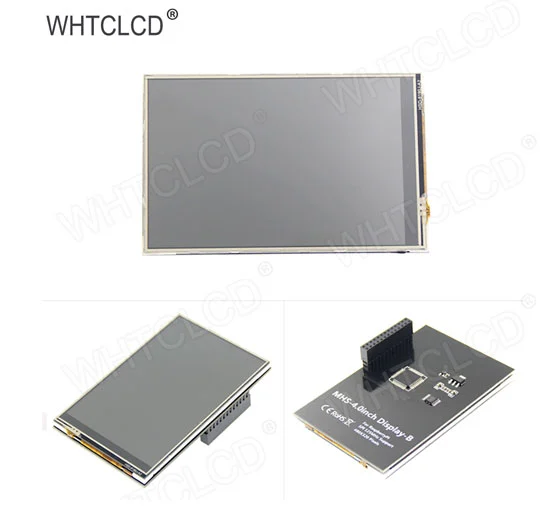

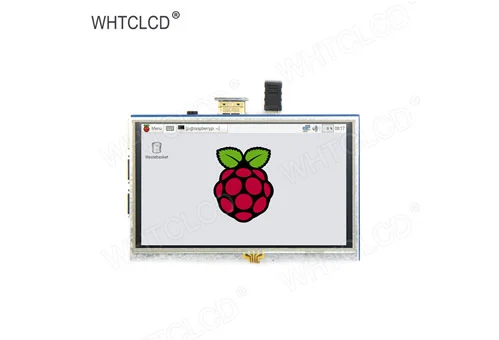

MHS4001 4 Raspberry Pi MHS LCD Display

Name: MHS4001 4 Raspberry Pi MHS LCD Display
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

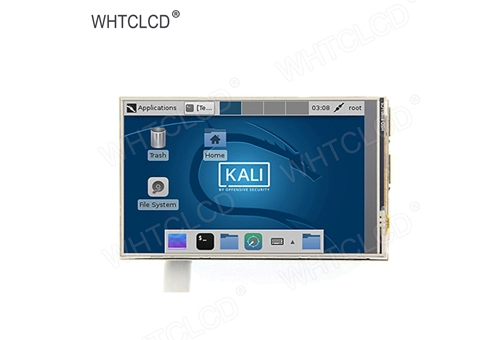

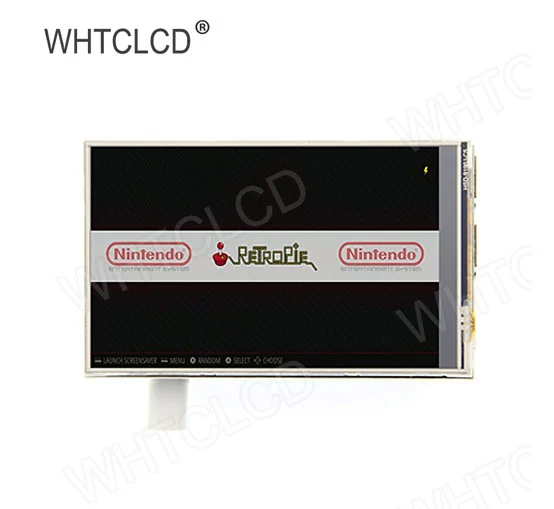

Physical resolution 480 x 320, with resistive touch control. It supports up to 125MHz SPI signal input, showing stable no screen and no flicker. With the refresh rate of raspberry pie around 50FPS, play video to play the game without pressure. Support FBCP software drive, support double screen display, can adjust the resolution of the software to zoom. Same size as the Raspberry Pi, perfectly compatible and can be directly inserted into any version of the Raspberry Pi (Raspberry Pi ZeroW, A, A+, B, B+, 2B, 3B, 3B+). Support Raspbian/Ubuntu/Kali/Retropie system, provide driver and image. This product has passed CE and RoHS certification.

Products

Parameters of 4 Raspberry Pi MHS LCD Display

Raspberry Pi MHS LCD Display
Remark: All Models Support Capacitive or Resistive Touch Panel.
Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
4	320*480	MHS4001	TN	SPI	95.561.06	83.52*55.68	NC	RTP	0.16*5V	-20~60°C

Name	Description
SKU	MHS4001
Screen Size	4.0inch
LCD Type	TFT
Module Interface	SPI (upports up to 125MHz SPI input)
Resolution	480*320 (Pixel)
Touch Screen Controller	XPT2046
LCD Driver IC	ST7796S
Backlight	LED
power consumption	0.16A*5V
Working temperature（℃）	-20~60
Active Area	83.52*55.68(mm)
Module PCB Size	95.5*61.0(mm)
Package Size	136x98x41(mm)
Rough Weight(Package containing)(g)	100(g)

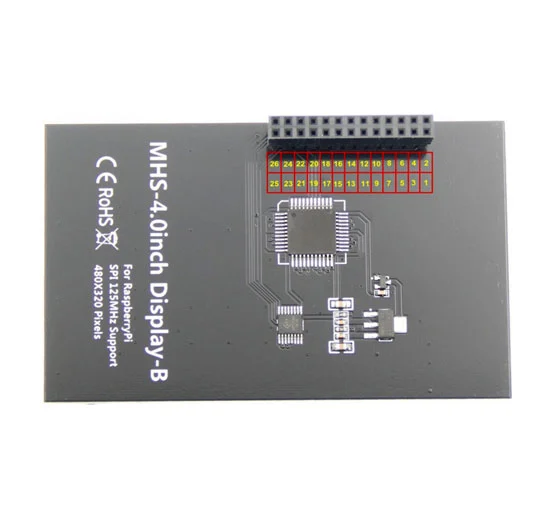

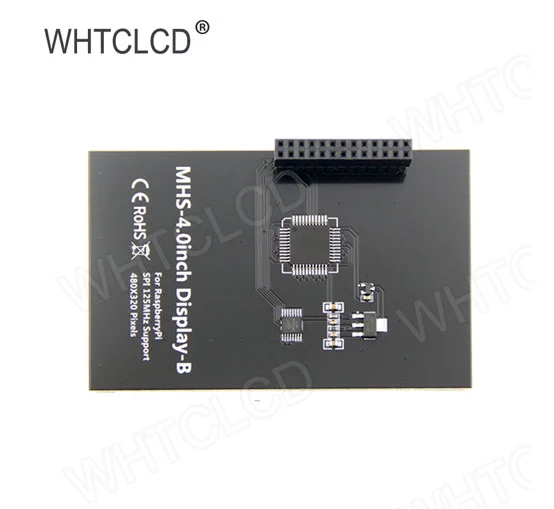

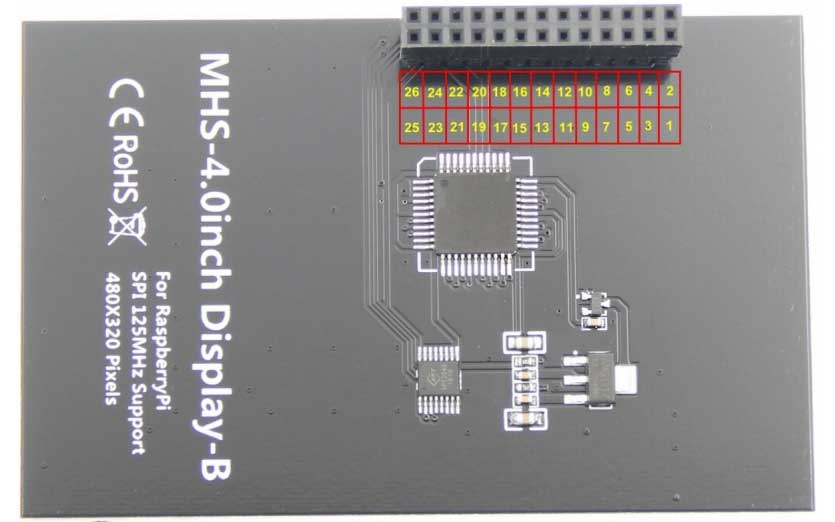

Hardware Description of 4 Raspberry Pi MHS LCD Display

stm32f103c8t6 evaluation board

Pin Number	Identification	Description
1, 17	3.3V	Power positive (3.3V power input)
2, 4	5V	Power positive (5V power input)
3, 5, 7, 8, 10, 12, 13, 15, 16	NC	Not connected
6, 9, 14, 20, 25	GND	Power ground
11	TP_IRQ	The touch panel is interrupted, and it is detected that the touch panel is pressed low
18	LCD_RS	Instruction/data register selection, low level is instruction, high level is data
19	LCD_SI / TP_SI	LCD display/touch panel SPI data input
21	TP_SO	Touch panel SPI data output
22	RST	Reset signal, low reset
23	LCD_SCK / TP_SCK	LCD display/touch panel SPI clock signal
24	LCD_CS	LCD chip select signal, low level enable
26	TP_CS	Touch panel chip select signal, low level enable

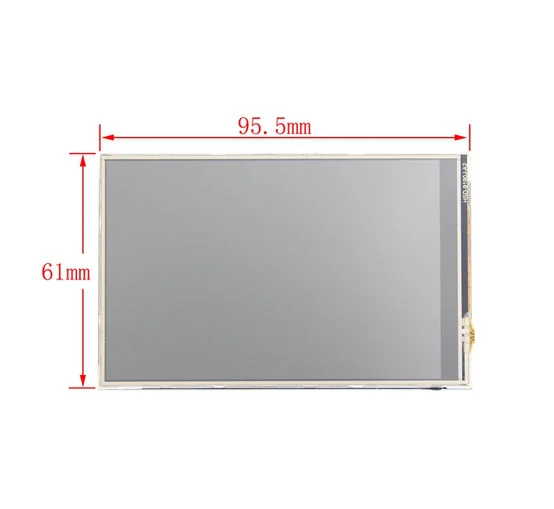

Product Size of 4 Raspberry Pi MHS LCD Display

stm32f103c8t6 kit
