MSP3520 3.5 Inch SPI Disaply LCD Module

Name: MSP3520 3.5 Inch SPI Disaply LCD Module
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

3.5-inch color screen, support 65K color display, display rich colors. 480X320 resolution, optional touch function. Using the SPI serial bus, it only takes a few IOs to illuminate the display. Easy to expand the experiment with SD card slot. Provide a rich sample program. Military-grade process standards, long-term stable work. Provide underlying driver technical support.

Products

Parameters of 3.5 Inch SPI Disaply LCD Module(NC/RTP)

Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
3.5	320*480	MSP3520	TN	SPI	56.34986	48.96*73.44	NC	NC / RTP	5V/3.3V	-20~60°C

Name	Parameter
Display Color	RGB 65K color
SKU	have touch screen: MSP3520
SKU	have no touch screen: MSP3521
Screen Size	3.5(inch)
Type	TFT
Driver IC	ILI9488
Resolution	480*320 (Pixel)
Module Interface	4-wire SPI interface
Active Area (AA area)	48.96x73.44(mm)
Module PCB Size	56.34x98(mm)
Operating Temperature	-20℃~60℃
Storage Temperature	-30℃~70℃
VCC power voltage	3.3V~5V
Logic IO port voltage	3.3V(TTL)
Power Consumption	TBD
Rough Weight(Package containing)	No touch: 45 (g) / With touch: 57 (g)

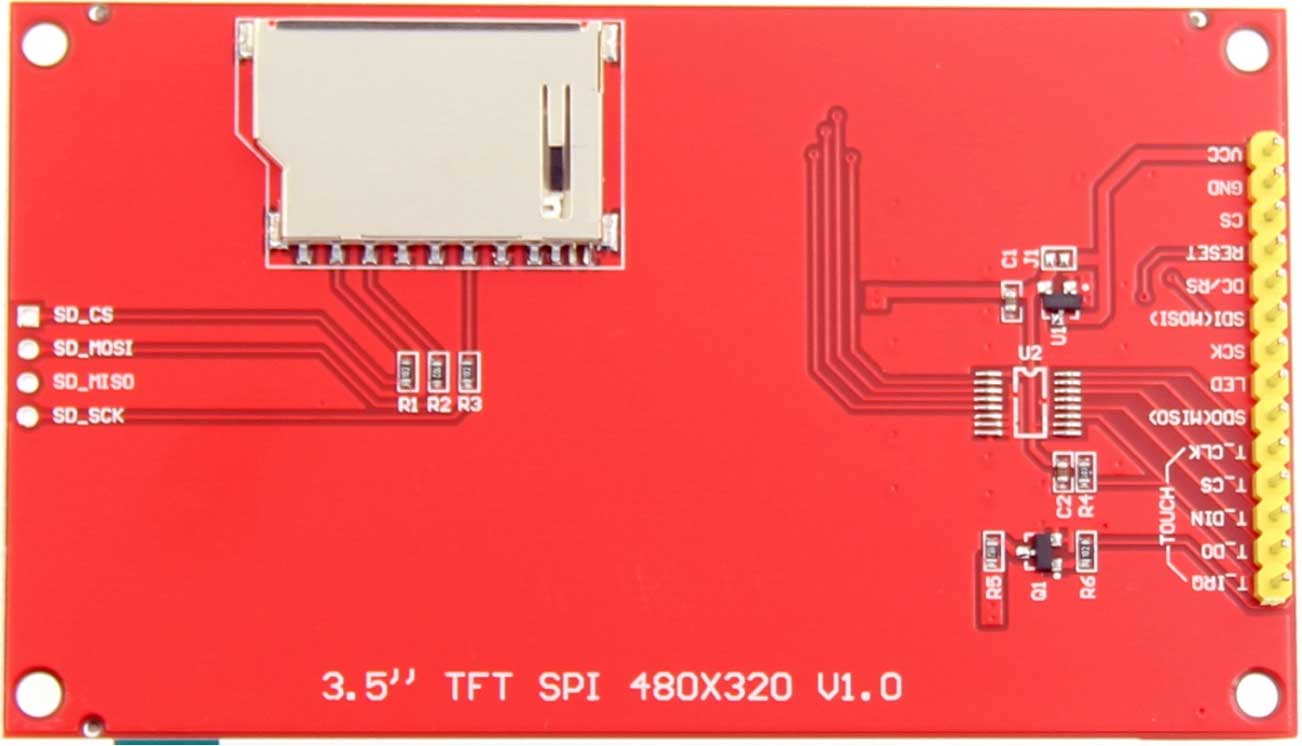

Hardware Description of 3.5 Inch SPI Disaply LCD Module(NC/RTP)

lcd display arduino pins

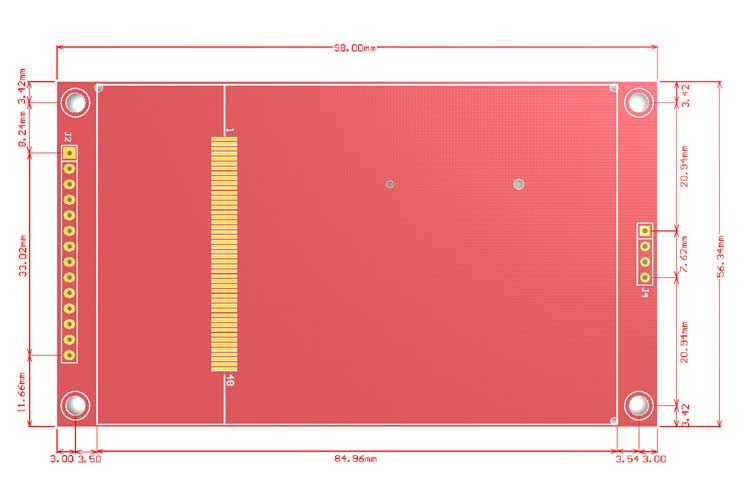

Product Size of 3.5 Inch SPI Disaply LCD Module(NC/RTP)

lcd display arduino with potentiometer
