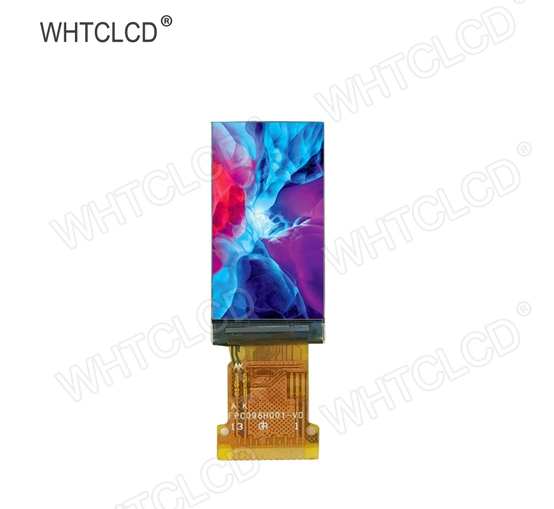

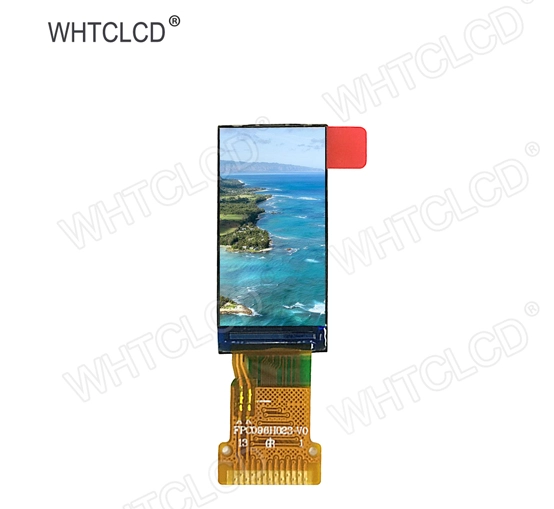

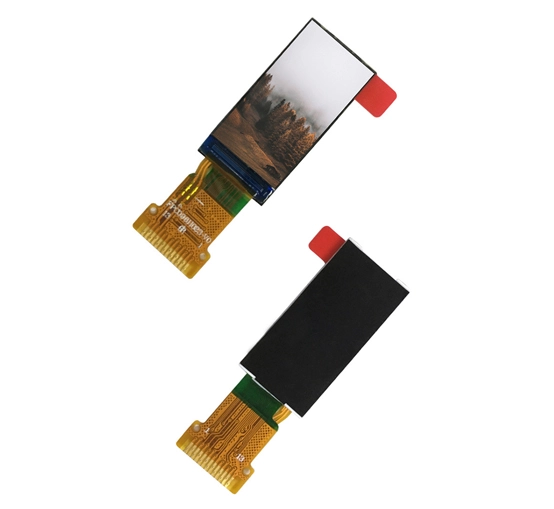

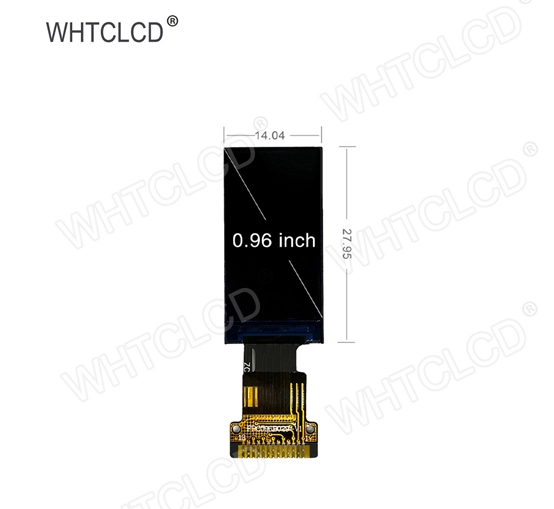

W0096B13S1SI 0.96 Inch Bar Tft LCD

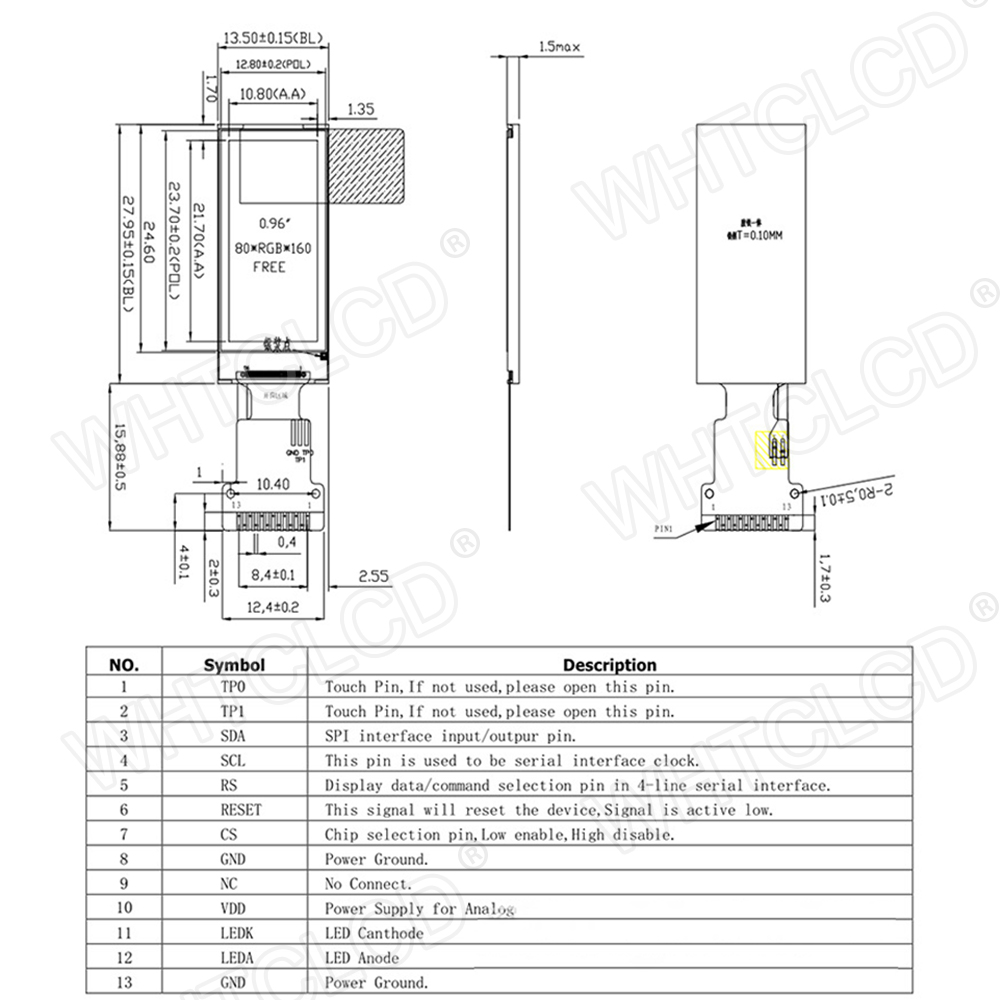

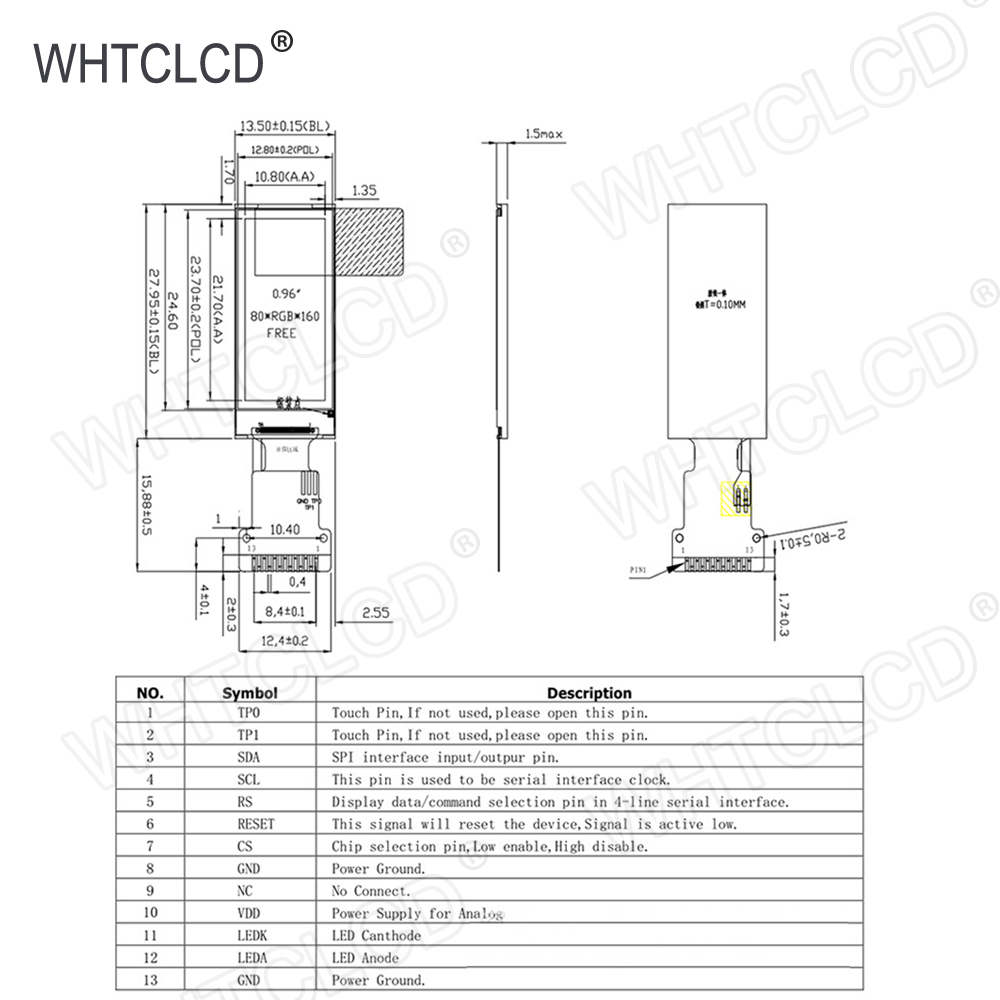

Parameters of 0.96 Inch Bar Tft LCD

Size (inch)	Resolution	Model	LCM Dimension (mm)	Active Area (mm)	View	Interface	Brightness (nits)	OP(℃)
0.96	80*160	W0096B13S1SI(Bar)	13.5* 27.95* 1.55	10.8*21.696	IPS	4-SPI	300	-20~70°C

0.96 Inch Bar Tft LCD
