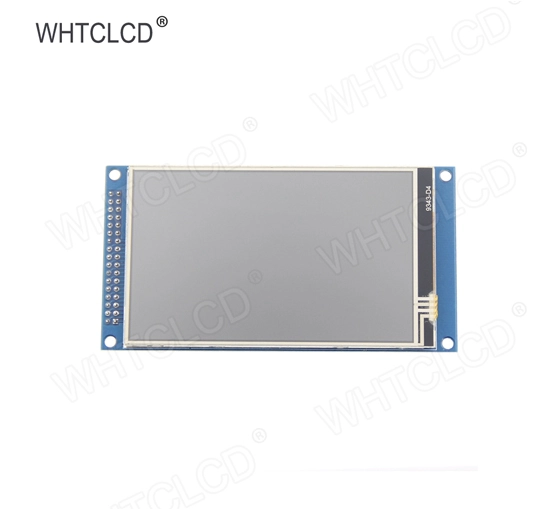

MRB3973 3.97 Inch Parallel-Port Display Module

Name: MRB3973 3.97 Inch Parallel-Port Display Module
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

3.97-inch color screen, support 16BIT RGB 65K color display, display rich colors. 800x480 resolution for clear display. 16-bit parallel bus transmission for fast transfer speed. Supports ALIENTEK STM32 Mini, Elite, WarShip, Explorer, and Apollo development boards for direct plug-in use. Support for touch function. Support SD card function expansion. Provides a rich sample program for STM32 and C51 platforms. Military-grade process standards, long-term stable work. Provide underlying driver technical support.

Products

Parameters of 3.97 Inch Parallel-Port Display Module

Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
3.97	800*480	MRB3973	TN	parallel	59.18111.5110	51.84*86.40	NC	NC / RTP	5V/3.3V	-20~60°C

Name	Parameter
Display Color	16BIT RGB 65K color
SKU	MRB3973
Screen Size	3.97(inch)
Type	TFT
Driver IC	NT35510
Resolution	800*480 (Pixel)
Module Interface	16Bit parallel interface
Active Area	51.84x86.40(mm)
Module PCB Size	59.18x111.51(mm)
Operating Temperature	-10℃~60℃
Storage Temperature	-20℃~70℃
Operating Voltage	3.3V/5V
Power Consumption	TBD
Product Weight(Package containing)	63g

Hardware Description of 3.97 Inch Parallel-Port Display Module

10.1 raspberry pi screen

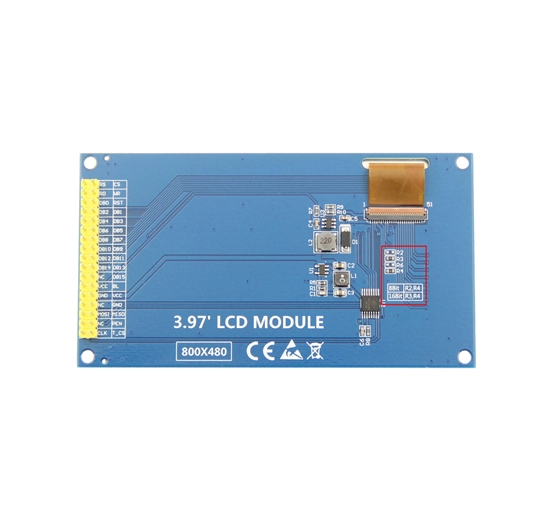

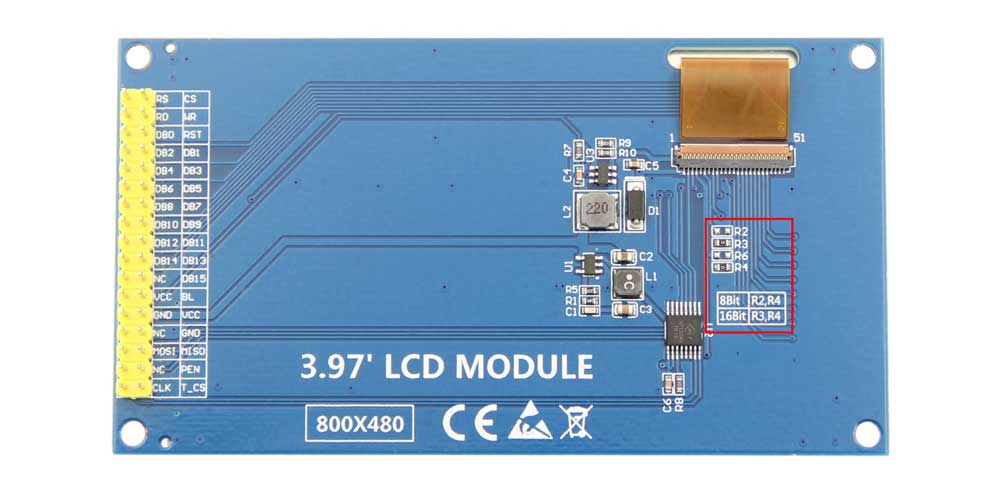

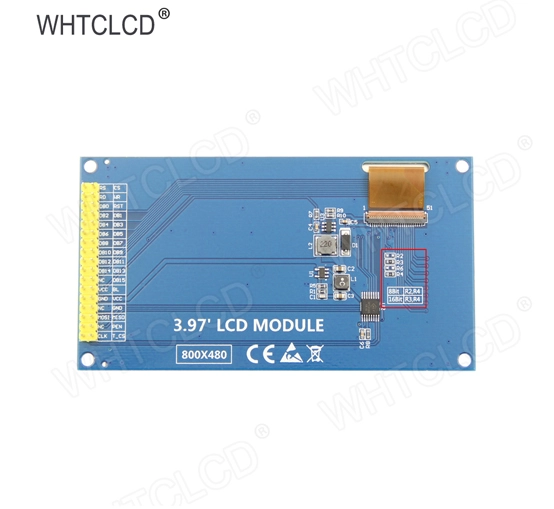

The module hardware supports 8-bit and 16-bit parallel port data bus mode switching (as shown by the red box in Picture 1 above), as follows:

Solder R3 and R4 with 0Ω resistor or short circuit directly, and disconnect R2 and R6: select 16-bit data bus mode (default), use DB0~DB15 data pin
Solder R2 and R4 with 0Ω resistor or short circuit directly, and disconnect R3 and R6: select 8-bit data bus mode, use DB0~D7 data pin

Number	Pin Label	Description
1	CS	LCD reset control pin (low level enable)
2	RS	LCD register/data selection control pin (high level: register, low level: data)
3	WR	LCD write control pin
4	RD	LCD read control pin
5	RST	LCD reset control pin (low level reset)
6	DB0	LCD data bus low 8-bit pin
7	DB1
8	DB2
9	DB3
10	DB4
11	DB5
12	DB6
13	DB7
14	DB8	LCD data bus high 8-bit pin
15	DB9
16	DB10
17	DB11
18	DB12
19	DB13
20	DB14
21	DB15
22	NC	Undefined, reserved
23	BL	LCD backlight control pin (High level light)
24	VCC	Module power positive pin (module has integrated voltage regulator IC, so the power supply can be connected to 5V or 3.3V)
25	VCC
26	GND	Module power ground pin
27	GND	Module power ground pin
28	NC	Undefined, reserved
29	MISO	Touch screen SPI bus data input pin
30	MOSI	Touch screen SPI bus data output pin
31	PEN	Touch screen interrupt detection pin (Low level when a touch occurs)
32	NC	Undefined, reserved
33	T_CS	Touch screen IC chip select control pin (Low level enable)
34	CLK	Touch screen SPI bus clock control pin

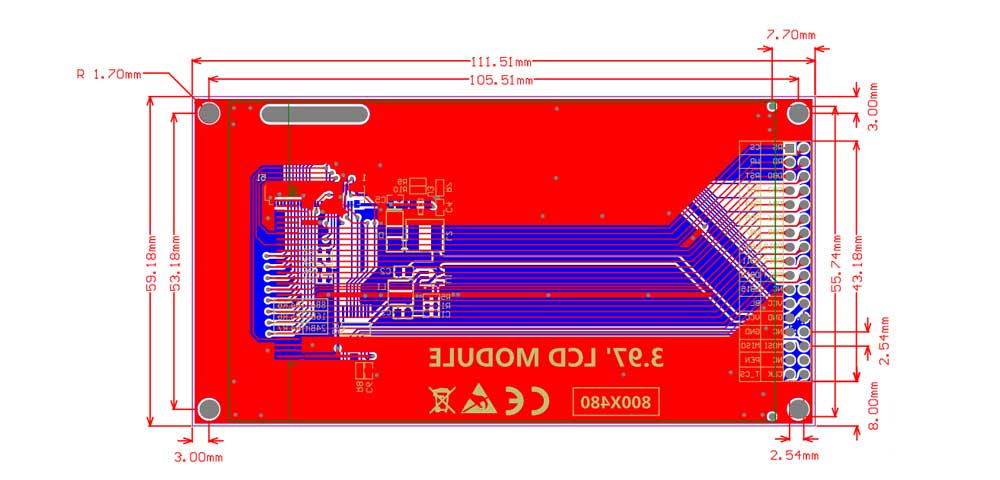

Product Size of 3.97 Inch Parallel-Port Display Module
