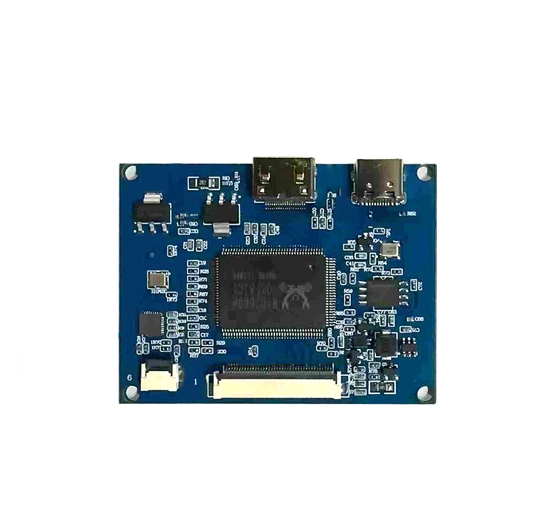

PCB800885 LVDS LCD Controller Board

Parameters of PCB800885 LVDS LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
2	PCB800885	HDMI Type-C Signal input; Supports multiple resolutions, TOUCH PANEL, Supports 7 / 8 / 9 / 10.1 inch LCD screen	LVDS 40pin	NO	Type-C +5V

General Specifications of PCB800885 LVDS LCD Controller Board

The following three PCB products have exactly the same appearance, size and functions, but the LCD screen models they drive are different.

Driver board model	Function Description	Pin sorting
PCB800882	Supports 4.3 / 5 /7 inch LCD screen RGB TTL 40 pin definition	Definition reference AT043TN24V. 1
PCB800883	Supports 7 / 8 / 9 /10.1 inch LCD screen RGB TTL 50 pin definition	Definition reference AT079TN92
PCB800885	Supports 7 / 8 / 9 /10.1 inch LCD screen LVDS 40 pin definition	Definition reference EJ070NA-01J

1. Product description:

The appearance size of this product is 6CMx4.6CMx5.5mm

This driver board can

1. Type-C power supply + touch integrated interface, 5V standard power supply, requires more than 1.5A

2. No buttons and no remote control. It will automatically switch to HDMI channel after HDMI is inserted.

3. 1 HDMI signal input, and this IC supports HDMI1.2

4. HDMI is a high-quality MINI gold-plated socket

5. The screen interface adopts high-quality gold-plated connector-50pin-AT070TN92 compatible definition

6. 6P capacitive screen standard interface, supports GT911/913/928/9110 and other chips

7. The driver board adopts a special circuit design that can drive LED backlights within 10V and supports a maximum current output of 180MA.

9. Support RGB TTL 50pin signal output,

Can support AT070TN92 compatible and other common 50pin LCD screens.

This driver board adopts full patch technology. The relevant parameters are designed according to industrial standards. The shipping standards are according to civilian standards. However, relevant tests will not be carried out. If necessary, please test by yourself.

10. This driver board uses a double-sided FPC seat. The FPC is not connected to the area and can be used directly.
