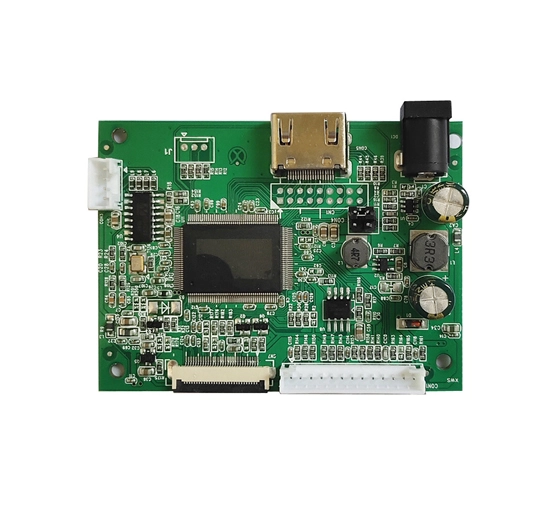

H50-EDP EDP LCD Controller Board

Parameters of H50-EDP EDP LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
5	H50-EDP	HDMI Signal input; Supports multiple resolutions, Sound output Supports 11.6~22 inch LCD screen	EDP 30pin	YES	DC12V

General Specifications of H50-EDP EDP LCD Controller Board

Model: H50-EDP

This is a single chip design with ultra high cost performace of a single HDMI input LCD panel, can support the display less than 24 inch with EDP interface. It is specially design for the displays, provide the more support for 15 inch, 17 inch, 19 inch and 22inch displays.

As it is a display driver board, suppot 2 channel and 2 channel EDP interface, but the board provides the function of hardware to adjust the resolution for display changing and customer's requirements. The independent image scaling to optimize the image quality. Support resolution up to 1920x1080.

1 HDMI signal input

2 Signal output supports EDP 30pin interface LCD screen

3 Power input: DC: 12V

4 Multi functional OSD Operations

5 With remote control function(optional)

Model	H50-EDP
Signal source	HDMI
output interface	EDP 30pin
MAX Resolution support	1200*1920（60~75Hz）
Power input	Type-c +5V
Operation Temperature	-10℃～+60℃
Working humidity	90%RH
Storage temperature	-20℃～+70℃
Save humidity	90%RH
screen size	10.1 inch, 13.3 inch, 14 inch, 15.6 inch, 17.3 inch, 19 inch, 22 inch
A sxreen that Can be driven	10.1 inch, 13.3 inch, 14 inch, 15.6 inch, 17.3 inch, 19 inch, 22 inch EDP, 30pin LCD Screen
