AT102TN03 V.8 10.2 Inch INNOLUX LCD Panel

Name: AT102TN03 V.8 10.2 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

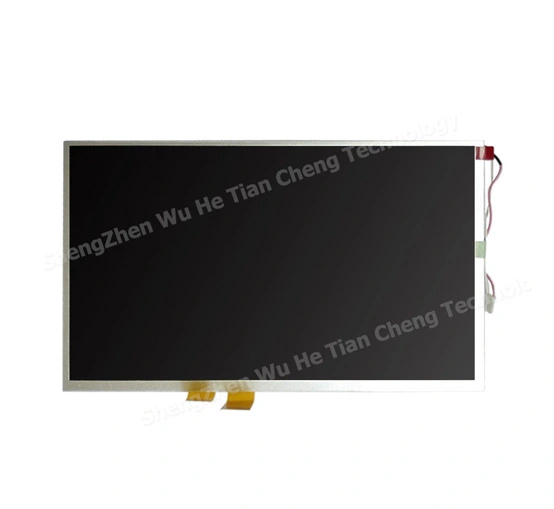

Innolux 10.2 inch tft lcd panel AT102TN03 V.8 with 800(RGB)x480 WVGA resolution, brightness 250 cd/m². This lcd display is working temperature is -30 ~ +85 (°C) and its storage temperature is -30 ~ +85 (°C). Based on its white LED backlight.This model is recommended for industrial use.

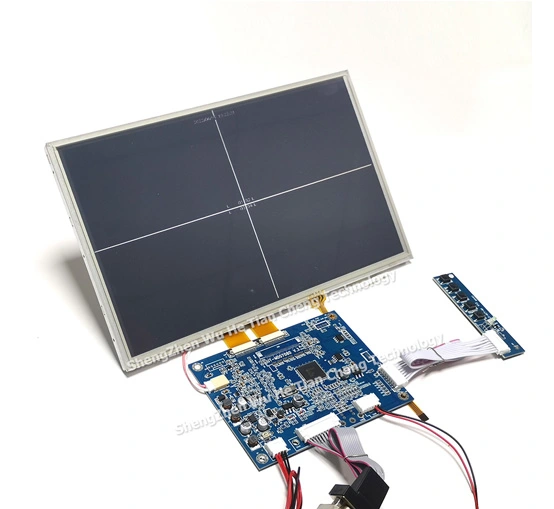

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of AT102TN03 V.8 10.2 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
10.2	800*480	AT102TN03 V.8	235.0145.86.1	222.00*132.48	TN	RGB	350	-30~85°C

General Specifications of AT102TN03 V.8 10.2 Inch INNOLUX LCD Panel

AT102TN03 V.8

Manufacturer	INNOLUX
Model Name	AT102TN03 V.8
Screen Size	10.2 inch
Pixel Number	800(RGB)×480, WVGA
Active Area(mm)	222.00 x 132.48 (W×H)
Outline(mm）	235.0 x 145.8 x 6.1 (W×H×D)
Pixel Pitch(mm)	0.0925 x 0.276 (W×H)
Treatment	Anti-Glare
Luminance	350 cd/m² (Typ.)
Contrast Ratio	300 : 1 (Typ.) (TM)
Viewing Angle	65/65/45/65(CR≥10) Left / Right/UP /Down
Response	15/20 (Typ.)(Tr/Td) ms
Work Mode	TN , Normally white, Transmissive
Color Depth	262K , 50% NTSC
Backlight	WLED , 20K hours, without Driver
Net Weight	309g
Touchscreen	without
Signal Type/interface Type	TTL (1 ch, 6-bit) , 60 pins , FPC
Voltage Supply	+3.3V
Max. Ratings	Storage Temp.: -30 ~ +85 (°C)
Max. Ratings	Operating Temp.: -30 ~ +85 (°C)
Package	Innolux original package;
Package	25 pcs/ctn
