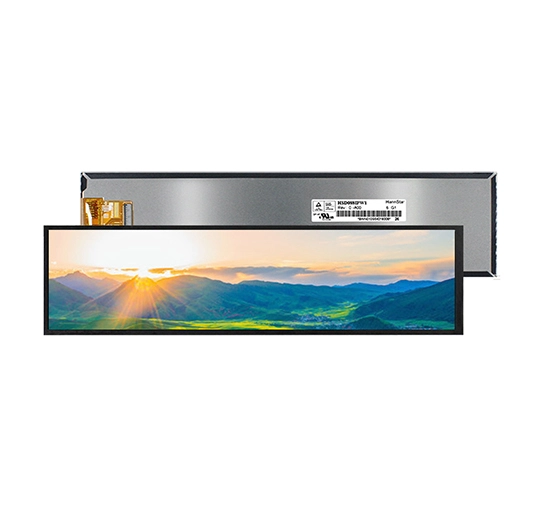

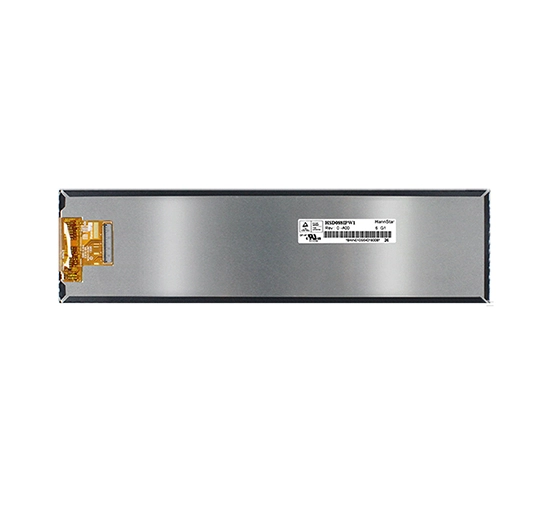

W088B40Y3MI 8.8 Inch IPS TFT LCD

W088B40Y3MI is a transmissive type color active matrix liquid crystal display this product composed of a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 218.88*54.72 and the native resolution is 1920*480 and can display up to 65K/262K/16.7M colors, Applications: wire tester, sphygmomanometer, ECG machine, Robots, Handheld devices.

Products

Parameters of 8.8 Inch IPS TFT LCD

W088B40Y3MI

FeatureSpecificationsUnit
Size8.8inch
Technology Typea-si TFT
Resolution1920(RGB)x480
Pixel pitch0.1095(H)*0.1095(V)mm
Pixel arrangementRGB-stripe
Color Depth65K/262K/16.7M
Display ModeTFT, Transmissive, Normally black
Driver IC~
Surface Treatment`
Viewing DirectionALL
Gray Viewing Direction`
LCM (W x H x D) (mm)231(W)×64.31(H)×4.8(D) mmmm
Active Area(mm)218.88(W)×54.72(H) mmmm
Touch PanelSupport  CTP/RTP
Brightness300-1000nits
Weight (g)16g
InterfaceMiPi  40pin
Operation Temperature-20~70℃
Storage Temperature-30~80℃
Module lifetime(Hours)50,000-100,000℃

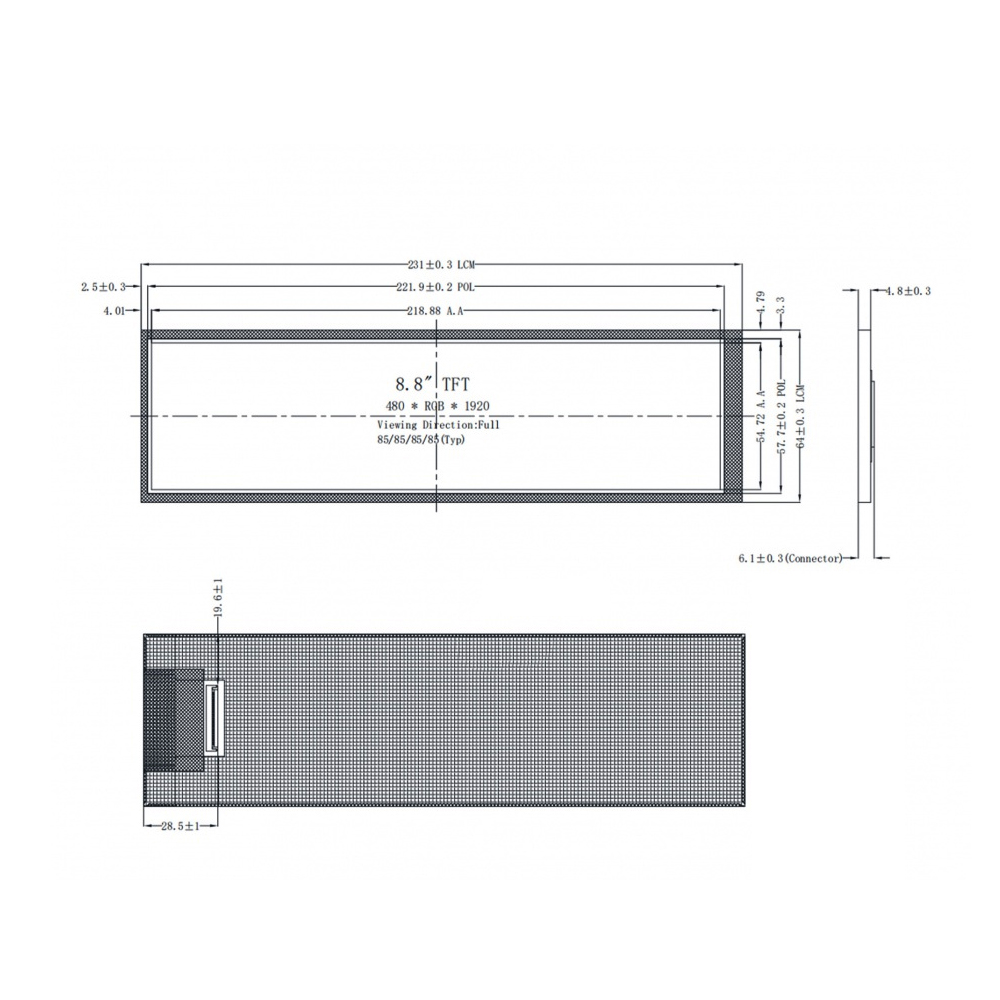

Structural Size of 8.8 Inch IPS TFT LCD

W088B40Y3MI

ips lcd tft
