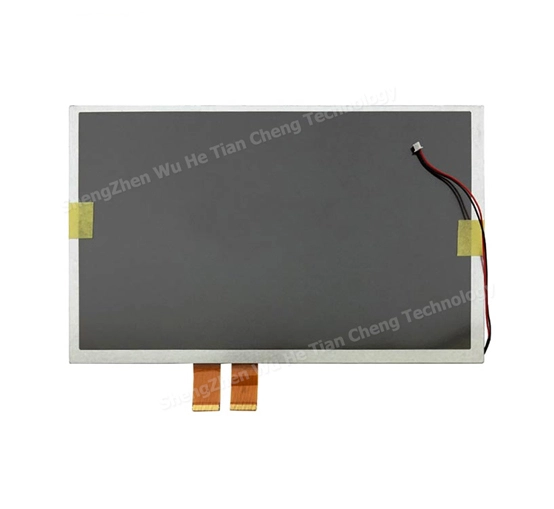

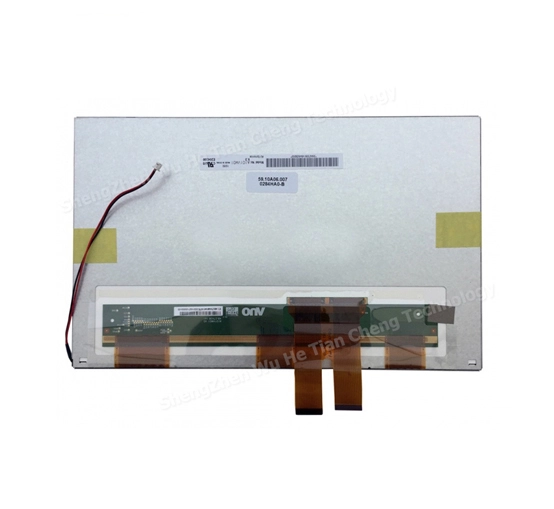

A101VW01 V3 10.1 AUO LCD Panel

Name: A101VW01 V3 10.1 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

AUO 10.1 inch tft lcd panel A101VW01 V3 with 800(RGB)x480 WVGA resolution, brightness 300 cd/m², RGB TTL 60pin. This lcd display's working temperature is -10 ~ +60 (°C) and it's storage temperature is -20 ~ +70 (°C). Based on it's white LED backlight. This model is recommended for industrial, Digital photo frame and DVD use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of A101VW01 V3 10.1 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
10.1	800*480	A101VW01 V3	235145.95.4	219.6*131.76	TN	RGB	300	-10~60°C

General Specifications of A101VW01 V3 10.1 AUO LCD Panel

A101VW01 V3

Manufacturer	AUO
Model Name	A101VW01 V3
Screen Size	10.1 inch
Pixel Number	800(RGB)×480 , WVGA
Active Area(mm)	219.6 x 131.76 (H×V)
Outline(mm）	235(W) x 145.9(H) x 5.4 (H×V×D)
Bezel Area(mm)	221.6 × 133.76 (H×V)
Treatment	Anti-Glare
Luminance	300 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	65/65/45/65 (CR≥10)
Viewing Angle	Left/Right/UP/Down
Response	12/18(Typ.)(Tr+Td) ms
Work Mode	TN , Normally white , Transmissive
Color Depth	262K , 48% NTSC
Backlight	WLED , 20K hours , without LED Driver
Net Weight	315g (Typ.)
Touchscreen	without
Signal Type/interface Type	Parallel RGB (1 ch, 6-bit) , FPC , 60 pins
Voltage Supply	3.3/8.8/15/-7.0 V (Typ.)(VCC/AVDD/VGH/VGL)
Max. Ratings	Storage Temp.: -20 ~ +70 (°C)
Max. Ratings	Operating Temp.: -10 ~ +60 (°C)
Package	AUO Original package;
	20 pcs/ carton;
	weight : 10.0Kgs;
	size : 520(L) x 340(W) x 250(H)mm
