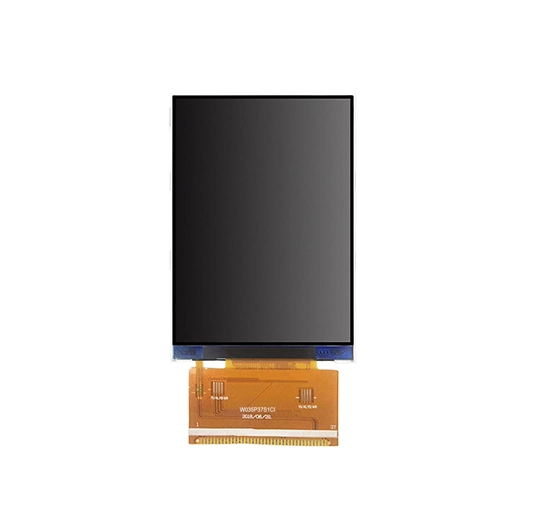

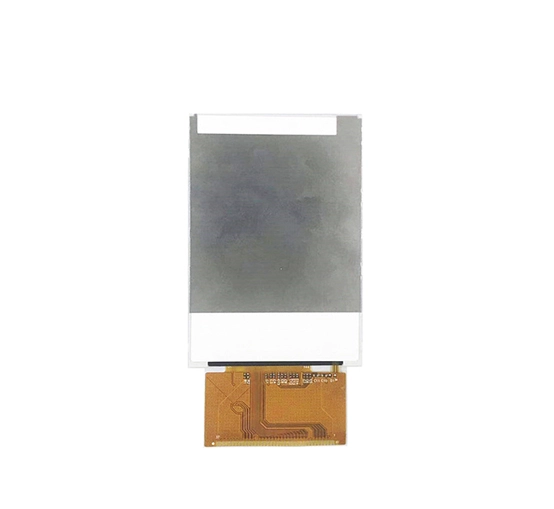

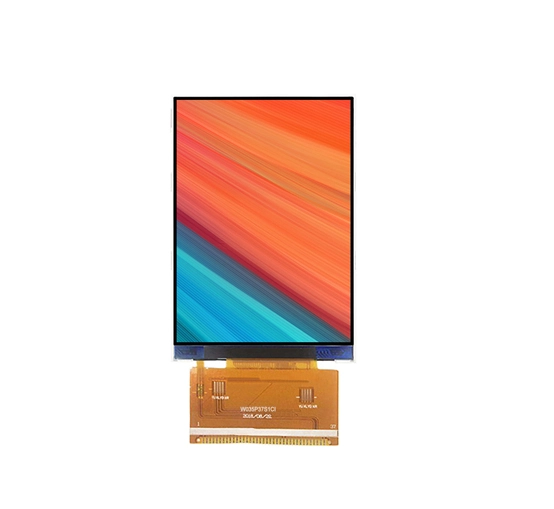

W035P37S1RI-A02H0 3.5 Inch Sunlight Readable LCD Display

Name: W035P37S1RI-A02H0 3.5 Inch Sunlight Readable LCD Display
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

W035P37S1RI is a transmissive type color active matrix liquid crystal display this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 48.96*73.44 and the native resolution is 320*480, Applications: digital watches，wire tester, sphygmomanometer, ECG machine, Robots,Handheld devices.

Products

Parameters of 3.5 Inch Sunlight Readable LCD Display

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
3.5	320*480	W035P37S1RI-A02H0	54.5832.3	48.96*73.44	IPS	MCU	300~1500	-20~70°C

General Specifications of 3.5 Inch Sunlight Readable LCD Display

W035P37S1RI-A02H0

Feature	Specifications	Unit
Size	3.5	inch
Technology Type	a-si TFT
Resolution	320(RGB)x480
Pixel pitch	~	mm
Pixel arrangement	RGB-stripe
Color Depth	262K
Display Mode	TFT,Transmissive,Normally black
Driver IC	ST7796S / ILI9488
Surface Treatment	`
Viewing Direction	ALL
Gray Viewing Direction	`

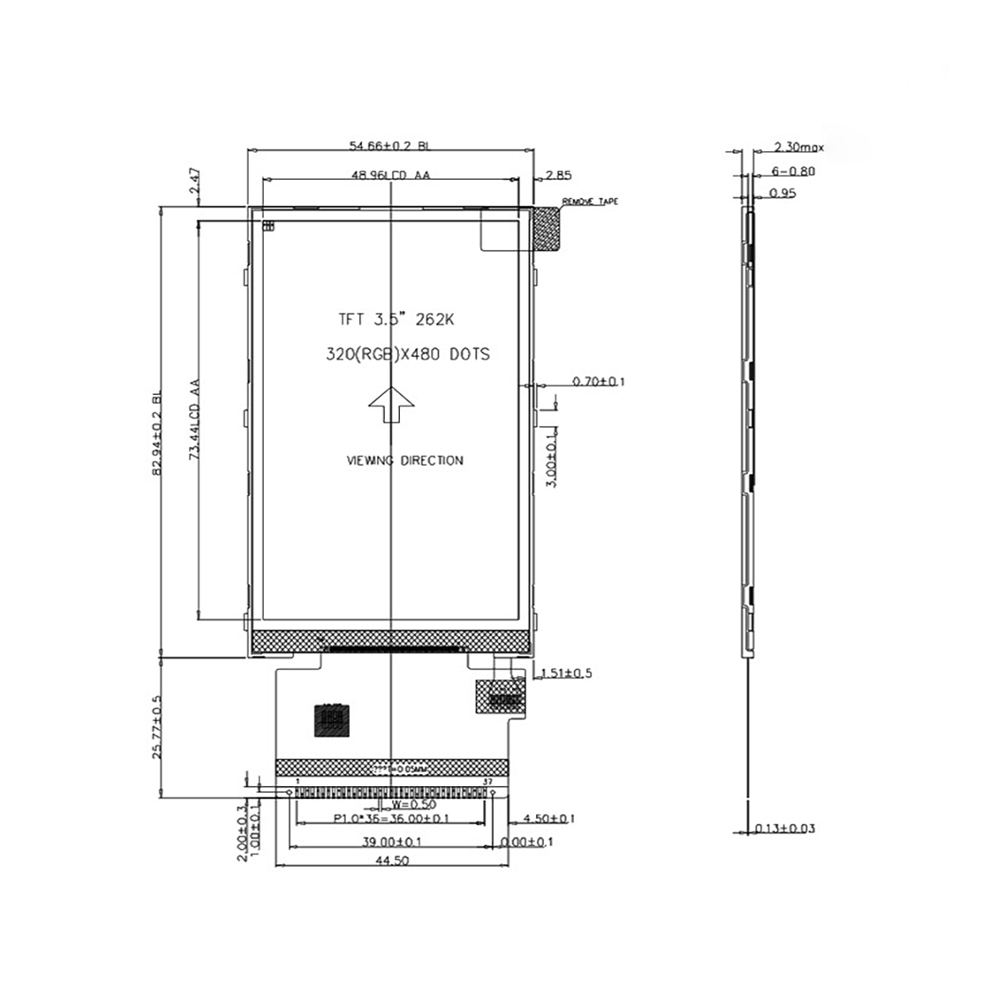

LCM (W x H x D) (mm)	54.66(W)×83(H)×2.3(D) mm	mm
Active Area(mm)	48.96(W)×73.44(H) mm	mm
Touch Panel	Support CTP/RTP
Brightness	300	nits
Weight (g)	16	g
Interface	MCU FPC 37pin
Operation Temperature	-20~70	℃
Storage Temperature	-30~80	℃
Module lifetime(Hours)	50,000-100,000	℃

Pad N	0. Pad Name
1	GND	19	DB10
2	VDD	20	DB11
3	VDD	21	DB12
4	CS	22	DB13
5	RS	23	DB14
6	WR	24	DB15
6	WR	25	GND
7	RD	25	GND
7	RD	26	Y-
8	RESET	26	Y-
8	RESET	27	X-
9	DBO	27	X-
10	DB1	28	Y+
10	DB1	29	X+
11	DB2	29	X+
11	DB2	30	LEDK1
12	DB3	31	LEDK2
13	DB4	32	LEDK3
14	DB5	33	LEDK4
15	DB6	34	LEDK5
16	DB7	35	LEDA
17	DB8	36	LEDA
18	DB9	37	GND

3.5 Inch Sunlight Readable LCD Display
