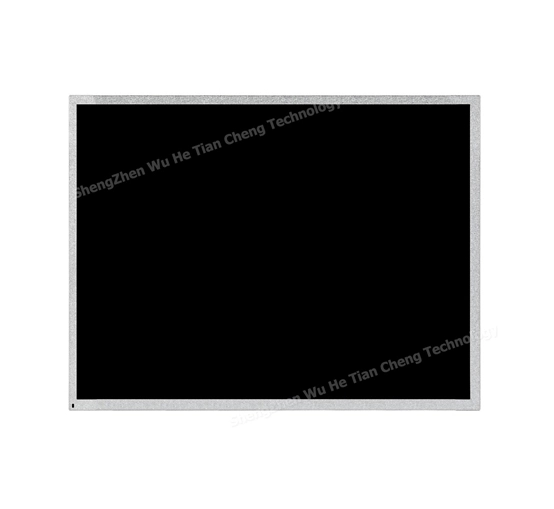

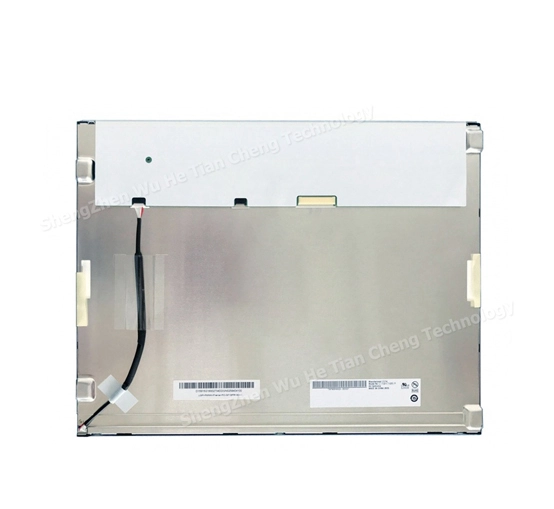

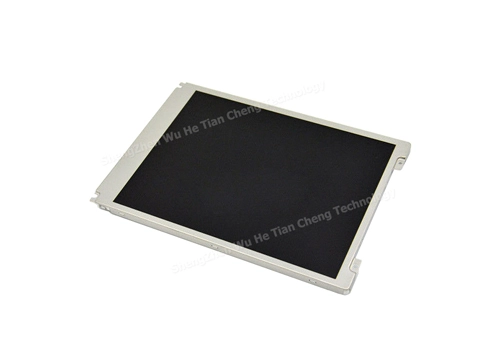

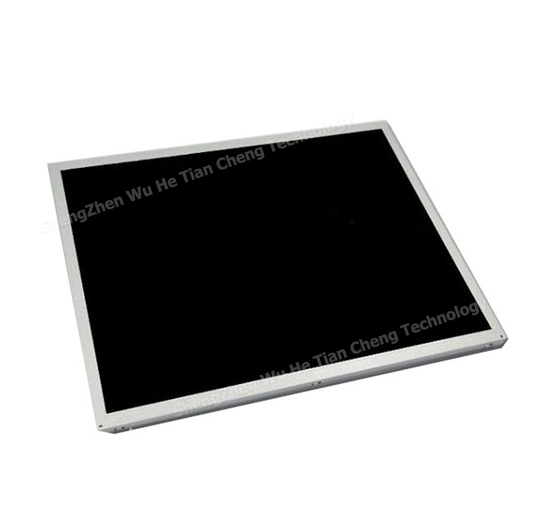

G150XTN06.0 15.0 AUO LCD Panel

Name: G150XTN06.0 15.0 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

AUO 15 inch tft lcd panel G150XTN06.A with 1024(RGB)x768 XGA resolution, brightness 1800 cd/m². This lcd display is working temperature is -30 ~ +70 (°C) and it's storage temperature is -30 ~ +70 (°C). Based on it's white LED backlight. This model is recommended for industrial and outdoor highlight use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G150XTN06.0 15.0 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
15	1024*768	G150XTN06.0	326.5253.512.5	304.128*228.096	TN	LVDS	450	-30~85°C

General Specifications of G150XTN06.0 15.0 AUO LCD Panel

Manufacturer	AUO
Model Name	G150XTN06.A
Screen Size	15 inch
Pixel Number	1024(RGB)×768 , XGA
Active Area(mm)	304.128(H) x 228.096(V)
Bezel Area(mm)	304.128(H) × 228.096(V)
Treatment	Anti-glare
Luminance	1800 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	80/80/70/80 (Typ.)
Response	5.7/2.3 ms
Work Mode	TN , Normally white , Transmissive
Color Depth	262K/16.2M , 60% NTSC
Backlight	WLED , 50K hours , with LED Driver
Net Weight	1.00Kgs
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit) , 20 pins
Voltage Supply	+3.3 V
Max. Ratings	Storage Temp.: -30 ~ +70 (°C)
Max. Ratings	Operating Temp.: -30 ~ +70 (°C0
Package	AUO Original package;
	14 pcs/Carton;
	weight: 16.5Kg /Carton;
	size: 430(L) x 370(W) x 350(H)mm
