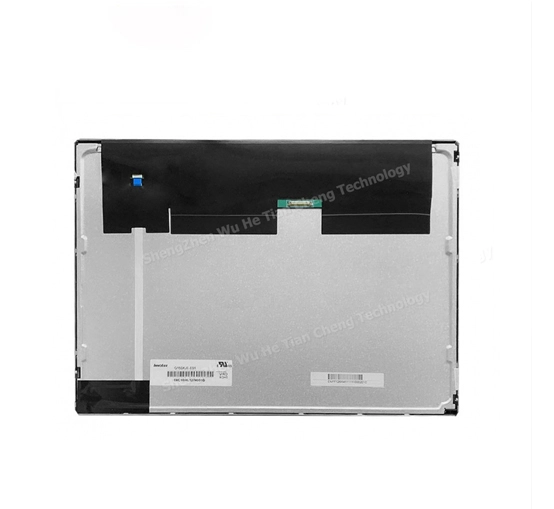

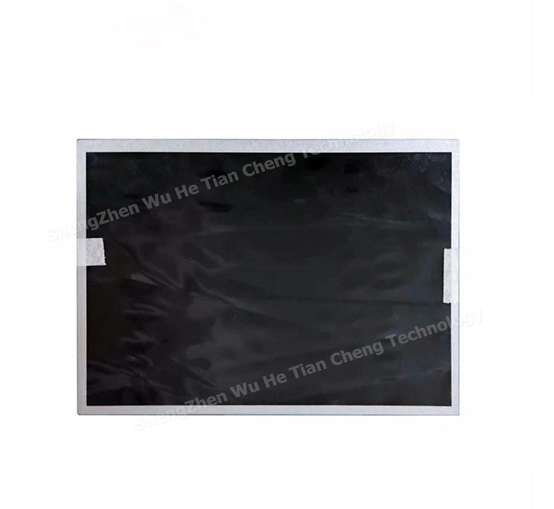

G150XJE-E01 15.0 Inch INNOLUX LCD Panel

Name: G150XJE-E01 15.0 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 15 inch IPS TFT LCD Panel G150XJE-E01 with 1024(RGB)x768 XGA resolution, brightness 400 cd/m², 30 pins eDP. This lcd display is working temperature is -20 ~ +70 (°C) and its storage temperature is -30 ~ +70 (°C). Based on its white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G150XJE-E01 15.0 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
15	1024*768	G150XJE-E01	326.5253.59.1	304.1*228.1	IPS	EDP	400	-30~85°C

General Specifications of G150XJE-E01 15.0 Inch INNOLUX LCD Panel

G150XJE-E01

Manufacturer	INNOLUX
Model Name	G150XJE-E01
Screen Size	15 inch
Pixel Number	1024(RGB)×768 , XGA
Active Area(mm)	304.1 x 228.1 (H×V)
Outline(mm）	326.5 x 253.5 x 9.1 (H×V×D)
Pixel Pitch(mm)	0.297 x 0.297 mm (H×V)
Treatment	Hard Coating (3H), Anti-Glare
Luminance	400 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	88/88/88/88(CR≥10) Left / Right/UP /Down
Response time	16/7 (Typ.)(Tr/Td) ms
Display Mode	NPVA , Normally black, Transmissive
Color Depth	262K/16.7M , 72% NTSC
Backlight	WLED, 70K hours, with LED Driver
Net Weight	980g
Touchscreen	without
Signal Type/interface Type	eDP (1 Lane) , eDP1.2 , 30 pins
Voltage Supply	+3.3V
Max. Ratings	Storage Temp.: -30 ~ +70 (°C)
Max. Ratings	Operating Temp.: -20 ~ +70 (°C)
Package	Innolux Original package;
Package	16 pcs/ctn
