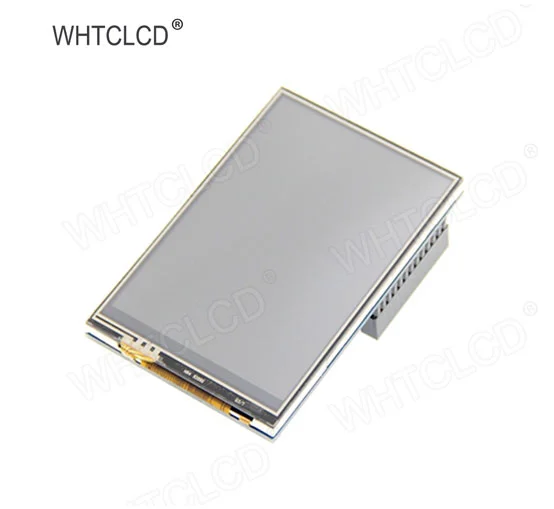

MPI3501 3.5 Raspberry Pi GPIO Display

Name: MPI3501 3.5 Raspberry Pi GPIO Display
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

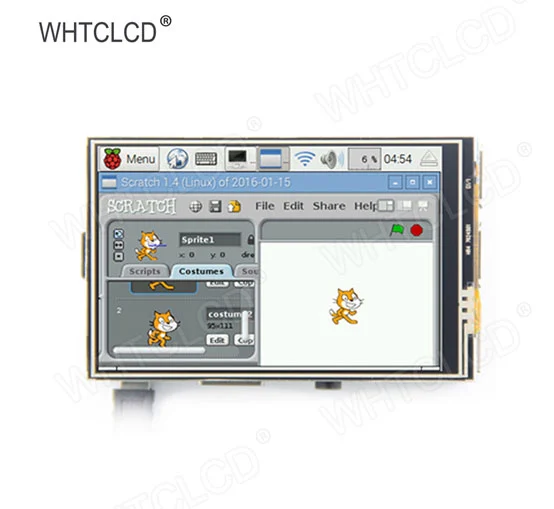

320×480 resolution. Resistive touch control. Supports any revision of Raspberry Pi (directly-pluggable). Compatible with Raspberry Pi A, B, A+, B+, 2B, 3B, 3B+, 4B versions. Drivers provided (works with your own Raspbian/Ubuntu directly). Size perfectly fits the Pi. High quality immersion gold surface plating. Supports Raspbian system, ubuntu system, kali Linux system.

Products

Parameters of 3.5 Raspberry Pi GPIO Display

Raspberry Pi GPIO Display
Remark: All Models Support Capacitive or Resistive Touch Panel.
Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
3.5	320*480	MPI3501	TN	SPI	55.6085.426	48.96x73.44	NC	RTP	0.13A*5V	-20~60°C

SKU	MPI3501
LCD Type	TFT
LCD Interface	SPI(Fmax:32MHz)
Touch Screen Type	Resistive
Touch Screen Controller	XPT2046
Colors	65536
Driver IC	ILI9486
Backlight	LED
Resolution	320*480 (Pixel)
Backlight Current	120ma
Power Dissipation	0.13A*5V
Operating Temp. (℃)	-20~60
Active Area	48.96x73.44(mm)
Product Size	85.42*55.60(mm)
Package Size	1187234 (mm)
Rough Weight(Package containing)	75 (g)

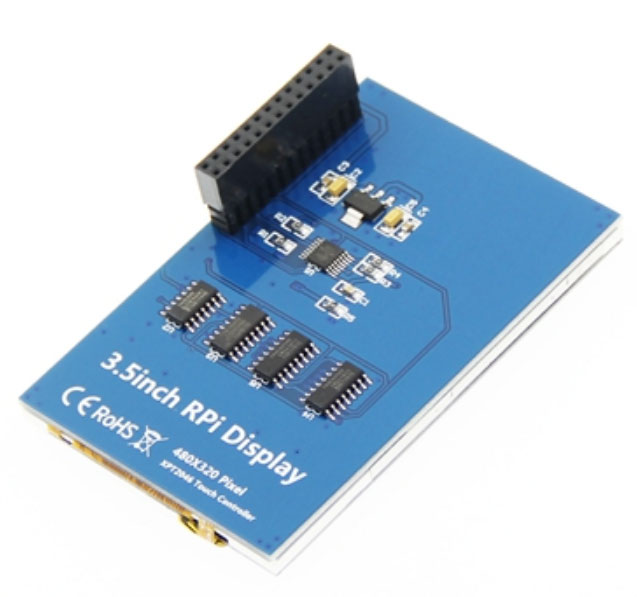

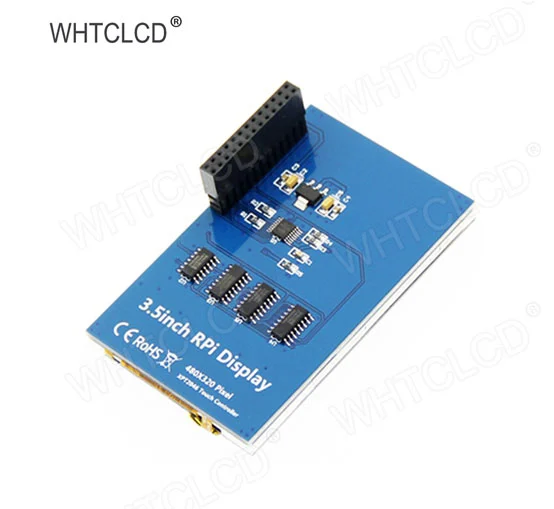

Hardware Description of 3.5 Raspberry Pi GPIO Display

stm32 f103c8t6

PIN NO.	SYMBOL	DESCRIPTION
1, 17	3.3V	Power positive (3.3V power input)
2, 4	5V	Power positive (5V power input)
3, 5, 7, 8, 10, 12, 13, 15, 16	NC	NC
6, 9, 14, 20, 25	GND	Ground
11	TP_IRQ	Touch Panel interrupt, low level while the Touch Panel detects touching
18	LCD_RS	Instruction/Data Register selection
19	LCD_SI / TP_SI	SPI data input of LCD/Touch Panel
21	TP_SO	SPI data output of Touch Panel
22	RST	Reset
23	LCD_SCK / TP_SCK	SPI clock of LCD/Touch Panel
24	LCD_CS	LCD chip selection, low active
26	TP_CS	Touch Panel chip selection, low active

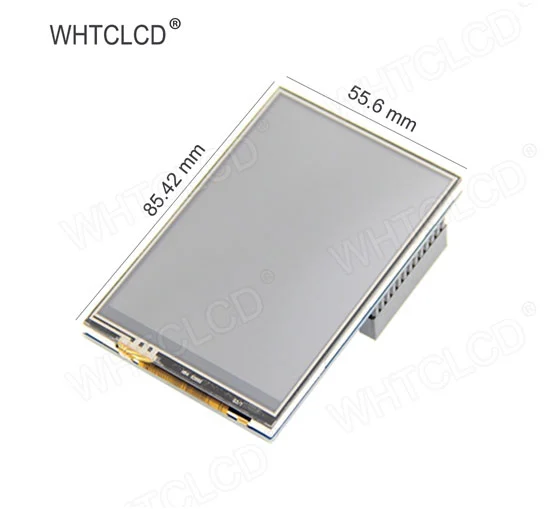

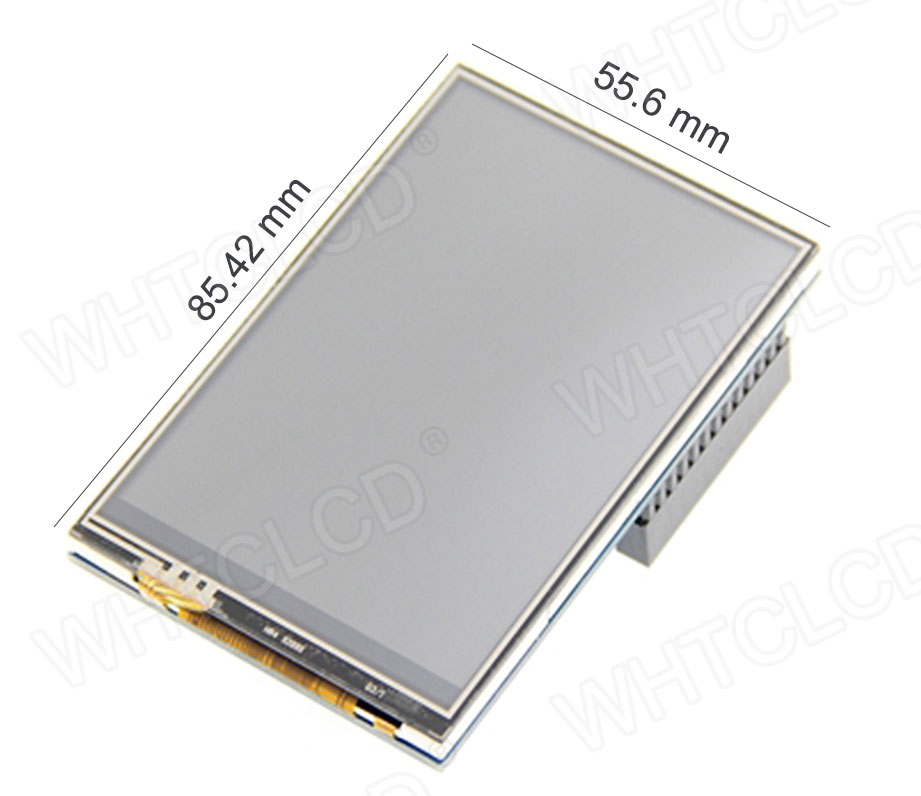

Product Size of 3.5 Raspberry Pi GPIO Display

stm32 fpga board
