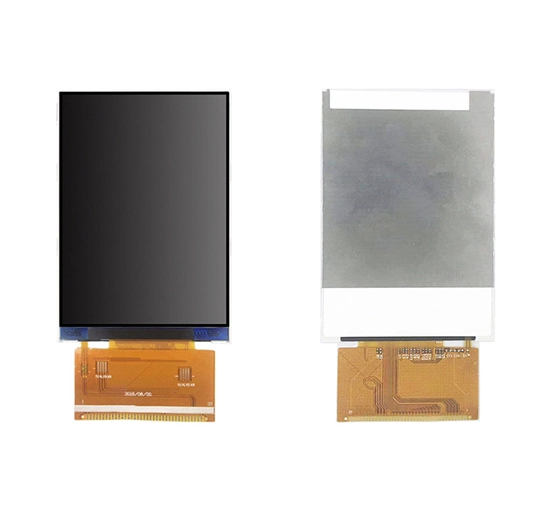

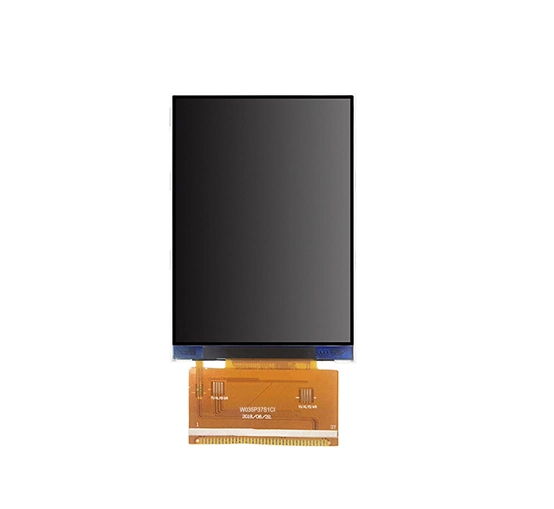

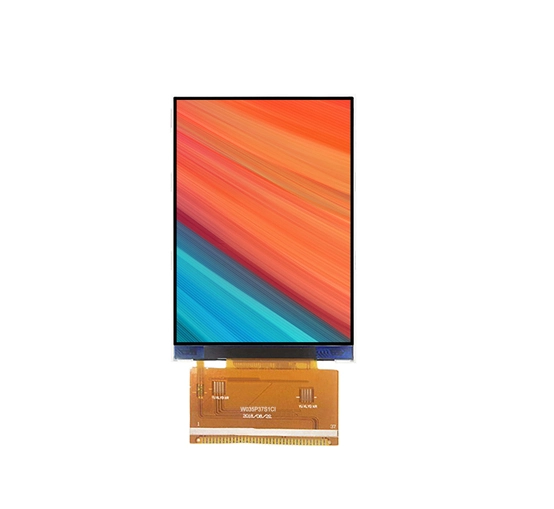

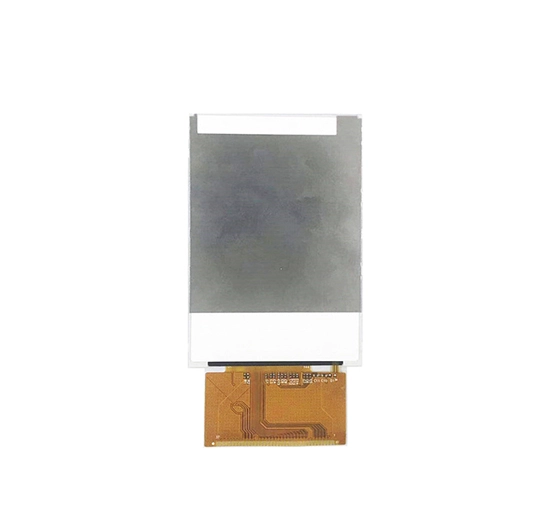

W035P37S1RI-A02H0 3.5 Inch IPS TFT LCD

Name: W035P37S1RI-A02H0 3.5 Inch IPS TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

3.5 Inch IPS TFT LCD is a transmissive type color active matrix liquid crystal display this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 70.08*52.56 and the native resolution is 320*240, Applications: digital watches，wire tester，sphygmomanometer, ECG machine，Handheld devices.

Products

Parameters of 3.5 Inch IPS TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
3.5	320*480	W035P37S1RI-A02H0	54.5832.3	48.96*73.44	IPS	MCU	300~1500	-20~70°C

lnput/Output Terminals of 3.5 Inch IPS TFT LCD

W035P37S1RI-A02H0

Pod No.	Pad Name
1	GND
2	VDD
3	VDD
4	GS
5	RS
6	WR
7	RD
8	RESET
9	DB0
10	DB1
11	DB2
12	DB3
13	D84
14	DB5
15	DB6
16	DB7
17	DB8
18	DB9
19	DB10
20	DB11
21	DB12
22	DB13
23	DB14
24	DB15
25	GND
26	Y-
27	X-
28	Y+
29	X+
30	LEDK1
31	LEDK2
32	LEDK3
33	LEDK4
34	LEDK5
35	LEDA
36	LEDA
37	GND

General Specifications of 3.5 Inch IPS TFT LCD

W035P37S1RI-A02H0

Feature	Specifications	Unit
Size	3.5	inch
Technology Type	a-si TFT
Resolution	320(RGB)x480
Pixel pitch	~	mm
Pixel arrangement	RGB-stripe
Color Depth	262K
Display Mode	TFT,Transmissive,Normally black
Driver IC	ST7796S / ILI9488
Surface Treatment	`
Viewing Direction	ALL
Gray Viewing Direction	`
LCM (W x H x D) (mm)	54.66(W)×83(H)×2.3(D) mm	mm
Active Area(mm)	48.96(W)×73.44(H) mm	mm
Touch Panel	Support CTP/RTP
Brightness	300	nits
Weight (g)	16	g
Interface	MCU FPC 37pin
Operation Temperature	-20~70	℃
Storage Temperature	-30~80	℃
Module lifetime(Hours)	50,000-100,000	℃

Structural Size of 3.5 Inch IPS TFT LCD

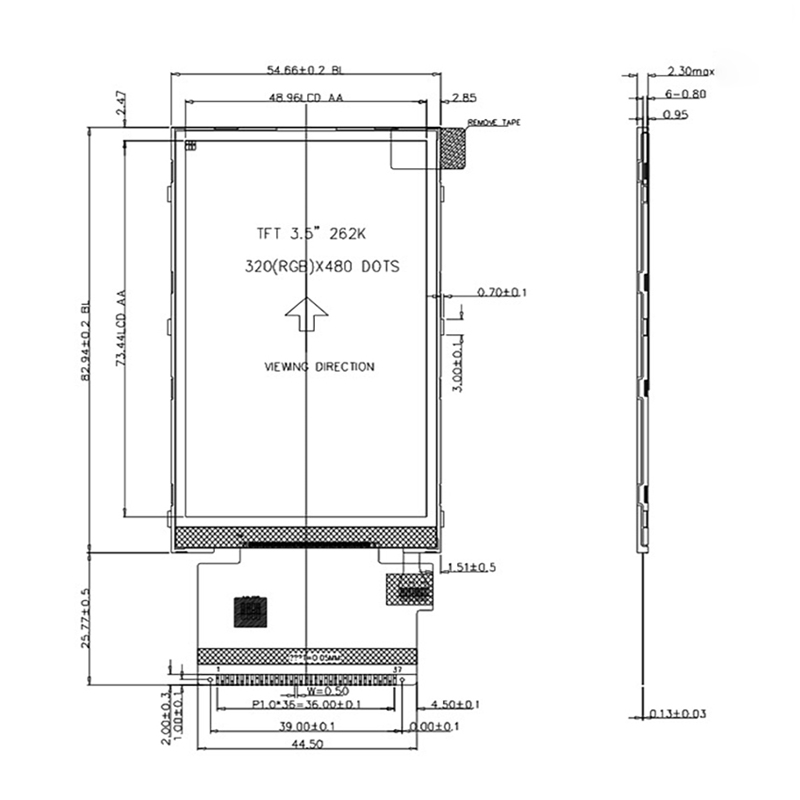

W035P37S1RI-A02H0

3.5 Inch IPS TFT LCD
