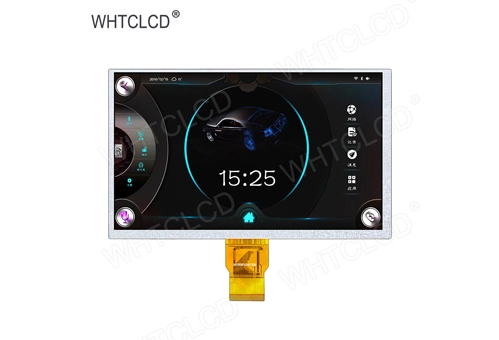

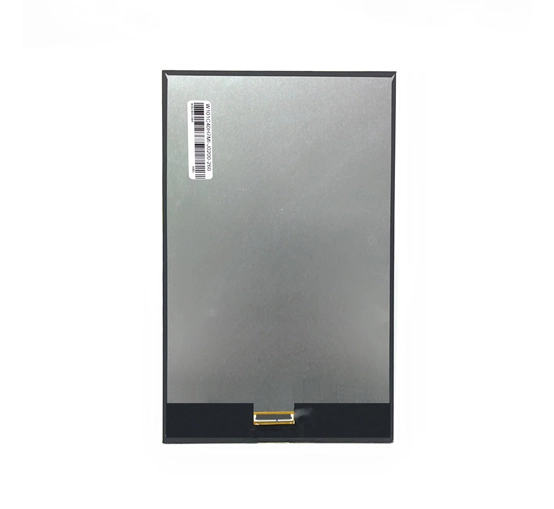

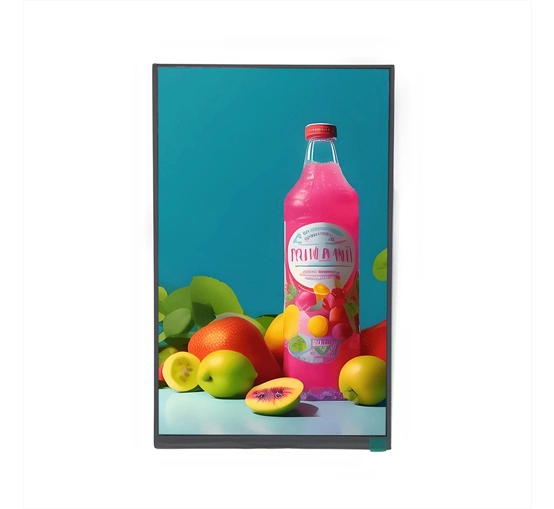

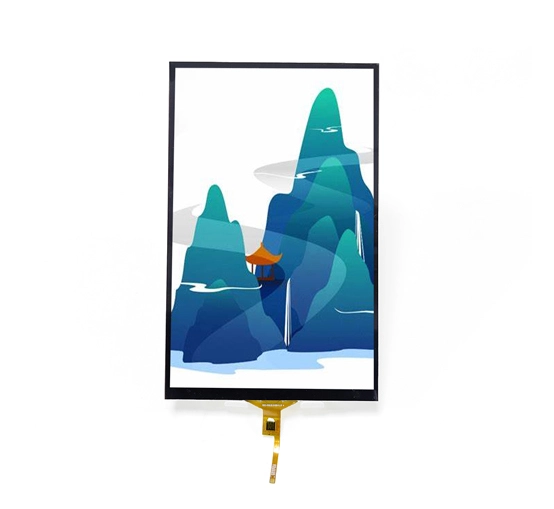

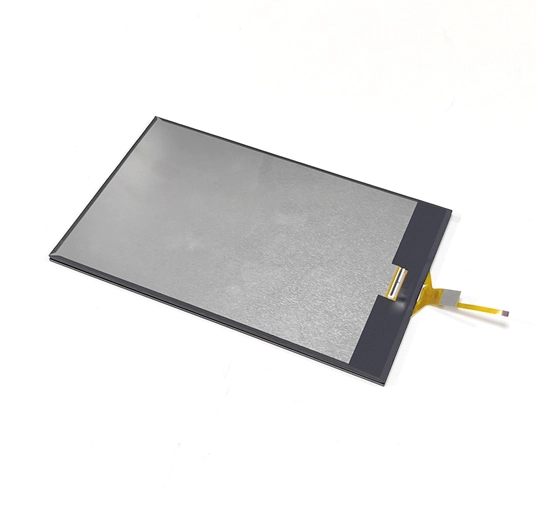

W101C40H2MI-J04B0 10.1 Inch IPS TFT LCD

Name: W101C40H2MI-J04B0 10.1 Inch IPS TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

W101C40H2MI is a transmissive type color active matrix liquid crystal display this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 135.36*216.58 and the native resolution is 800*1280 and can display up to 262K/16.7M colors, Applications: wire tester, sphygmomanometer, ECG machine, Robots, Handheld devices, Automotive instrument, recorder and industrial display.

Products

Parameters of 10.1 Inch IPS TFT LCD

Size (inch)	Resolution	Model	LCM Dimension (mm)	Active Area (mm)	View	Interface	Brightness (nits)	OP(℃)
10. 1	800*1280	W101C40H2MI-J04B0	143.06228.664	135.36*216.58	IPS	MIPI	300~1500	-30~80°C

General Specifications of 10.1 Inch IPS TFT LCD

W101C40H2MI-J04B0

Feature	Specifications	Unit
Size	10.1	inch
Technology Type	a-si TFT
Resolution	800(RGB)x1280
Pixel pitch	~	mm
Pixel arrangement	RGB-stripe
Color Depth	262K/16.7M
Display Mode	TFT, Transmissive, Normally black
Driver IC	~
Surface Treatment	`
Viewing Direction	IPS
Gray Viewing Direction	`
LCM (W x H x D) (mm)	143.06(W)×228.66(H)×4(D) mm	mm
Active Area(mm)	1356.36(W)×216.58(H) mm	mm
Touch Panel	Support CTP/RTP
Brightness	300-800	nits
Weight (g)	`	g
Interface	MiPi 40pin Connector
Operation Temperature	-20~70	℃
Storage Temperature	-30~85	℃
Module lifetime(Hours)	50,000-100,000	℃
