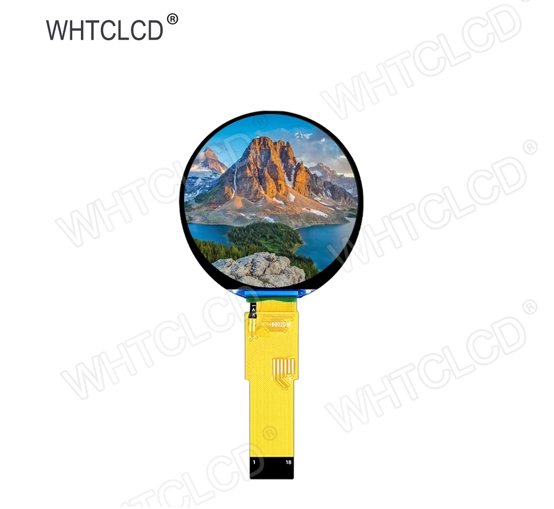

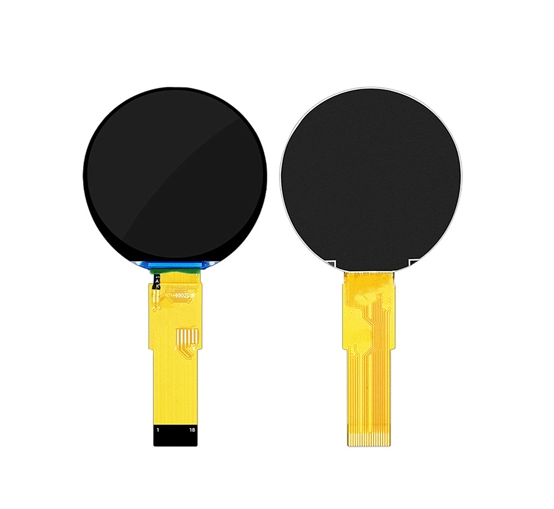

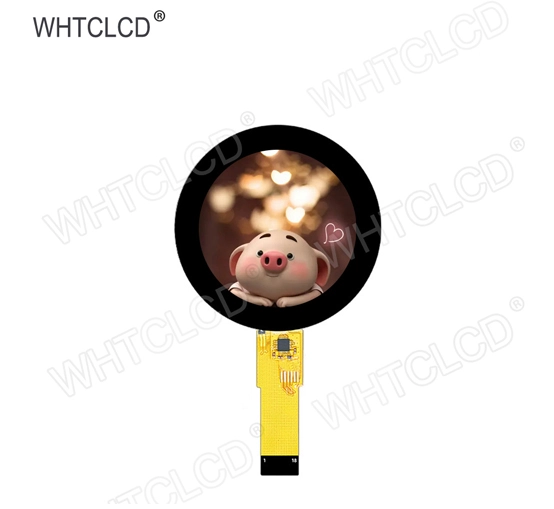

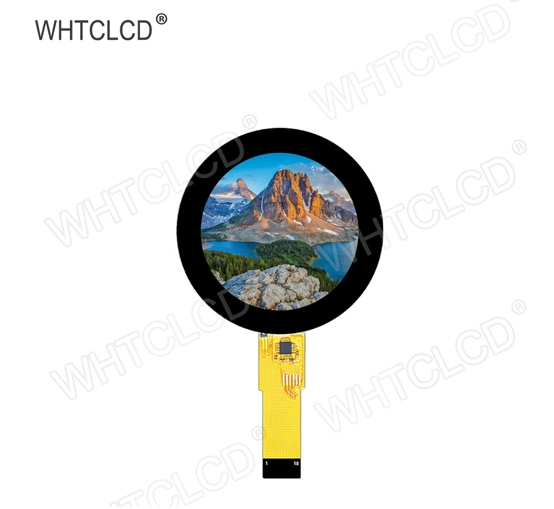

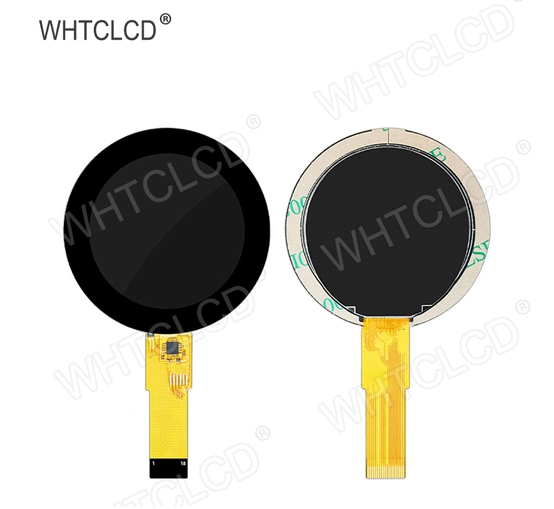

W0146R18S1SI 1.46 Inch Round TFT LCD

Products

Parameters of 1.46 Inch Round TFT LCD

Size  (inch)ResolutionModelLCM Dimension    (mm)Active Area   (mm)ViewInterfaceBrightness    (nits)OP(℃)
1.46360*360W0146R18S1SI (Round)39.3*40.96*1.636.94*36.94IPSQSPI
-20~70°C


Description of 1.32 Inch Round TFT LCD

W0146R18S1SI

Pin
No.		SymbolDescription
1 KBack-light Cathode
2 ABack-light Anode
3 SDA0bidirectional IO in two-line /four-line mode and serial
output in single-line mode for FLASH1
4 SDA1Bi-directional IO in double-line /four-wire mode and serial
input in single-line mode,suitable for FLASH1.
5 SDA2Bi-directional IO in four-wire mode,suitable for FLASH 1
6 SDA3Bi-directional IO in four-wire mode,suitable for FLASH 1
7 CSChip select input pin
8 SCLSerial clock input for SPl interface.
9 SDAWrite enable clock input pin.
10 RSTNC
11 IOVCCPower supply for interface logic circuits(1.8V-2.8V)
12 VCCPower supply for interface logic circuits(2.8V)
13 GNDPower Ground
14 TP-INTTP-INT
15 TP-SDATP-SDA
16 TP-SCLTP-SCL
17 TP-RSTTP-RST
18 TP-VCCTP-VCC

circular tft
