MPI1001 10.1 Inch Raspberry Pi LCD

Parameters of 10.1 Inch Raspberry Pi LCD

Raspberry Pi HDMI LCD Display
Remark: All Models Support Capacitive or Resistive Touch Panel.
Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
10.1	1024*600	MPI1001	IPS	HDMI	236.00145.5720	222.72*125.28	speaker	CTP	MicroUSB	-20~60°C

SKU	MPI7006
Screen Type	IPS screen
Screen Size	7.0 inch
Resolution	1024 x 600
backlight adjustment	Independent button to adjust
Touch Screen Type	Capacitive Touch Screen
Touch IC	GT911
Power	MicroUSB（5V/2A）
Power Dissipation	100% brightness, 2.9W; Speaker version, 100% brightness, 100% volume, 4W
Video Input Interface	HDMI
Audio Output Interface	3.5mm Audio Interface
Module Size (L x W x H)	164.90 × 102.00 × (14.25±0.2)mm
Product weight (including package)	510g

Features of 10.1 Inch Raspberry Pi LCD

IPS full Angle display

1. The viewing Angle is large

2. true color

3. Dynamic picture quality is excellent

4. Energy saving and environmental protection

1024X600 hd vision

1. Resolution for hd 1024X600 dot matrix

2. It is more delicate than 800X480 ordinary screen

Tempered glass touch panel

1. Hardness up to 6H, more durable and more scratch resistant

External audio output interface

1. Built - in power amplifier circuit

2. 3.5mm external audio interface

Used as a mini PC monitor

1. Support raspberry pie, Banana Pi, BB Black and other mainstream development board

2. Support Raspbian, Kali Linux, ubuntu and other mainstream systems, single touch plug and play without driver.

Used as a computer display

1. Support win10/win8/win7 system, support five-point touch plug and play driver

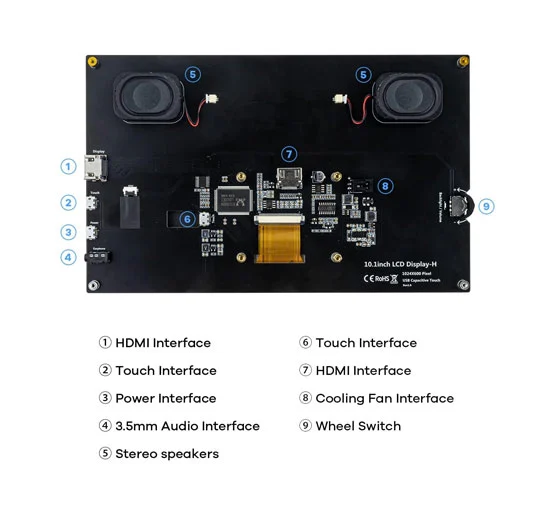

Hardware Description of 10.1 Inch Raspberry Pi LCD

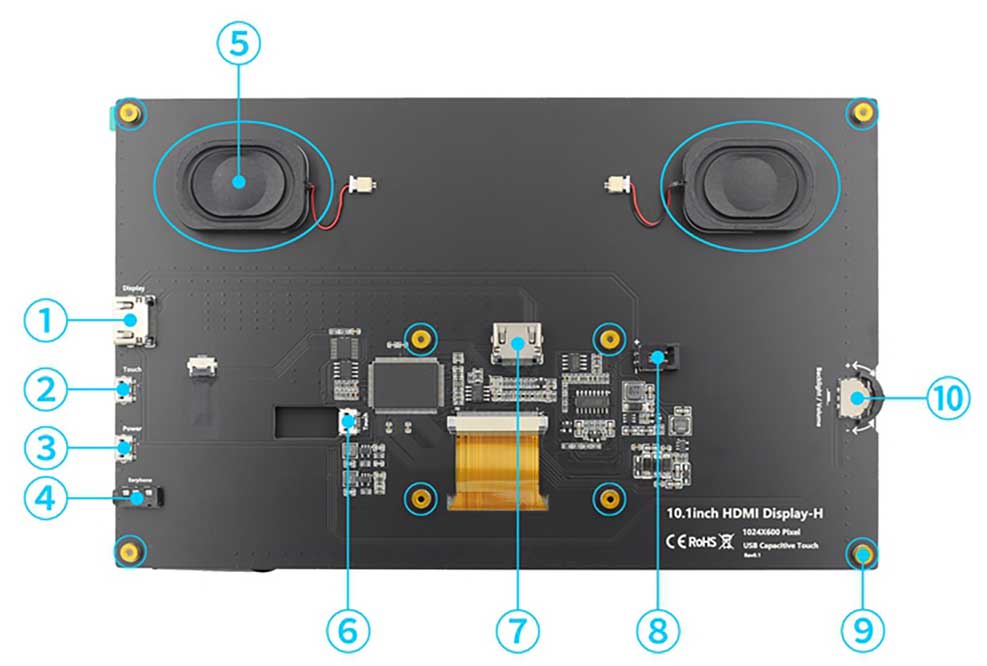

stm32 industrial board

Hardware capabilities

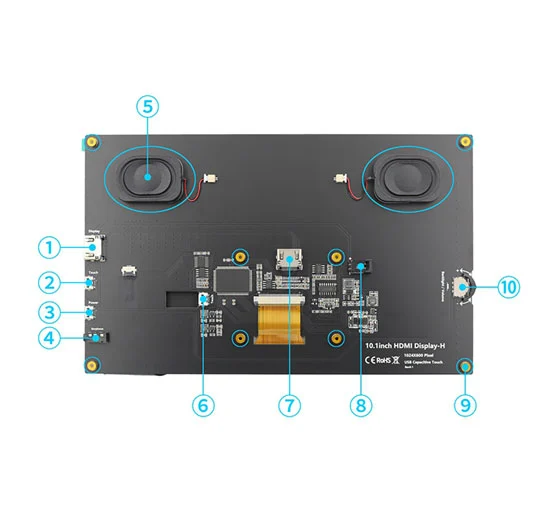

KEY and Interface	DESCRIPTION
① HDMI Interface	Input HDMI signal, using HDMI cable connection, commonly used to connect to the computer, The maximum supported resolution is 1920x1080
② Touch Interface	Transfer touch signal, connect with micro USB cable, provide touch and power supply function, commonly used to connect computer
③ Power Interface	Connect to the power supply and use micro USB cable to connect. Only power supply function is provided
④ 3.5mm Audio Interface	Output audio signal, connect audio output device, such as headphones
⑤ Stereo speakers	Output audio signal for external playback of audio signal
⑥ Touch Interface	Transmit touch signal, connect with micro USB cable, provide touch and power supply function, commonly used to connect Raspberry Pi
⑦ HDMI Interface	Input HDMI signal, connect with HDMI adapter, only used to connect to the Raspberry Pi, The maximum supported resolution is 1024x600
⑧ Cooling Fan Interface	Connect cooling fan
⑨ Copper x 8	Used to connect raspberry pie and scaffolds
⑩ Wheel Switch	Used to adjust screen backlight brightness and volume. By default, in the volume adjustment state, up and down to adjust the volume + and -. Press the switch to switch to the backlight brightness adjustment state, up and down to adjust the backlight brightness increase and decrease respectively. The volume and backlight brightness adjustment state is switched by pressing the switch.

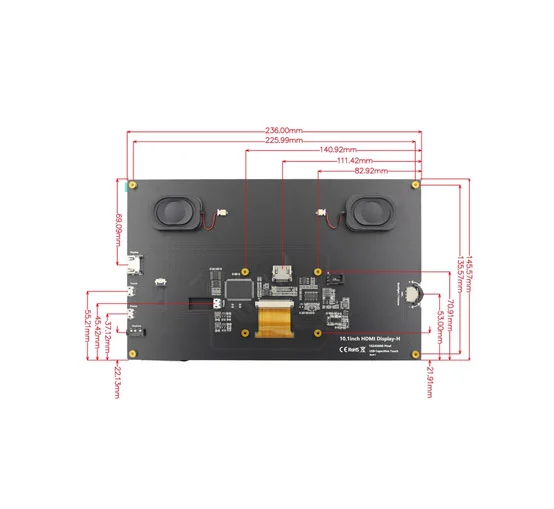

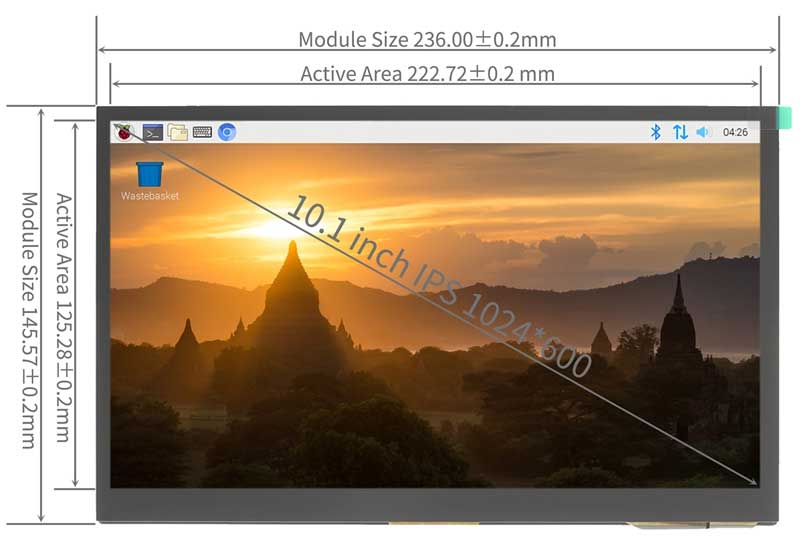

Product Size of 10.1 Inch Raspberry Pi LCD

stm32 iot discovery kit
