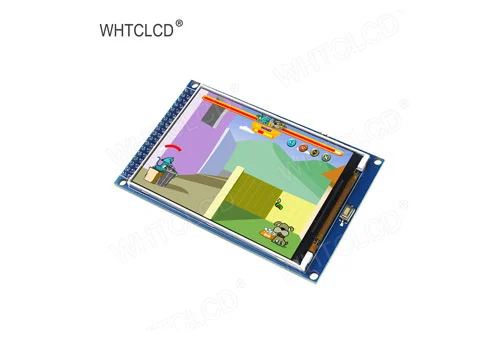

MAR3513 3.5 Inch Arduino LCD Display(MAR3513)

Name: MAR3513 3.5 Inch Arduino LCD Display(MAR3513)
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

3.5-inch color screen, support 65K color display, display rich colors. 320x480 HD resolution for clear display. Fast transmission with 16-bit parallel bus. On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage. Support Arduino Mega2560 direct plug-in use. Provides an Arduino library with a rich sample program. Easy to expand the experiment with SD card slot. Military-grade process standards, long-term stable work. Provide underlying driver technical support.

Products

Parameters of 3.5 Arduino LCD Display(MAR3513)

Name	Parameter
Display Color	RGB 65K color
SKU	MAR3513
Screen Size	3.5(inch)
Type	TFT
Driver IC	ILI9486
Resolution	480*320 (Pixel)
Module Interface	16-bit parallel interface
Active Area	48.96x73.44 (mm)
Module PCB Size	60.30x96.60 (mm)
back light	6 chip HighLight white LEDs
Operating Temperature	-20℃~60℃
Storage Temperature	-30℃~70℃
Operating Voltage	5V/3.3V
Power Consumption	TBD
Product Weight(Package containing)	about 49(g)

Hardware Description of 3.5 Arduino LCD Display(MAR3513)

stm32g0 development board

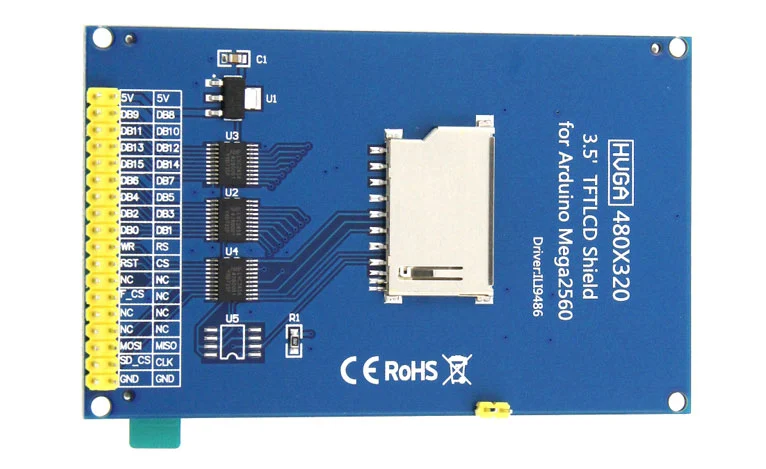

Number	Module Pin	Pin Description	Number	Module Pin	Pin Description
1	5V	Positive power supply	2	5V	Positive power supply
3	DB8	8th bit of data bus	4	DB9	9th bit of data bus
5	DB10	10th bit of data bus	6	DB11	11th bit of data bus
7	DB12	12th bit of data bus	8	DB13	13th bit of data bus
9	DB14	14th bit of data bus	10	DB15	15th bit of data bus
11	DB7	7th bit of data bus	12	DB6	6th bit of data bus
13	DB5	5th bit of data bus	14	DB4	4th bit of data bus
15	DB3	third bit of data bus	16	DB2	2nd bit of data bus
17	DB1	1st bit of data bus	18	DB0	0 bit of data bus
19	RS	LCD register / data selection signal Low level: register, high level: command	20	WR	LCD write control signal
21	CS	LCD screen select control signal, low level enable	22	RST	LCD reset control signal, low reset
23	NC	Undefined, reserved	24	NC	Undefined, reserved
25	NC	Undefined, reserved	26	F_CS	SPI flash chip select control signal
27	NC	Undefined, reserved	28	NC	Undefined, reserved
29	NC	Undefined, reserved	30	NC	Undefined, reserved
31	MISO	SPI bus input signal	32	MOSI	SPI bus output signal
33	CLK	SPI bus clock signal	34	SD_CS	SD card select control signal, low level enable
35	GND	Power ground	36	GND	Power ground

Product Size of 3.5 Arduino LCD Display(MAR3513)

stm32g4 development board
