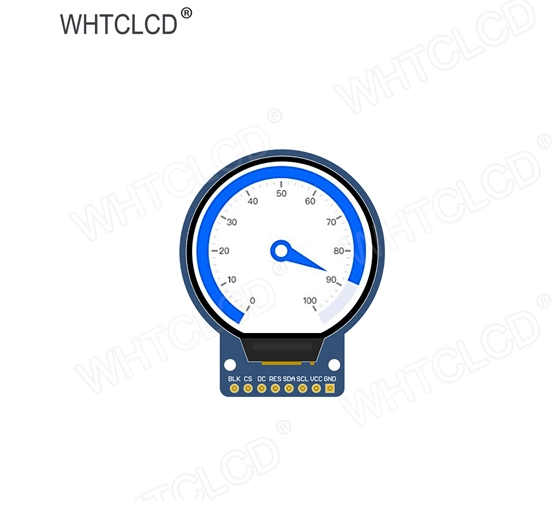

MSP1281 1.28 Inch SPI Disaply LCD Module

Name: MSP1281 1.28 Inch SPI Disaply LCD Module
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

1.28-inch round IPS color screen, support 65K color display, display rich colors. 240X240 resolution, clear display. IPS full view panel, super wide visual range. Using the 4-line-SPI serial bus, it only takes a few IOs to illuminate the display. Provide a rich Arduino, STM32, C51 and MSP430 sample program. Military-grade process standards, long-term stable work. Provide underlying driver technical support.

Products

Parameters of 1.28 Inch SPI Disaply LCD Module

Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
1.28	240*240	MSP1281	IPS	SPI	38.0345.806	32.40*32.40	NC	NC / RTP	5V/3.3V	-20~60°C

Name	Parameter
Display Color	RGB 65K color
SKU	MSP1281
Screen Size	1.28(inch)
Type	IPS
Driver IC	GC9A01
Resolution	240*240 (Pixel)
Module Interface	4-line SPI interface
Active Area (AA area)	Diameter: 32.40 (mm)
Touch Screen Type	have no touch screen
Touch Screen Type	have no touch IC
Module PCB Size	38.03x45.80(mm)
Angle of view	all angle
Operating Temperature	-10℃~60℃
Storage Temperature	-20℃~70℃
VCC power voltage	3.3V
Power Consumption	TBD
Rough Weight(Package containing)	11g

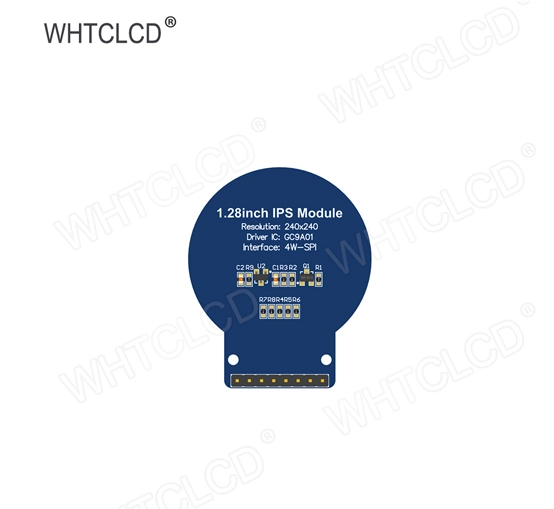

Hardware Description of 1.28 Inch SPI Disaply LCD Module

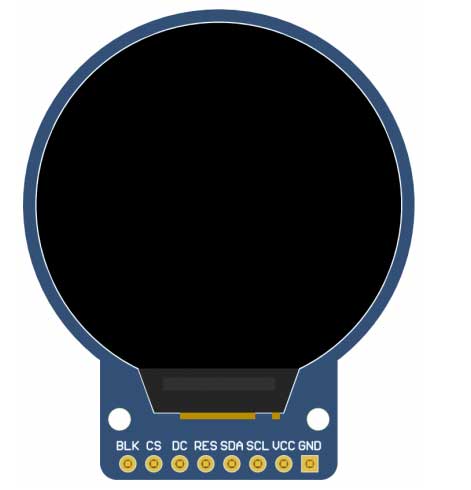

arduino mini lcd display

Number	Pin Label	Description
1	GND	LCD Power ground
2	VCC	LCD power supply is positive (3.3V/5V)
3	SCL	LCD SPI bus clock signal
4	SDA	LCD SPI bus write data signal
5	RES	LCD reset control signal(Low level reset, The module has a reset circuit, and this pin can not be connected)
6	DC	LCD register/data selection control signal (Low level: register, high level: data)
7	CS	LCD chip select control signal (low level enable)
8	BLK	LCD backlight control signal (high level lighting, if you do not need control, please connect 3.3V)

Product Size of 1.28 Inch SPI Disaply LCD Module

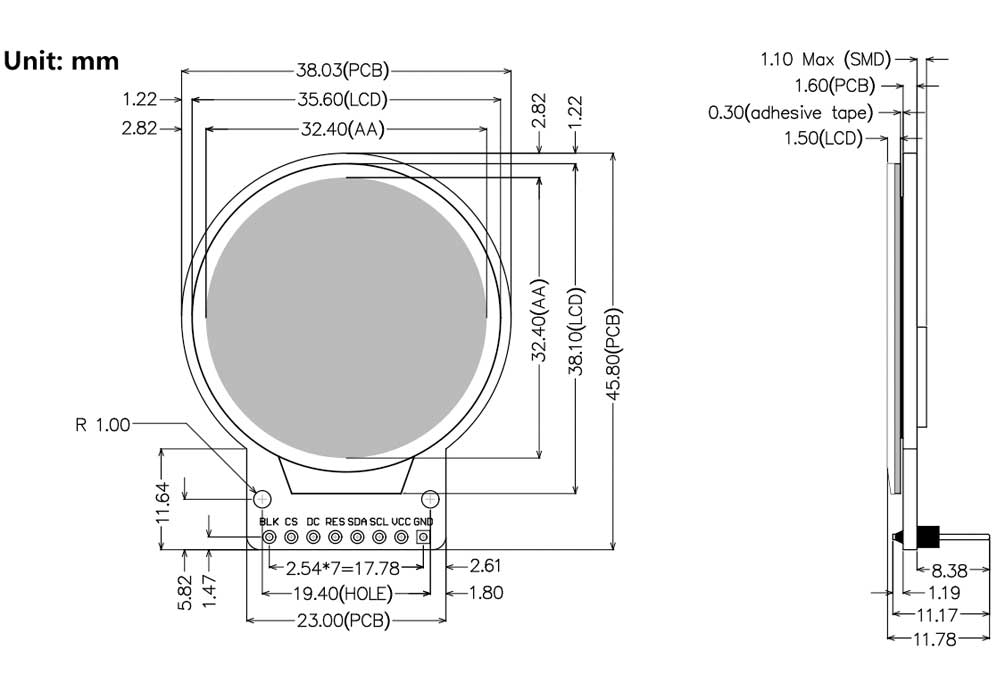

arduino multiple lcd displays
