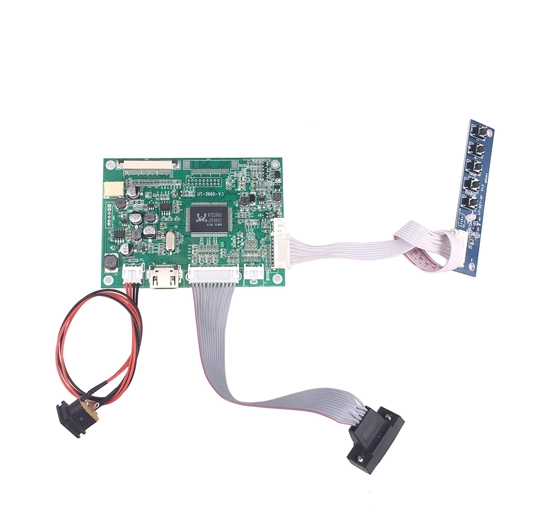

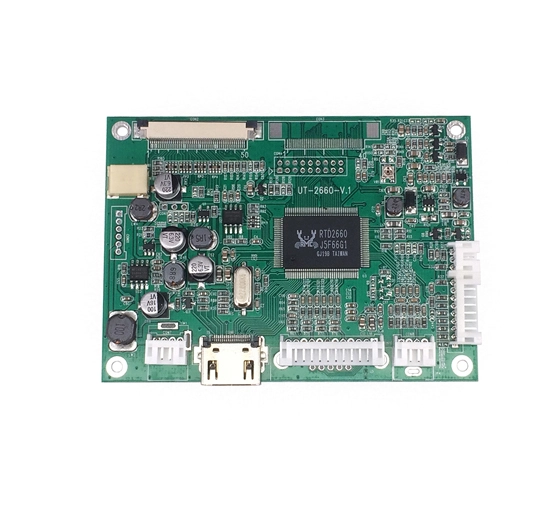

UT-2660 RGB TTL LCD Controller Board

Parameters of UT-2660 RGB TTL LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
13	UT-2660	HDMI / VGA / AV Signal input; Supports multiple resolutions, Supports 5 / 7 / 8 / 9 / 10.1 inch LCD screen	RGB TTL 50pin / LVDS 40pin / LVDS 30pin	NO	DC12V

General Specifications of UT-2660 RGB TTL LCD Controller Board

Model: UT-2660 V.1 (50PIN)

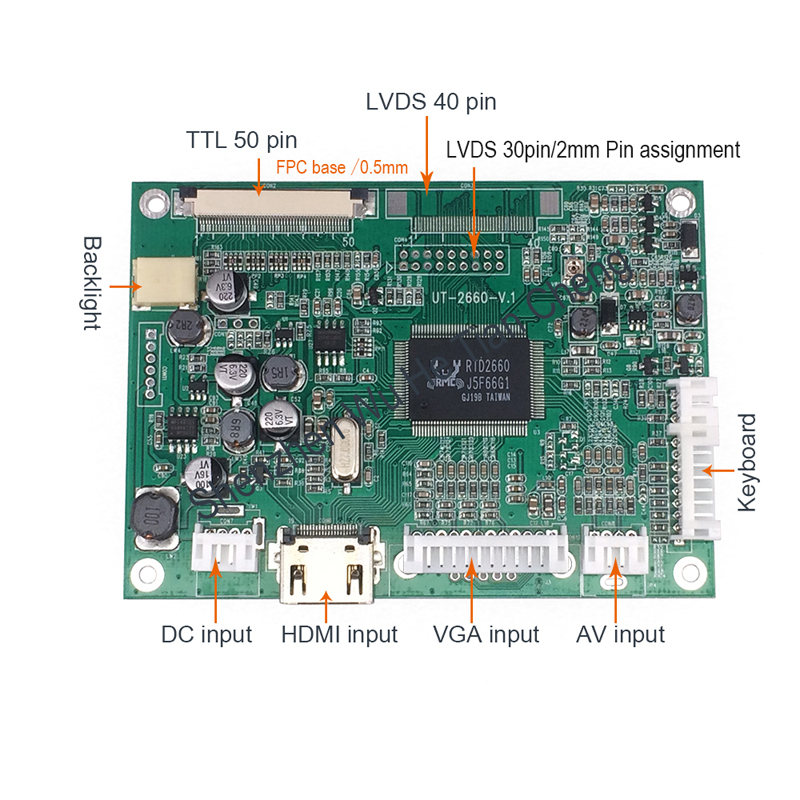

1 HDMI, VGA, CVBS1, CVBS2 (optional) video signal input

2 Signal output supports RGB50p interface LCD screen

3 Power input: DC+12V

4 Multi functional OSD Operations

5 With remote control function (optional)

Model	UT-2660V.1
Signal	HDMI VGA CVBS1 CVBS2（optional）video signal
output interface	RGB_50P
supported resolution	1024*600（60~75Hz）
Power input	DC +12V
CVBS	1.0Vp-p75Ω
Function	Multi functional OSD operation with remote control function (optional)
Operation Temperature	-10℃～+60℃
Working humidity	90%RH
Storage temperature	-20℃～+70℃
Save humidity	90%RH

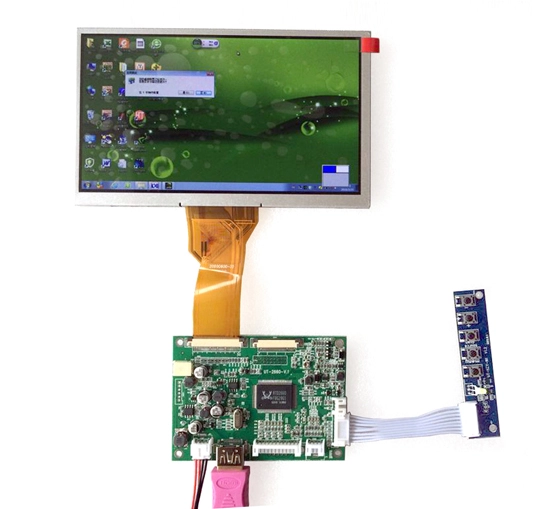

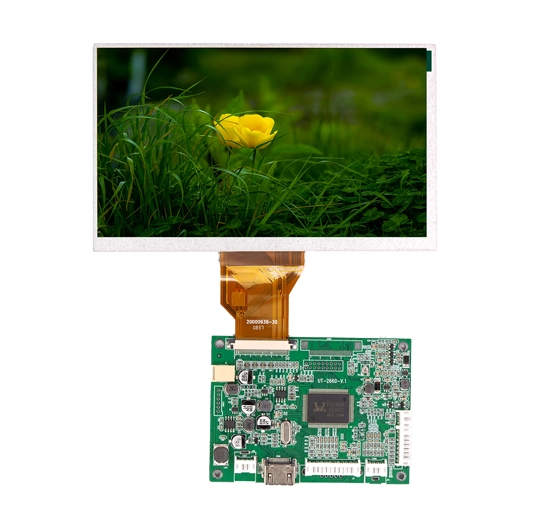

screen size	5 inch, 7 inch, 8 inch, 9 inch, 10.1 inch
A screen that can be driven	5 inch	EJ050NA-01G	800*480
	7 inch	AT070TN92	800*480	8 inch	AT080TN64	800*480
		AT070TN93	800*480		AT080TN52	800*600
		AT070TN94	800*480		EJ080NA-05A	800*600
		AT070TN90	800*480		EJ080NA-05B	800*600
		TM070RBH10	800*480		TM080RDH01	800*600
		W070P50S1RN	800*480		W080P50S2RN-	800*480
		W070P50H3RI	1024*600		W080P50S4RN	800*600
	9 inch	AT090TN12	800*480	10.1 inch	G101STN01.2	1024*600
		AT090TN10	800*480		TM101DDHG06-71	1024*600
		EJ090NA-01B	800*480		W101P50H1RI	1024*600
		W090P50S3RN	800*480
