W055P25H4MI- S22B0 5.5 Inch IPS TFT LCD

Name: W055P25H4MI- S22B0 5.5 Inch IPS TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

5.5 Inch IPS TFT LCD is a transmissive type color active matrix liquid crystal display this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 68.04*120.96 and the native resolution is 720*1280 and can display up to 262K/16.7M colors, Applications: wire tester, sphygmomanometer, ECG machine, Robots,Handheld devices, Automotive instrument, recorder and industrial display.

Products

Parameters of 5.5 Inch IPS TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
5.5	1080*1920	W055P25H4MI- S22B0	74.28133.212.6	69.64*126.56	IPS	MIPI	260	-20~70°C

General Specifications of 5.5 Inch IPS TFT LCD

W055P25H4MI-S22B0

Feature	Specifications	Unit
Size	5.5	inch
Technology Type	a-si TFT
Resolution	1080(RGB)x1920
Pixel pitch	0.063*0.063	mm
Pixel arrangement	RGB-stripe
Color Depth	262K/16.7M
Display Mode	TFT,Transmissive,Normally black
Driver IC	HX8399C
Surface Treatment	`
Viewing Direction	IPS
Gray Viewing Direction	`
LCM (W x H x D) (mm)	74.28(W)×133.21(H)×2.6(D) mm	mm
Active Area(mm)	68.04(W)×120.96(H) mm	mm
Touch Panel	Support CTP/RTP
Brightness	300	nits
Weight (g)	`	g
Interface	MiPi FPC 25pin
Operation Temperature	-20~70	℃
Storage Temperature	-30~85	℃
Module lifetime(Hours)	50,000-100,000	℃

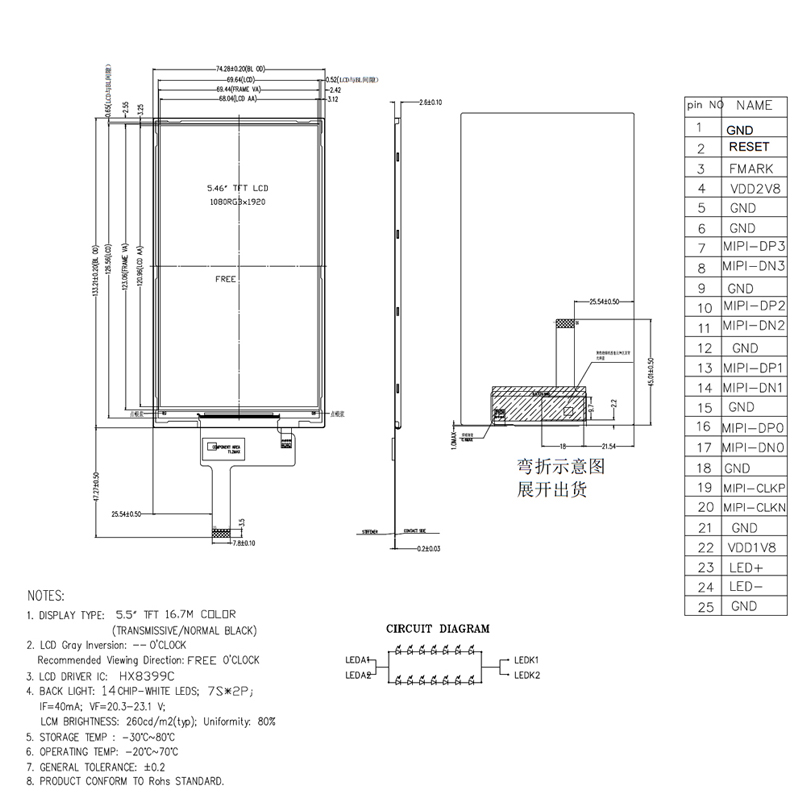

Structural Size of 5.5 Inch IPS TFT LCD

W055P25H4MI-S22B0

5.5 Inch IPS TFT LCD
