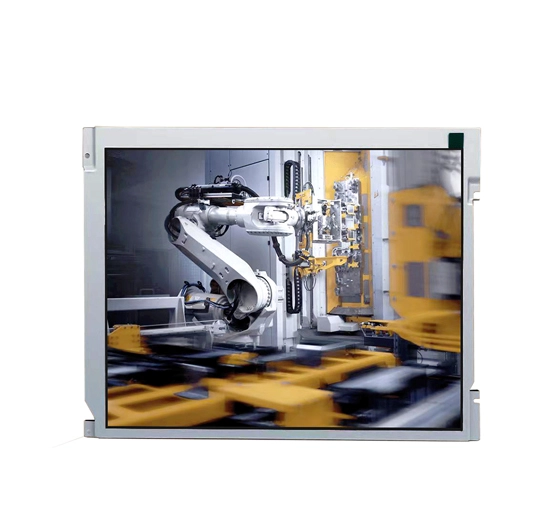

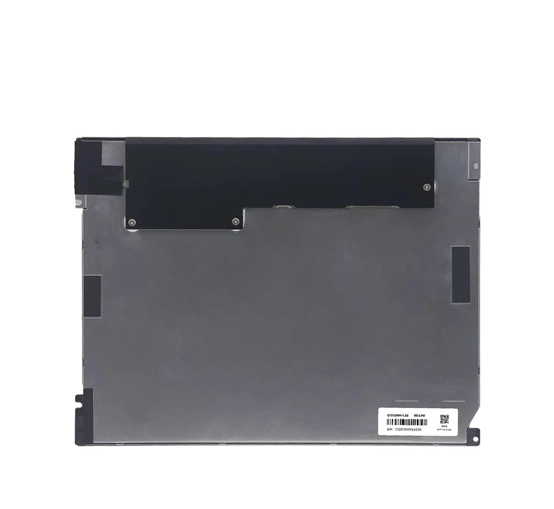

W121C20E1LI-H19A0 12.1 Inch IPS TFT LCD

Name: W121C20E1LI-H19A0 12.1 Inch IPS TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

W121C20E1LN is a transmissive color active matrix liquid crystal display, which consists of a TFT LCD panel, driver IC, FPC, and LED backlight unit. The activity display area is 246 * 184.5, with a native resolution of 800 * 600, capable of displaying up to 262K/16.7M colors. Applications include testing equipment, medical devices, robots, automation equipment, and industrial displays.

Products

Parameters of 12.1 Inch IPS TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
12.1	800*600	W121C20E1LI-H19A0	2762099	246*184.5	IPS	LVDS	300	-30~80°C

General Specifications of 12.1 Inch IPS TFT LCD

W121C20E1LI-H19A0

Feature	Specifications	Unit
Size	12.1	inch
Technology Type	a-si TFT
Resolution	800(RGB)x600
Pixel pitch	~	mm
Pixel arrangement	RGB-stripe
Color Depth	262K/16.7M
Display Mode	TFT,Transmissive,Normally black
Driver IC	~
Surface Treatment	`
Viewing Direction	TN
Gray Viewing Direction	`
LCM (W x H x D) (mm)	276(W)×209(H)×9(D) mm	mm
Active Area(mm)	246(W)×184.5(H) mm	mm
Touch Panel	Support CTP/RTP
Brightness	300-800	nits
Weight (g)	`	g
Interface	LVDS 20pin Connector
Operation Temperature	-20~70	℃
Storage Temperature	-30~85	℃
Module lifetime(Hours)	50,000-100,000	℃

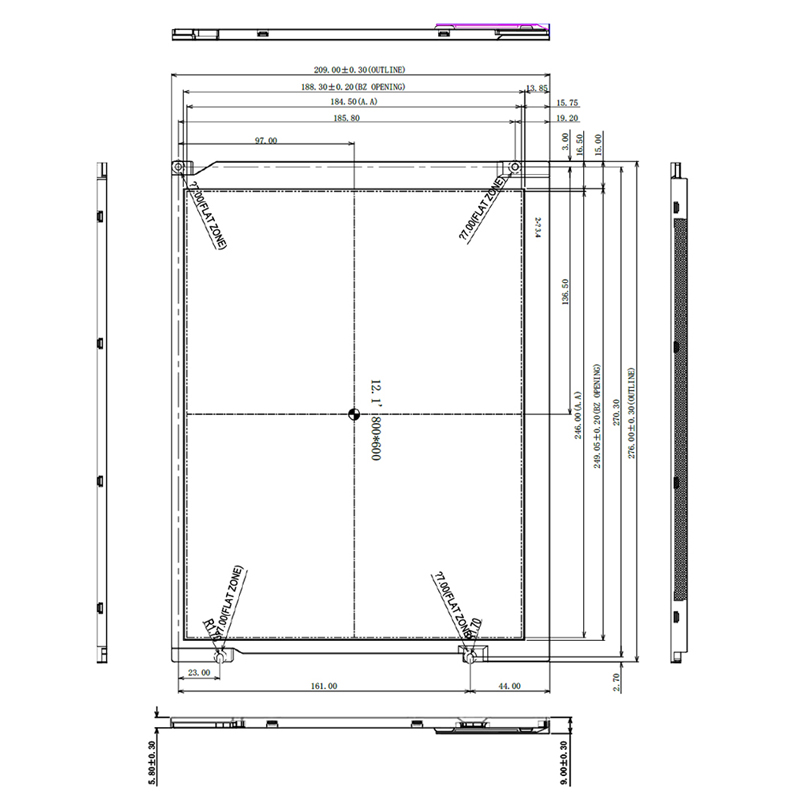

Structural Size of 12.1 Inch IPS TFT LCD

W121C20E1LI-H19A0

12.1 Inch IPS TFT LCD
