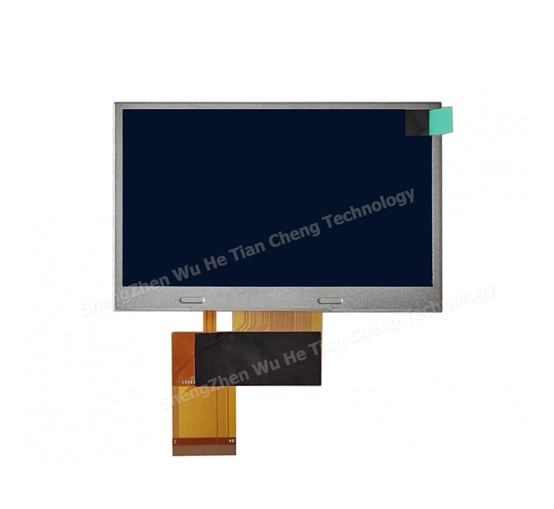

TM043NDHG11 4.3 Tianma LCD Panel

Name: TM043NDHG11 4.3 Tianma LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

TIANMA 4.3 inch TFT LCD Panel TM043NDHG11 with 480(RGB)×272 , WQVGA resolution , brightness 400 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and its storage temperature is -30 ~ +80 (°C). Based on its white LED backlight. This model is recommended for industrial use and outdoor highlight.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of TM043NDHG11 4.3 Tianma LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
4.3	480*272	TM043NDHG11	105.567.23.2	95.04*53.856	TN	RGB	880	-20~70°C

General Specifications of TM043NDHG11 4.3 Tianma LCD Panel

Manufacturer	TIANMA
Model Name	TM043NDHG11
Screen Size	4.3 inch
Pixel Number	480(RGB)×272 ,WQVGA
Active Area(mm)	95.040 x 53.856 (H×V)
Outline(mm）	105.50 x 67.20 x 3.2 (H×V×D)
Pixel Pitch(mm)	0.198 x 0.198 (H×V)
Treatment	AG
Luminance	880 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/60 (Typ.)
Response	20 (Typ.)(Tr/Td) ms
Work Mode	TN, Normally white, Transmissive
Color Depth	16.7M , 50% NTSC
Backlight	WLED , 30K hours,without driver
Net Weight	44.4g
Touchscreen	without
Signal Type/interface Type	Parallel RGB (1 ch, 8-bit) , FPC , 40 pins
Voltage Supply	3.3V
Max. Ratings	Storage Temp.: -30 ~ +80 (°C)
Max. Ratings	Operating Temp.: -20 ~ +70 (°C)
Package	TIANMA original package;
	144 pcs/ctn;
	weight : 8.0kgs;
	size : 544(L)mm x 365(W)mm x 250(H)mm
