W156C30E1EI-J03B0 15.6 Inch TN TFT LCD

15.6 Inch TN TFT LCD is a transmissive color active matrix liquid crystal display consisting of a TFT LCD panel, driver IC, FPC, and LED backlight unit. The activity display area is 344.232*193.536 with a native resolution of 1366 * 768, capable of displaying colors up to 262K/16.7M. Applications include computer displays, testing equipment, medical devices, robots, automation equipment, automotive displays, and industrial displays.

Products

Parameters of 15.6 Inch TN TFT LCD

Size(inch)ResolutionModelLCM Dimension(mm)Active Area(mm)ViewInterfaceBrightness(nits)OP(℃)
15.61366*768W156C30E1EI-J03B0359.5*206.5*3.2344.23*193.54TNe-DP300-20~70°C


General Specifications of 15.6 Inch TN TFT LCD

FeatureSpecificationsUnit
Size15.6inch
Technology Typea-si TFT
Resolution1366(RGB)x768
Pixel pitch~mm
Pixel arrangementRGB-stripe
Color Depth262K/16.7M
Display ModeTFT,Transmissive,Normally black
Driver IC~
Surface Treatment`
Viewing DirectionIPS
Gray Viewing Direction`
LCM (W x H x D) (mm)359.5(W)×223.8(H)×3.2(D) mmmm
Active Area(mm)344.232(W)×193.56(H) mmmm
Touch PanelSupport CTP/RTP
Brightness220-400nits
Weight (g)`g
InterfaceEDP 30pin Connector
Operation Temperature-20~70℃
Storage Temperature-30~85℃
Module lifetime(Hours)50,000-100,000℃

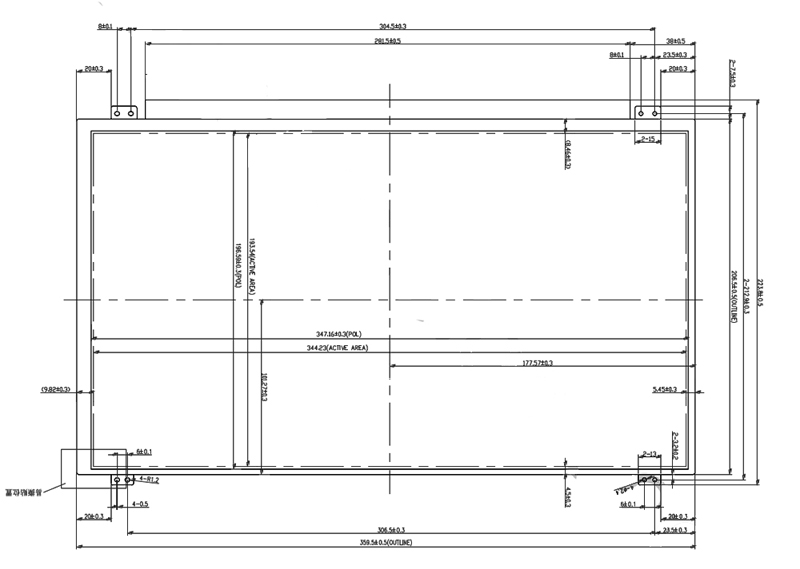

Structural Size of 15.6 Inch TN TFT LCD

15.6 Inch TN TFT LCD
