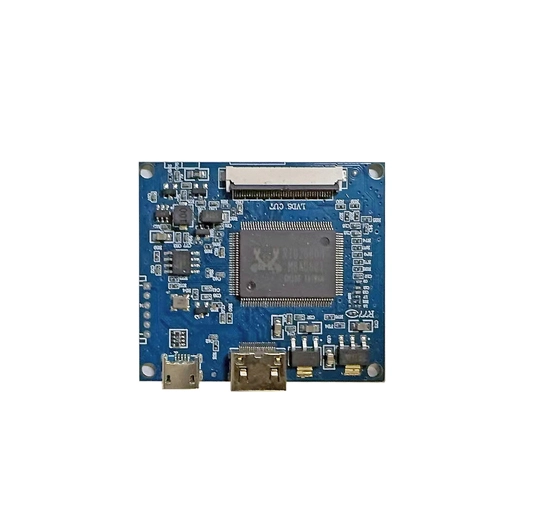

PCB800853 LVDS LCD Controller Board

Parameters of PCB800853 LVDS LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
1	PCB800853	HDMI Signal input; Supports multiple resolutions, With sound output, Supports 7 / 8 / 9 / 10.1 inch LCD screen	LVDS 40pin	NO	USB +5V

General Specifications of PCB800853 LVDS LCD Controller Board

The following four PCBA products have identical exterior dimensions and functions, except for the different models of LCD screens driven.

Driver board model	Function Description	Pin sorting
PCB800850	Supports 3.5-inch LCD screen RGB TTL 54pin definition	Definition reference LQ035NC111
PCB800851	Supports 4.3 / 5 /7 inch LCD screen RGB TTL 40 pin definition	Definition reference AT043TN24V. 1
PCB800852	Supports 7 / 8 / 9 /10.1 inch LCD screen RGB TTL 50 pin definition	Definition reference AT079TN92
PCB800853	Supports 7 / 8 / 9 /10.1 inch LCD screen LVDS 40 pin definition	Definition reference EJ070NA-01J

The appearance size of this product is 5.2CMx4.6CMx6mm

This driver board can

1. MIRCO USB power interface, 5V standard power supply, needs to be greater than 1.5A

2. No buttons or remote control, automatically switches to HDMI channel after inserting HDMI

3.1 HDMI signal input, and this IC supports HDMI 1.2

4. HDMI is a high-quality MINI gold-plated base

5. The screen interface adopts high-quality gold-plated connectors -40pin-EJ070NA-01 definition

6. USB - DM+DP signal can be externally extended

7. The driver board adopts a special circuit design, which can drive LED backlight up to 10V and support a maximum current output of 180MA,

8. Supports LVDS signal output,

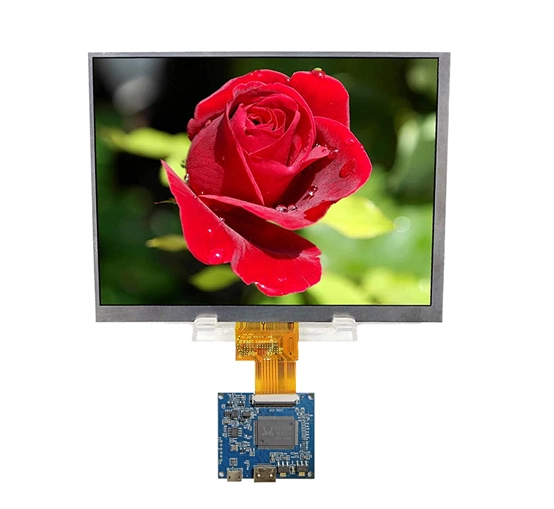

Supports universal 40pin 7 / 8 / 9 / 10.1 inch LCD screens such as EJ070NA-01,

This driver board adopts full surface mount technology, and the relevant parameters are designed according to industrial standards. The shipping standards are based on civilian standards, but no relevant tests will be conducted. If necessary, please test it yourself.
