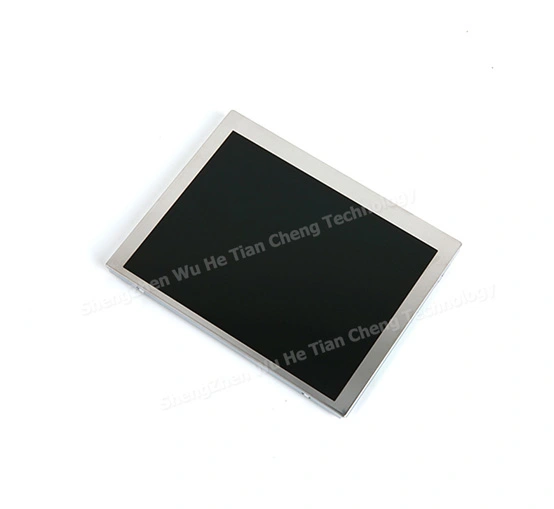

G057VCE-TH1 5.7 Inch INNOLUX LCD Panel

Name: G057VCE-TH1 5.7 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 5.7 inch tft lcd ips panel G057VGE-TH1 with 640(RGB)x480 VGA resolution, brightness 450 cd/m². This lcd display's working temperature is -30 ~ +85 (°C) and it's storage temperature is -40 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for industrial use.

Original Innolux 5.7 Inch 640x480 VGA TFT LCD Panel RGB LCD Screen For Industry G057VGE-TH1 with 450nits, Driver board and Touchscreen.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G057VCE-TH1 5.7 Inch INNOLUX LCD Panel

Size (inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
5.7	640*480	G057VCE-TH1	144104.612.3	115.2*86.4	TN	RGB	450	-30~85°C

General Specifications of G057VCE-TH1 5.7 Inch INNOLUX LCD Panel

Manufacturer	INNOLUX
Model Name	G057VCE-TH1
Screen Size	5.7 inch
Pixel Number	640(RGB)×480 , VGA
Active Area(mm)	115.2 x 86.4 (H×V)
Outline(mm）	144.0 x 104.6 x 12.3 (H×V×D)
Pixel Pitch(mm)	0.18 x 0.18 (H×V)
Treatment	Hoad Coating (3H) , Anti-Glare
Luminance	450 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	88/88/88/88(CR≥10) Left / Right/UP /Down
Response time	13/12 (Typ.)(Tr/Td) ms
Display Mode	VA , Normally black , Transmissive
Color Depth	262K , 74% DCI-P3
Backlight	WLED , 50K hours , with LED Driver
Net Weight	TBD
Touchscreen	without
Signal Type/interface Type	Parallel RGB (1 ch, 6-bit) , 40 pins
Voltage Supply	+3.3 V
Max. Ratings	Storage Temp.: -40 ~ +85 (°C)
Max. Ratings	Operating Temp.: -30 ~ +85 (°C)
Package	Innolux Original package
