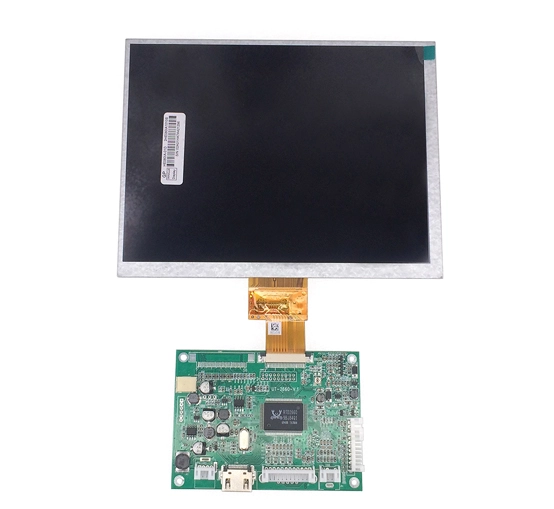

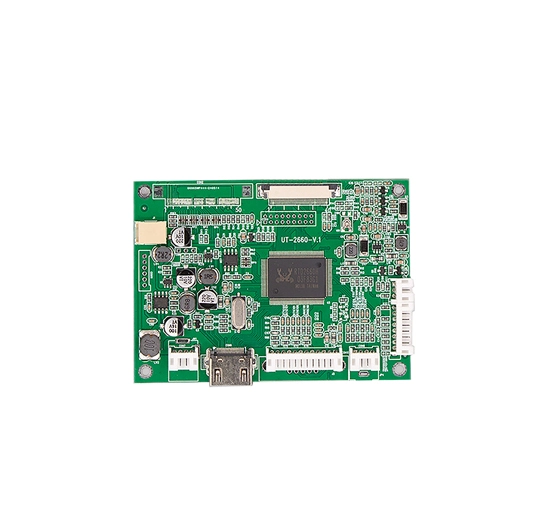

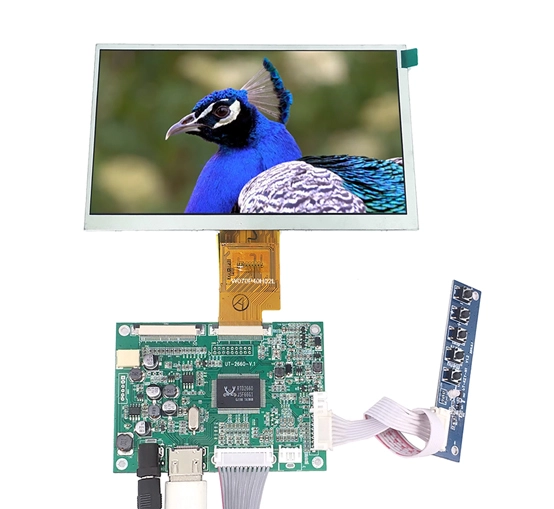

UT-2660 V.1 LVDS LCD Controller Board

Parameters of UT-2660 V.1 LVDS LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
10	UT-2660 V.1	AV / VGA / HDMI Signal input; Supports multiple resolutions, Supports 7~ 23.8 inch LCD screen	LVDS 40pin / 30pin RGB TTL 50pin	NO	DC12V

General Specifications of UT-2660 V.1 LVDS LCD Controller Board

Model: UT-2660 V.1 (50PIN)

1 HDMI, VGA, CVBS1, CVBS2 (optional) video signal input

2 signal output supports LVDS 40pin interface LCD screen

3 Power input: DC+12V

4 Multi functional OSD Operations

5 with remote control function (optional)

Model	UT-2660V.1
Signal	HDMI VGA CVBS1 CVBS2（optional）video signal
Output interface	LVDS 40pin FPC / 20pin 6bit\8bit LVDS Connector
Supported resolution	1366*768（60~75Hz）
Power input	DC +12V
CVBS	1.0Vp-p75Ω
Function	Multi functional OSD operation with remote control function (optional)
Operation Temperature	-10℃～+60℃
Working humidity	90%RH
Storage temperature	-20℃～+70℃
Save humidity	90%RH
Screen size	7 inch, 8 inch, 10.1 inch, 10.4 inch, 12.1 inch, 15 inch, 15.6 inch
A screen that can be driven	7 inch	EJ070NA-01J	1024*600
		HJ070IA-02C	1024*600
		AT070TNA2	1024*600
		W070P40H1LI	1024*600
	8 inch	EJ080NA-04C	1024*768
		HE080IA-01D	1024*768
