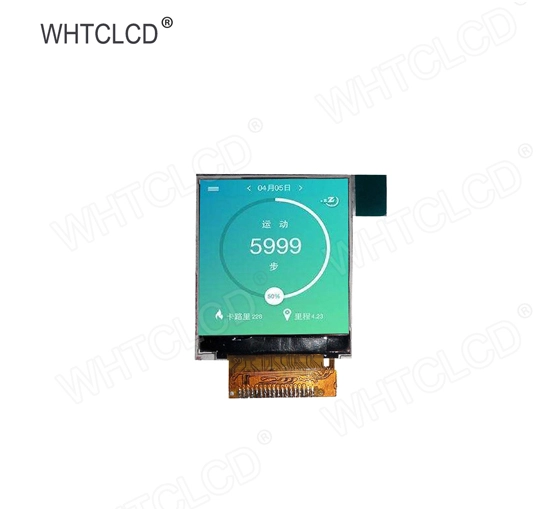

W0144P14S1SN-A02B0 1.44 Inch TN TFT LCD

Parameters of 1.44 Inch TN TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
1.44	128*128	W0144P14S1SN-A02B0	29.536.52.25	25.5*26.5	TN	SPI	300	-20~70°C

Interface Diagram of 1.44 Inch TN TFT LCD

NO.	SYABO	Description	I/O
1	GND	GND	Power supply
2	LEDK	LED backlight input(Cathode)	Power supply
3	LEDA	LED anode	Power supply
4	GND	GND	Power supply
5	RESET	Reset	1
6	RS	Data/Commander selection	1
7	SDA	SPI Data input output	I/O
8	SCL	SPI Clock	I
9	VCC	2.8V Digital power	Power supply
10	IOVCC	1.8V/2.8V Logic power	Power supply
11	CS	Chip select	I
12	GND	GND	Power supply
13-16	NC	NC
17-18	GND	GND	Power supply

Structural Size of 1.44 Inch TN TFT LCD

1.44 Inch TN TFT LCD
