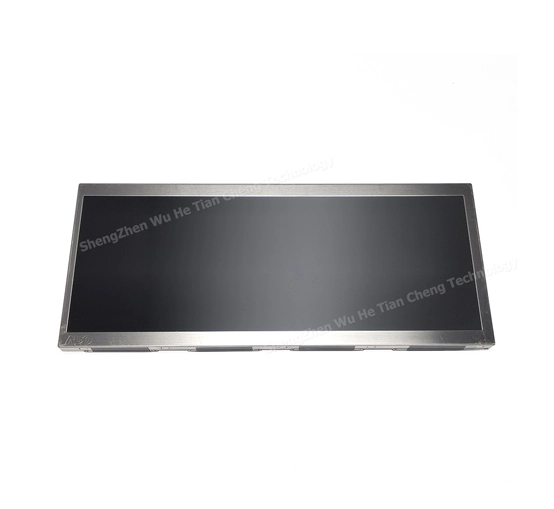

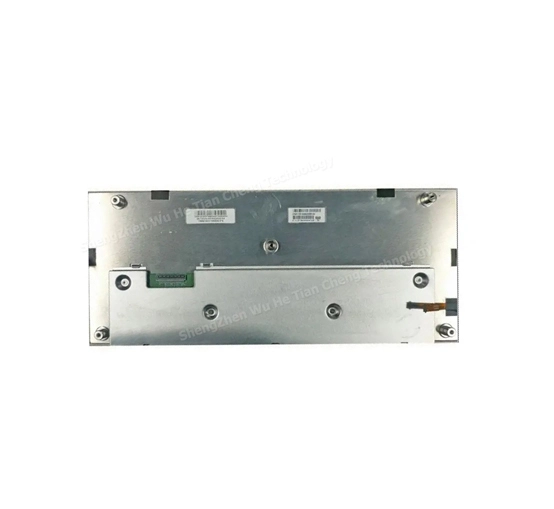

C123HAN02.5 12.3 AUO LCD Panel

Name: C123HAN02.5 12.3 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

AUO 12.3 inch tft lcd panel C123HAN02.5 with 1920(RGB)x720 resolution, brightness 500 cd/m², LVDS 40pin. This lcd display's working temperature is -30 ~ +85 (°C) and it's storage temperature is -30 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for Industrial use(wide application).

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of C123HAN02.5 12.3 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
12.3	1920*720	C123HAN02.5	310.75129.8616.23	292.032*109.512	IPS	LVDS	600	-30~85°C

General Specifications of C123HAN02.5 12.3 AUO LCD Panel

C123HAN02.5

Manufacturer	AUO
Model Name	C123HAN02.5
Screen Size	12.3 inch
Pixel Number	1920(RGB)×720
Active Area(mm)	292.032 × 109.512 (H×V)
Outline(mm）	310.75 × 129.86 × 16.23 (H×V×D)
Treatment	Hard coating (3H)
Luminance	600 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (CR≥10)
Viewing Angle	Left/Right/UP/Down
Response	15/45 (Typ.)(Tr+Td) ms
Work Mode	TN , Normally white , Transmissive
Color Depth	262K/16.2M , 70% NTSC
Backlight	WLED , 50K hours , with LED Driver
Net Weight	570g (Typ.)
Touchscreen	without
Signal Type/interface Type	LVDS (2 ch, 6/8bit) , 40 pins
Voltage Supply	+3.3 V (Typ./Max.)
Max. Ratings	Storage Temp.: -30 ~ +85 (°C)
Max. Ratings	Operating Temp.: -30 ~ +85 (°C)
Package	AUO original package;
	21 pcs/ carton;
	weight : 15Kgs;
	size : 570(L) x 320(W) x 420(H)mm
