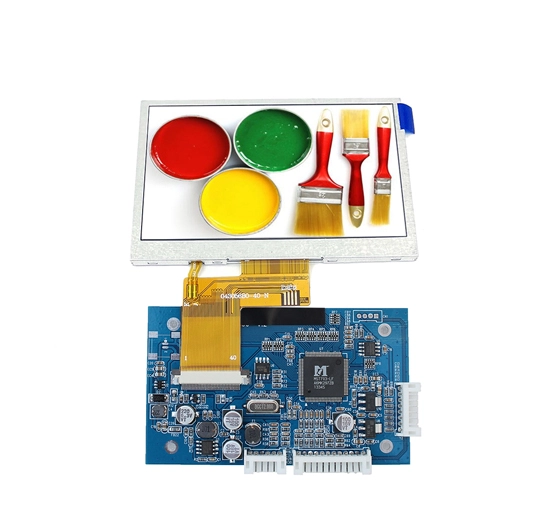

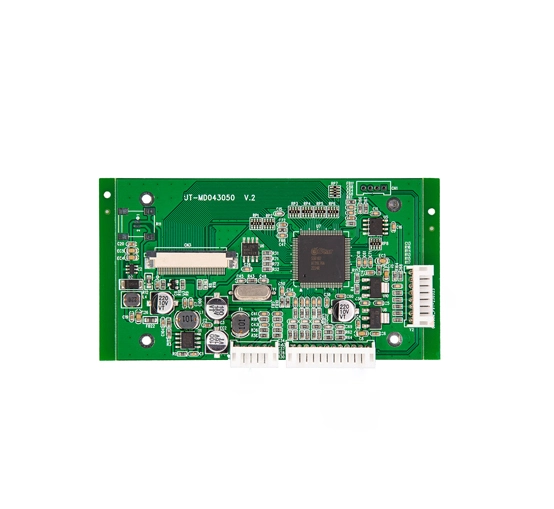

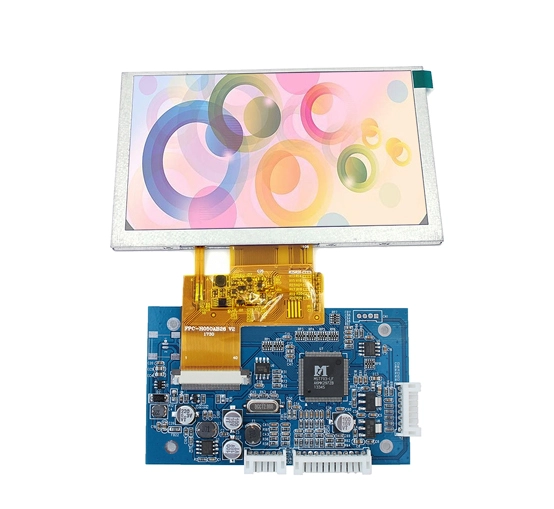

UT-MD043050 V.2 RGB TTL LCD Controller Board

Parameters of UT-MD043050 V.2 RGB TTL LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
15	UT-MD043050 V.2	AV / VGA Signal input; Supports multiple resolutions, Supports 4.3 / 5 / 7 inch LCD screen	RGB TTL 40pin	NO	DC12V

General Specifications of UT-MD043050 V.2 RGB TTL LCD Controller Board

Model: UT - MD043050 V.2

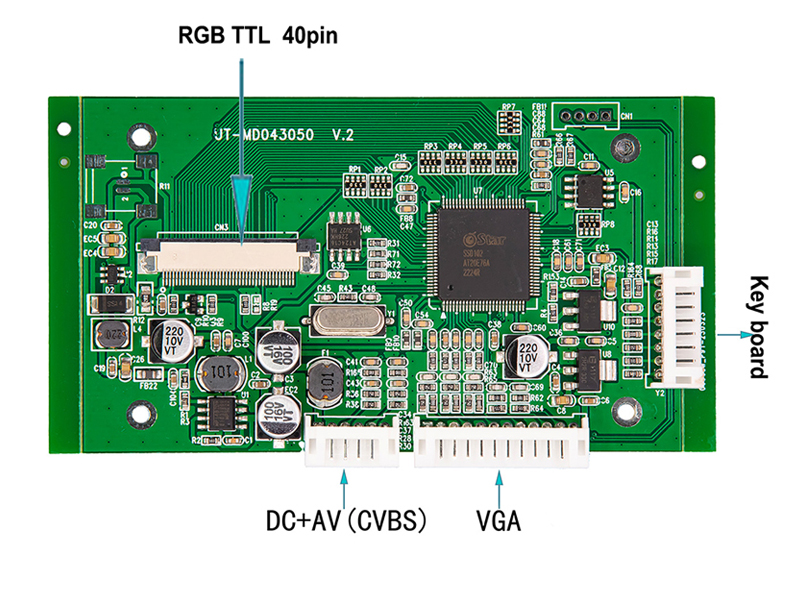

1 VGA, CVBS1, CVBS2 (optional) video signal input

2 Signal output supports RGB 40pin interface LCD screen

3 Power input: DC+12V

4 Multi functional OSD Operations

5 With remote control function(optional)

Model	UT- MD043050 V.2
Signal source	VGA AV(cvbs）
output interface	RGB_40pin
MAX Resolution support	800*480（60~75Hz）
Power input	DC +12V
CVBS	1.0Vp-p75Ω
Function	Multi functional OSD operation with remote control function (optional)
Operation Temperature	-10℃～+60℃
Working humidity	90%RH
Storage temperature	-20℃～+70℃
Save humidity	90%RH
screen size	4.3 inch, 5 inch
A sxreen that Can be driven	4.3 inch			5 inch
	Innolux	AT043TN25V.2	480*272	Innolux	AT050TN33	480*272
	Tianma	TM043NDH02-40	480*272	Innolux	AT050TN43V.1	800*480
		KD43G18	480*272		LW500AC9001	800*480
	WHTCLCD	W043P40S1RN	480*272		LW500AC9004	800*480
		W043P40S1RI	480*272	Hannstar	HSD050EDW1-A20	800*480
		W043P40H1RI	800*480	WHTCLCD	W050P40H1RI	800*480
				WHTCLCD	W050P40S1RN	480*272
