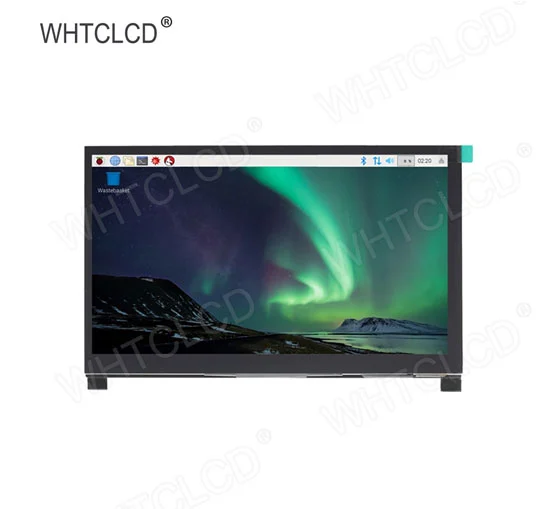

MPI7006 7 Raspberry Pi HDMI LCD Display(speaker-CTP)

Products

Parameters of 7 Raspberry Pi HDMI LCD Display(speaker-CTP)

Raspberry Pi HDMI LCD Display
Remark: All Models Support Capacitive or Resistive Touch Panel.
Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
7	1024*600	MPI7006	IPS	HDMI	16410214	154.2144*85.92	speaker	CTP	MicroUSB	-20~60°C

SKU	MPI7006
Screen Size	7 inch
LCD Type	IPS
Module Interface	HDMI
Resolution	1024*600 (Pixel)
Active Area	153.84*85.63 (mm)
Touch Screen Controller	5 point capacitive touch
LCD Driver IC	-
Backlight	LED
power consumption	0.74A*5V
Working temperature（℃）	-20~60
Module PCB Size	64.90 × 102.00 × (14.25±0.2)mm
Package Size	21115053 (mm)
Rough Weight(Package containing) (g)	510 (g)

Features of 7 Raspberry Pi HDMI LCD Display(speaker-CTP)

IPS full Angle display

1. The viewing Angle is large

2. true color

3. Dynamic picture quality is excellent

4. Energy saving and environmental protection

1024X600 hd vision

1. Resolution for hd 1024X600 dot matrix

2. It is more delicate than 800X480 ordinary screen

Tempered glass touch panel

1. Hardness up to 6H, more durable and more scratch resistant

External audio output interface

1. Built - in power amplifier circuit

2. 3.5mm external audio interface

Used as a mini PC monitor

1. Support raspberry pie, Banana Pi, BB Black and other mainstream development board

2. Support Raspbian, Kali Linux, ubuntu and other mainstream systems, single touch plug and play without driver.

Used as a computer display

1. Support win10/win8/win7 system, support five-point touch plug and play driver

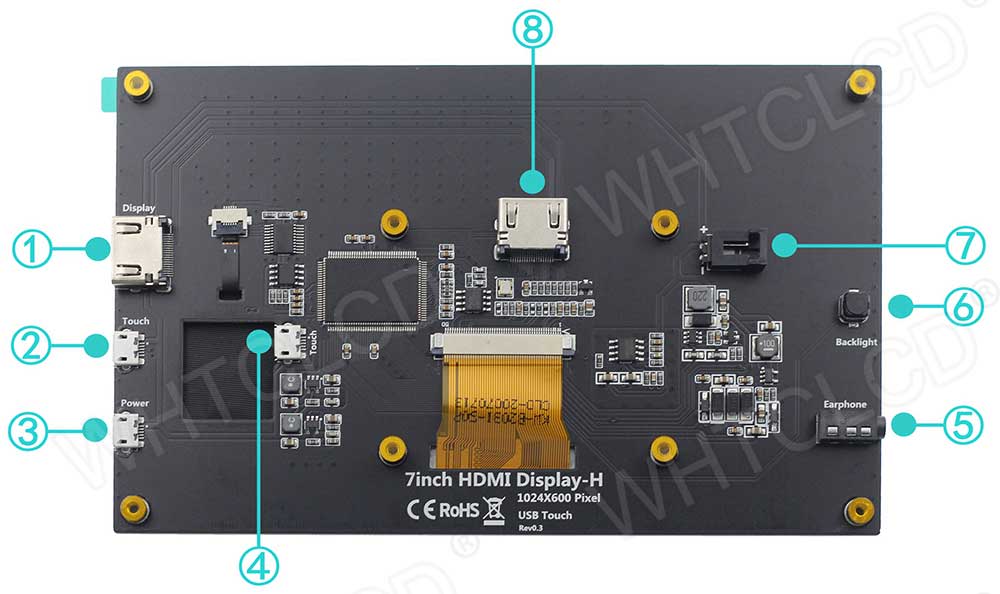

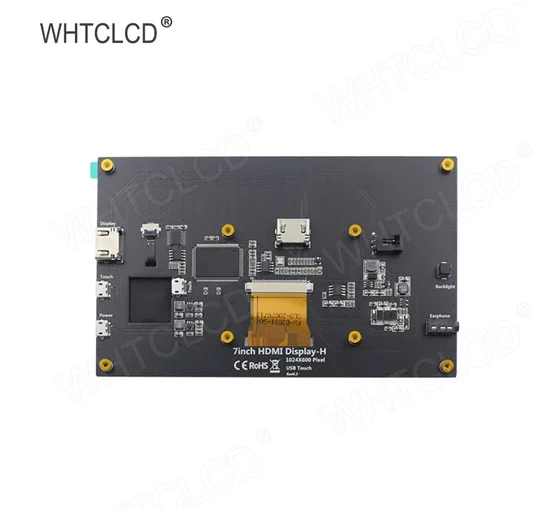

Hardware Description of 7 Raspberry Pi HDMI LCD Display(speaker-CTP)

stm32f1 board

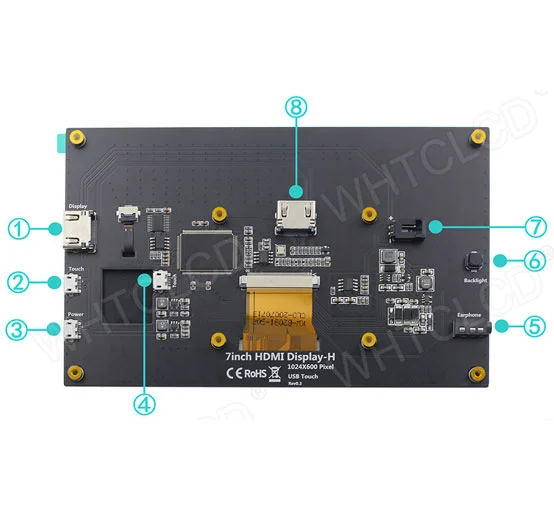

Hardware capabilities

KEY and Interface	DESCRIPTION
① HDMI Interface	Input HDMI signal, using HDMI cable connection, commonly used to connect to the computer, The maximum supported resolution is 1920x1080
② Touch Interface	Transfer touch signal, connect with micro USB cable, provide touch and power supply function, commonly used to connect computer
③ Power Interface	Connect to the power supply and use micro USB cable to connect. Only power supply function is provided
④ Touch Interface	Transmit touch signal, connect with micro USB cable, provide touch and power supply function, commonly used to connect Raspberry Pi
⑤ 3.5mm Audio Interface	Output audio signal, connect audio output device, such as headphones
⑥ Backlight Adjustment Button	Adjust the backlight brightness of the display screen. With each click, the backlight brightness increases by 10, the maximum increases to 100, and then starts from 0, Press and hold for 3 seconds to turn off the backlight
⑦ Cooling Fan Interface	Connect cooling fan
⑧ HDMI Interface	Input HDMI signal, connect with HDMI adapter, only used to connect to the Raspberry Pi, The maximum supported resolution is 1024x600

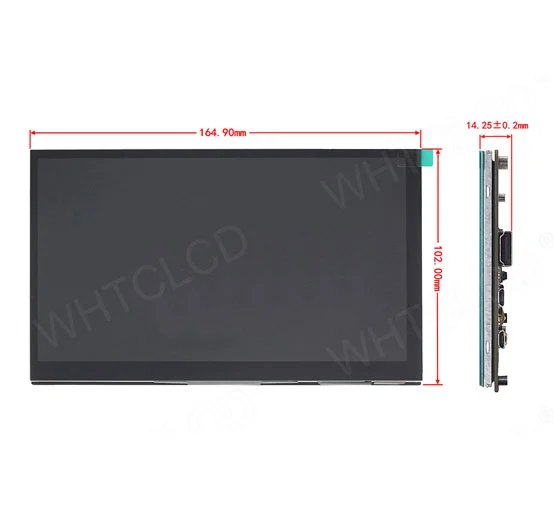

Product Size of 7 Raspberry Pi HDMI LCD Display(speaker-CTP)

stm32f1 development board
