MSP1443 1.44 Inch SPI Disaply LCD Module

Name: MSP1443 1.44 Inch SPI Disaply LCD Module
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

1.44-inch color screen, support 65K color display, display rich colors. 128X128 resolution, clear display. Using the SPI serial bus, it only takes a few IOs to illuminate the display. Easy to expand the experiment with SD card slot. Provide a rich sample program. Military-grade process standards, long-term stable work. Provide underlying driver technical support.

Products

Parameters of 1.44 Inch SPI Disaply LCD Module

Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
1.44	128*128	MSP1443	TN	SPI	29.743.366	26.2*27.2	NC	NC	5V/3.3V	-20~60°C

Name	Parameter
Display Color	RGB 65K color
SKU	MSP1443
Screen Size	1.44(inch)
Type	TFT
Driver IC	ST7735S
Resolution	128*128 (Pixel)
Module Interface	4-wire SPI interface
Active Area (AA area)	26.2x27.2(mm)
Module PCB Size	29.7x43.36(mm)
Operating Temperature	-20℃~60℃
Storage Temperature	-30℃~70℃
VCC power voltage	3.3V~5V
Logic IO port voltage	3.3V(TTL)
Power Consumption	TBD
Rough Weight(Package containing)	12 (g)

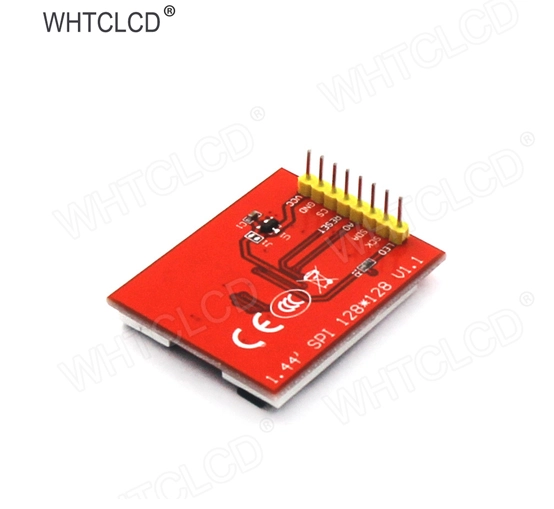

Hardware Description of 1.44 Inch SPI Disaply LCD Module

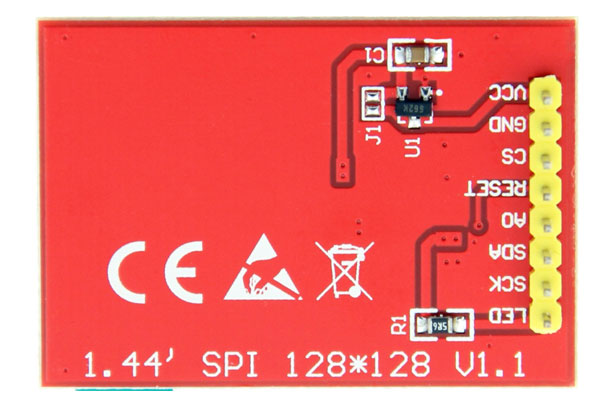

arduino nano to lcd display

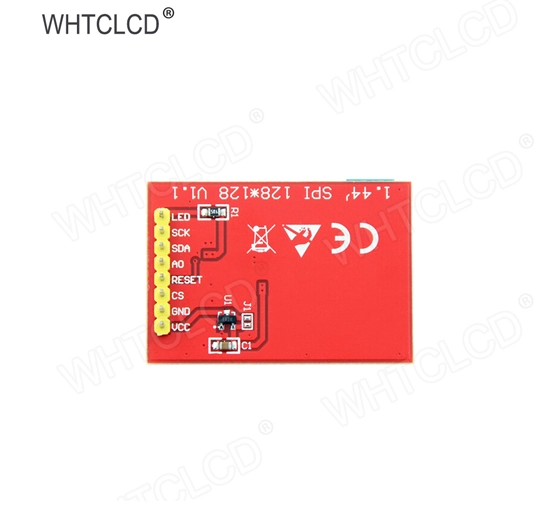

Number	Pin Label	Description
1	VCC	5V/3.3V power input
2	GND	Ground
3	CS	LCD chip select signal, low level enable
4	RESET	LCD reset signal, low level reset
5	A0	LCD register/data selection signal, high level: register, low level: data
6	SDA	SPI bus write data signal
7	SCK	SPI bus clock signal
8	LED	Backlight control, high level lighting, if not controlled, connect 3.3V always bright

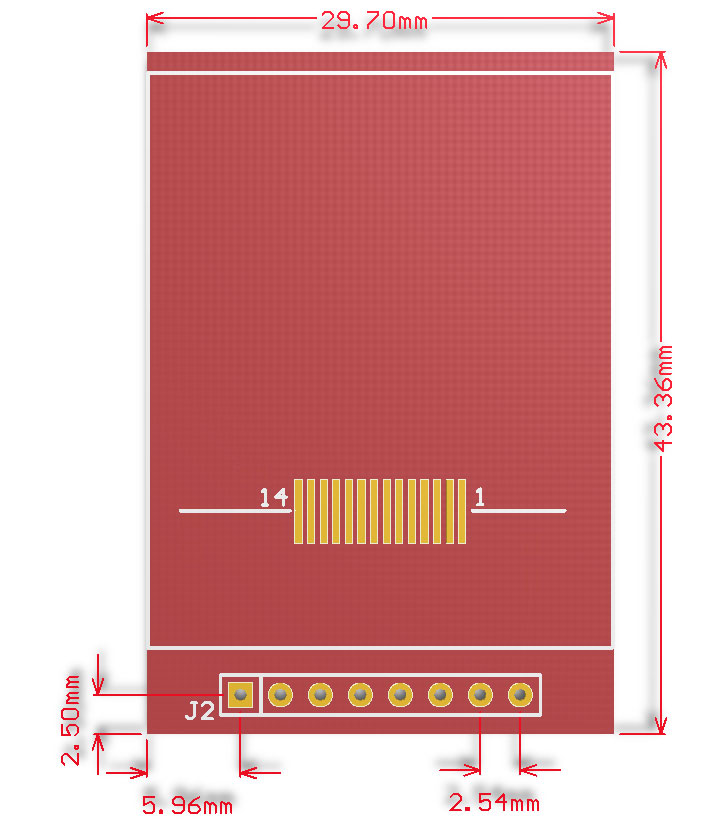

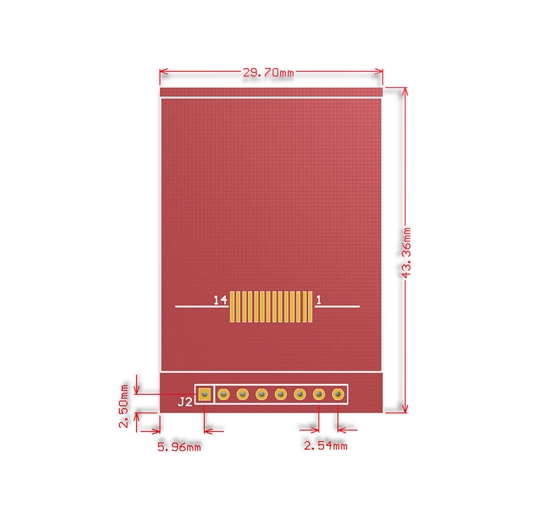

Product Size of 1.44 Inch SPI Disaply LCD Module

arduino nano with lcd display
