MC096 0.96 Inch IIC Oled Display Module

Name: MC096 0.96 Inch IIC Oled Display Module
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

High resolution: 128x64 (have the same resolution as 12864, high PPI). Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor). Ultra-low power consumption: it's 0.06w in normal condition(far less than TFT display). Wide voltage supply (3V~5V), 3.3V and 5V level logic compatible, no level shifter IC. IIC interface and only requires 2 IOs to light up easily. The range of working temperature is industrial (-20°C~70°C). Military-grade process standards, long-term work steadily. Provide rich multi-platform routines and the technology support of underlying driver. Have three color display schemes of yellow and blue,white,blue to choose from.

Products

Parameters of 0.96 Inch IIC Oled Display Module

Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
0.96	128*64	MC096	IPS	IIC interface	27.327.86	21.744*10.864	NC	CN	5V/3.3V	-20~60°C

name	color category
display color	white	blue	Blue and yellow
SKU	MC096VW	MC096VB	MC096VY
size	0.96(inch)
type	OLED
OLED driver chip	SSD1306
resolution	128*64 (Pixel)
Module interface	IIC，4PIN
Effective display area	21.744x10.864(mm)
Module size	27.3x27.8(mm)
Field of View	>160°
Working temperature	-20℃~60℃
storage temperature	-30℃~70℃
Working voltage	3.3V / 5V
power dissipation	TBD
product weight(Package containing)	8(g)

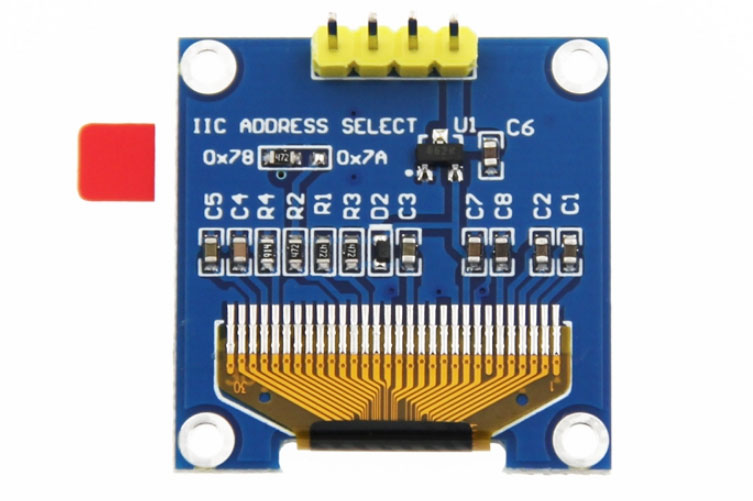

Hardware Description of 0.96 Inch IIC Oled Display Module

lcd touch screen price

PIN	label	Pin description
1	VCC	OLED positive pole of power(3.3V~5V)
2	GND	OLED GND of power
3	SCL	OLED clock signal of IIC bus
4	SDA	OLED data signal of IIC bus

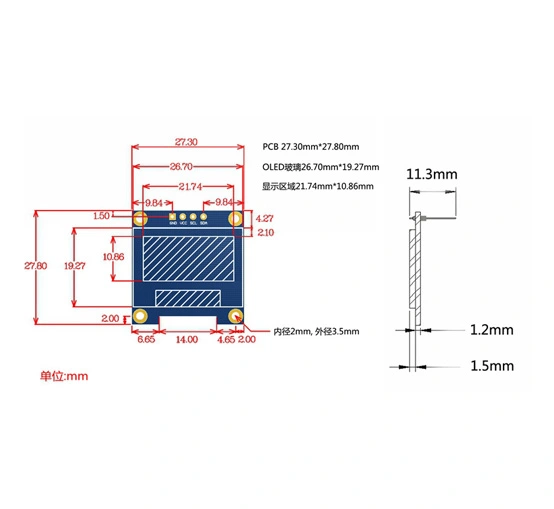

Product Size of 0.96 Inch IIC Oled Display Module

led touch screen
