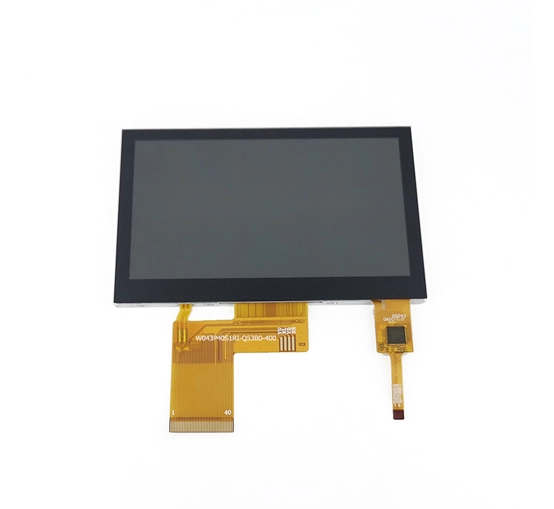

W043P40S1RI-Q53B0 4.3 Inch Sunlight Readable LCD Display

W043P40S1RI is a transmissive type color active matrix liquid crystal display this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 95.04*53.86 and the native resolution is 480*272 and can display up to 262K/16.7M colors, Applications: wire tester, sphygmomanometer, ECG machine, Robots,Handheld devices, Automotive instrument, recorder and industrial display.

Products

Parameters of 4.3 Inch Sunlight Readable LCD Display

Size(inch)ResolutionModelLCM Dimension(mm)Active Area(mm)ViewInterfaceBrightness(nits)OP(℃)
4.3480*272W043P40S1RI-Q53B0105.5*67.2*395.04*53.86IPSRGB260~1500-20~70°C


General Specifications of 4.3 Inch Sunlight Readable LCD Display

W043P40S1RI-Q53B0

FeatureSpecificationsUnit
Size4.3inch
Technology Typea-si TFT
Resolution480(RGB)x272
Pixel pitch0.1095(H)*0.1095(V)mm
Pixel arrangementRGB-stripe
Color Depth65K/262K/16.7M
Display ModeTFT,Transmissive,Normally black
Driver ICNV3052
Surface Treatment`
Viewing DirectionIPS
Gray Viewing Direction`

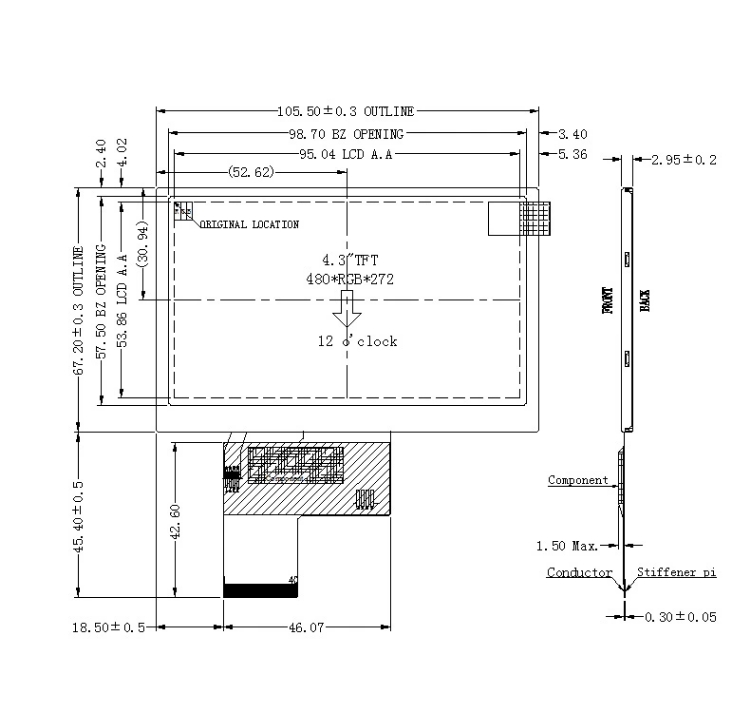

LCM (W x H x D) (mm)105.5(W)×67.2(H)×3(D) mmmm
Active Area(mm)95.04(W)×53.86(H) mmmm
Touch PanelSupport  CTP/RTP
Brightness300-1500nits
Weight (g)16g
InterfaceRGB  FPC 40pin
Operation Temperature-20~70℃
Storage Temperature-30~85℃
Module lifetime(Hours)50,000-100,000℃


4.3 Inch Sunlight Readable LCD Display
