W043P40S1RI-Q53B0 4.3 Inch IPS TFT LCD

Name: W043P40S1RI-Q53B0 4.3 Inch IPS TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

4.3 Inch IPS TFT LCD is a transmissive type color active matrix liquid crystal display this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 95.04*53.86 and the native resolution is 480*272 and can display up to 262K/16.7M colors, Applications: wire tester, sphygmomanometer, ECG machine, Robots,Handheld devices, Automotive instrument, recorder and industrial display.

Products

Parameters of 4.3 Inch IPS TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
4.3	480*272	W043P40S1RI-Q53B0	105.567.23	95.04*53.86	IPS	RGB	260~1500	-20~70°C

General Specifications of 4.3 Inch IPS TFT LCD

W043P40S1RI-Q53B0

Feature	Specifications	Unit
Size	4.3	inch
Technology Type	a-si TFT
Resolution	480(RGB)x272
Pixel pitch	0.1095(H)*0.1095(V)	mm
Pixel arrangement	RGB-stripe
Color Depth	65K/262K/16.7M
Display Mode	TFT,Transmissive,Normally black
Driver IC	NV3052
Surface Treatment	`
Viewing Direction	IPS
Gray Viewing Direction	`
LCM (W x H x D) (mm)	105.5(W)×67.2(H)×3(D) mm	mm
Active Area(mm)	95.04(W)×53.86(H) mm	mm
Touch Panel	Support CTP/RTP
Brightness	300-1500	nits
Weight (g)	16	g
Interface	RGB FPC 40pin
Operation Temperature	-20~70	℃
Storage Temperature	-30~85	℃
Module lifetime(Hours)	50,000-100,000	℃

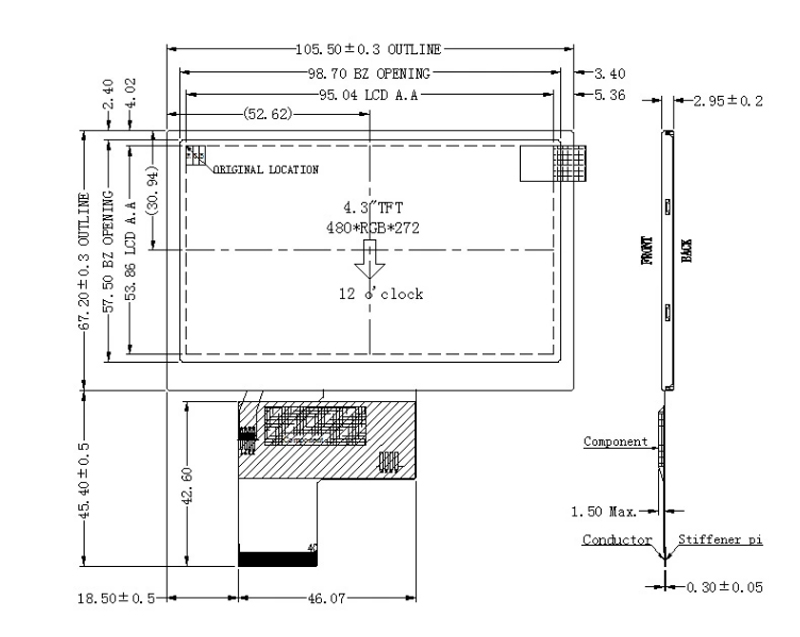

Structural Size of 4.3 Inch IPS TFT LCD

W043P40S1RI-Q53B0

4.3 Inch IPS TFT LCD
