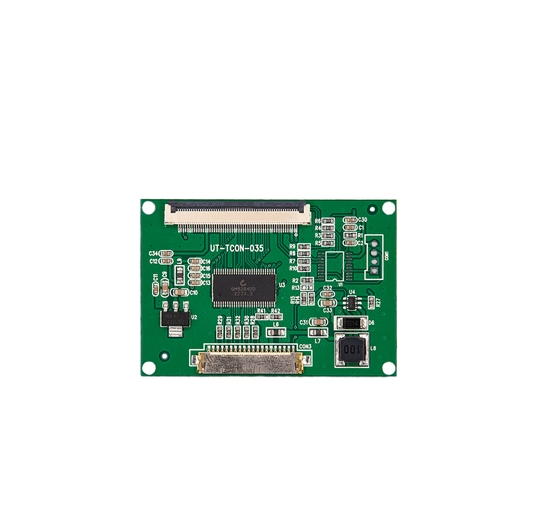

UT-TCON-035 RGB TTL LCD Controller Board

Parameters of UT-TCON-035 RGB TTL LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
17	UT-TCON-035	LVDS to RGB 54pin	RGB TTL 54pin	NO	3.3 / 5V

General Specifications of UT-TCON-035 RGB TTL LCD Controller Board

Model: UT-TCON-035 54pin

LVDS to RGB

1 LVDS input to RGB 540pin

2 Single 6-bit LVDS signal to 54p-RGB signal driving TFT LCD screen(The LVDS outout resolution of the motherboard needs to be set according to the driver screen resolution)

3 Equipped with LCD backlight driver circuit

Applied to industrial control motherboard LVDS signals without LED backlight driver and screen VGL and VGH circuit supplementation, the board structure is compact and easy to operate. (The resolution of the motherboard LVDS output with a single 6 bits (18 bits) needs to be set according to the resolution of the driver screen)

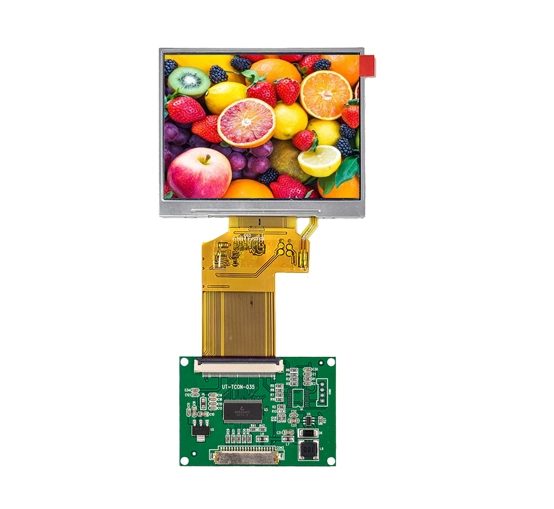

A screen that can be driven

3.5 inch 320*240; 640*480

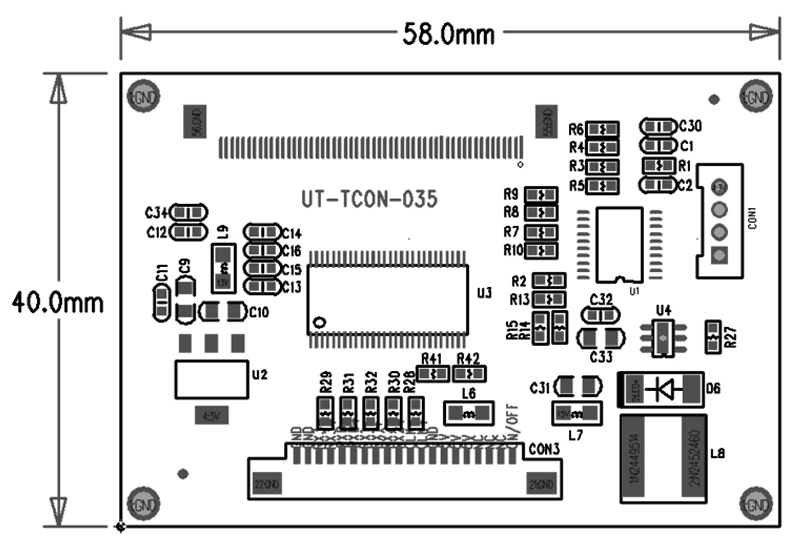

Structural Size of UT-TCON-035 RGB TTL LCD Controller Board

UT-TCON-035 RGB TTL LCD Controller Board
