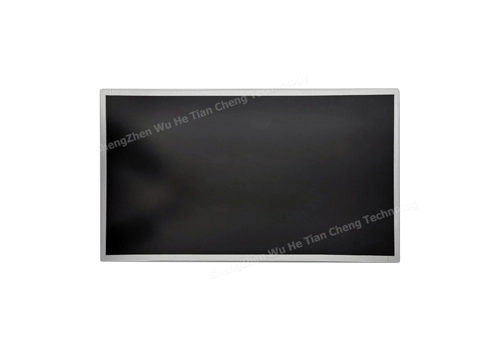

G104ACJ-L01 10.4 Inch INNOLUX LCD Panel

Name: G104ACJ-L01 10.4 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 10.4 inch TFT LCD IPS Panel G104ACJ-L01 with 960(RGB)x1280 Quad-VGA resolution, brightness 900 cd/m², LVDS Interface 50 pins. This lcd display is working temperature is -40 ~ +85 (°C) and its storage temperature is -40 ~ +90 (°C). Based on its white LED backlight.This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G104ACJ-L01 10.4 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
10.4	960*1280	G104ACJ-L01	225.5176.58.7	210.4*157.8	IPS	LVDS	900	-30~85°C

General Specifications of G104ACJ-L01 10.4 Inch INNOLUX LCD Panel

G104ACJ-L01

Manufacturer	INNOLUX
Model Name	G104ACJ-L01
Screen Size	10.4 inch
Pixel Number	960(RGB)×1280 , Quad-VGA
Active Area(mm)	158.4 x 211.2 (H×V)
Outline(mm）	173.4 x 228.7 x 13.77 (H×V×D)
Pixel Pitch(mm)	0.165 x 0.165 (H×V)
Treatment	Hard coating (3H), Anti-Glare
Luminance	900 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85(CR≥10) Left / Right/UP /Down
Response time	13/12 (Typ.)(Tr/Td) ms
Display Mode	AAS , Normally BLACK, Transmissive
Color Depth	262K/16.7M , 50% NTSC
Backlight	WLED, 50K hours, without Driver
Net Weight	470g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 8-bit) , 50 pins
Voltage Supply	+3.3V
Max. Ratings	Storage Temp.: -40 ~ +90 (°C)
Max. Ratings	Operating Temp.: -40 ~ +85 (°C)
Package	Innolux Original package;
Package	18 pcs/ctn
