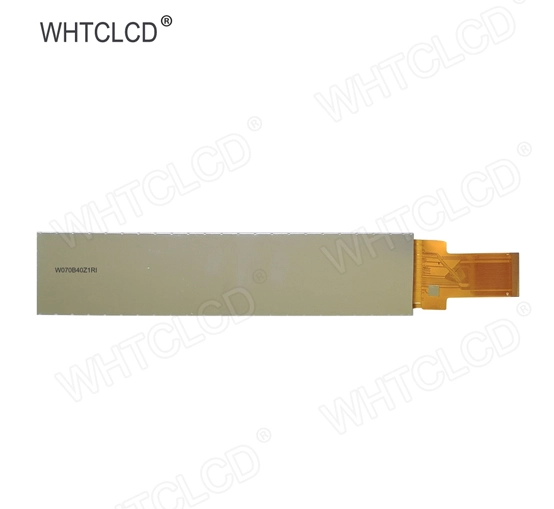

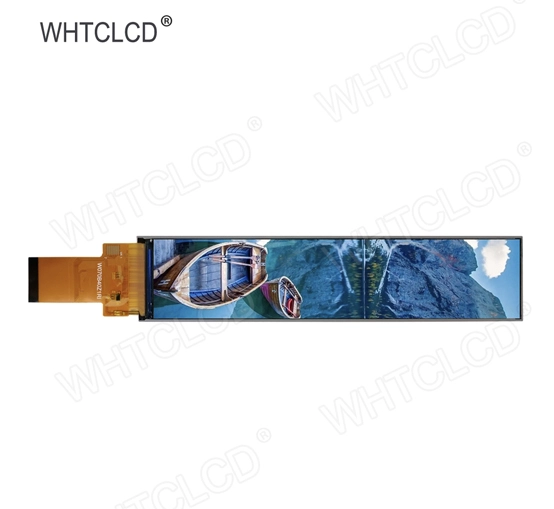

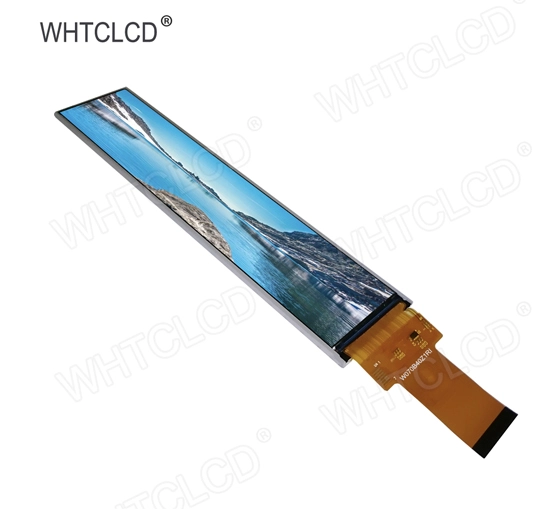

W070B40Z1RI-Z03B0 7 Inch Bar TFT LCD Display

Parameters of 7 Inch Bar TFT LCD Display

Size (inch)	Resolution	Model	LCM Dimension (mm)	Active Area (mm)	View	Interface	Brightness (nits)	OP(℃)
7	280*1424	W070B40Z1RI-Z03B0 (Bar)	38.2181.473.45	33.6*170.88	IPS	RGB	300	-20~70°C

Feature and Specifications of 7 Inch Bar TFT LCD Display

W070B40Z1RI-Z03B0

Feature		Spec
Characteristics	Size	7.0 inch
	Resolution	280(horizontal)*1424(Vertical)
	Interface	MIPI
	Connect type	Connector
	Color Depth	16.7M
	Technology type	a-Si
	Pixel pitch (mm)	0.12x0.12
	Pixel Configuration	R.G.B.Vertical Stripe
	Display Mode	Normally Black
	LCD Driver IC
	Viewing Direction	ALL
	Gray Scale Inversion Direction	ALL

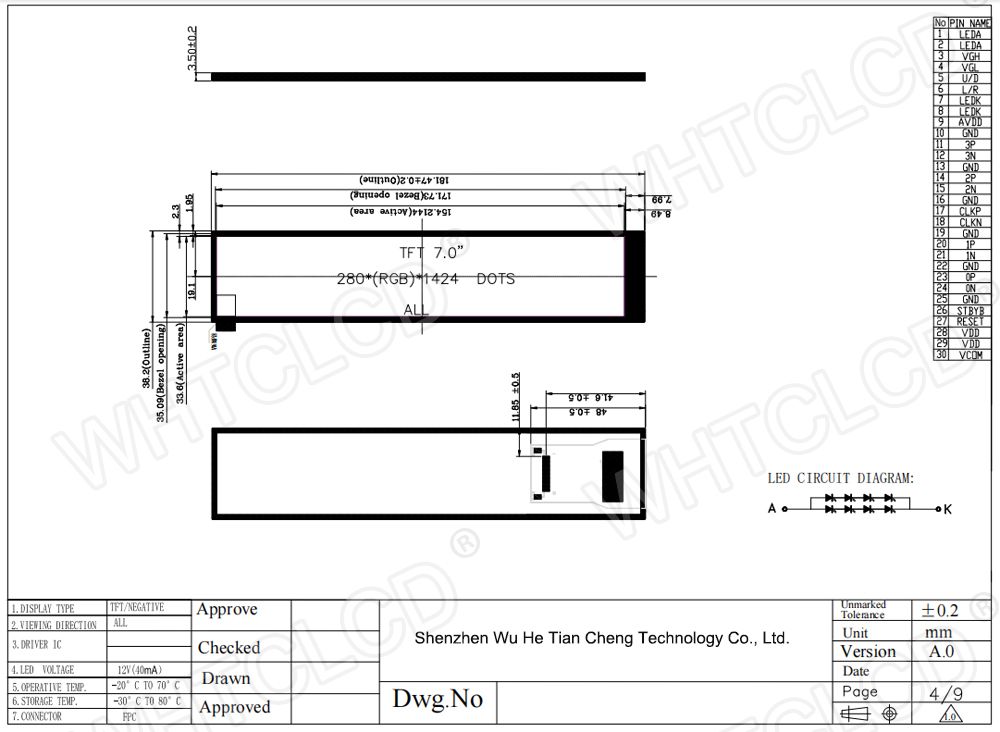

Mechanical	LCM (WxHxD)(mm)	38.20181.473.5
	Active Area(mm)	33.6x170.88
	With MWithout TSP	Without TSP
	Weight (g)	TBD
	LED Numbers	8 LED

No.	Symbol	Description
1-2	LEDA	back light power supply positive
3	VGH	Gete OFF Voltage
4	VGL	Gete OFF Voltage
5	U/D	Vertical inversion
6	L/R	Horizontal inversion
7-8	LEDK	back light power supply negative
9	AVDD	Power for Anglog Circuit
10	GND	Ground
11	3P	Mipi Data input
12	3N	Mipi Data input
13	GND	Ground
14	2P	Mipi Data input
15	2N	Mipi Data input
16	GND	Ground
17	CLKP	Mipi Data input
18	CLKN	Mipi Data input
19	GND	Ground
20	1P	Mipi Data input
21	1N	Mipi Data input
22	GND	Ground
23	0P	Mipi Data input
24	0N	Mipi Data input
25	GND	Ground
26	STBYB	Ting controller
27	RESET	Global reset pin
28-29	VDD	Power ground
30	VCOM	Common Volttage

tft bar
